4. Setting the Laser Light Output Schedule
109
ML-5120A
Chapter 2 Various Settings
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes
Setting the Active Heat Control Function (Option)
The method of setting the active heat control function after displaying the AC-
TIVE HEAT CONTROL screen is explained below.
⇒
For powersharings, the active heat control can be performed for only one deliv-
ery.
1
Setting the Active Heat Control Function

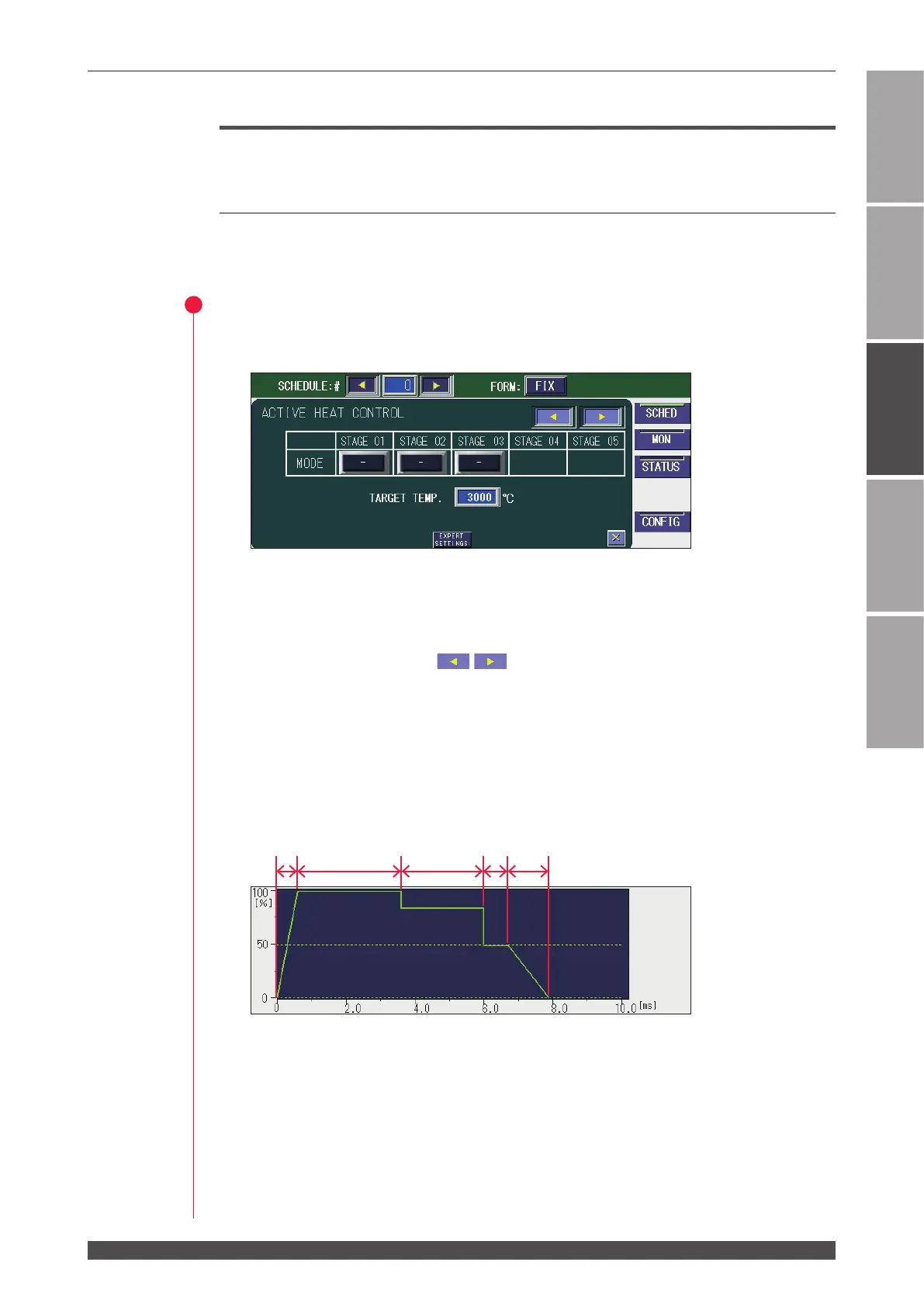

(1) Press the “HEAT” button to display the ACTIVE HEAT CONTROL screen.
(2) Press the "MODE" setting button of "STAGE 01" to "STAGE 02" to set the control
method of each stage of waveform.
⇒
According the number of stages of the set waveform, the “MODE” setting buttons
are displayed. When the
button of STAGE is pressed, the STAGE dis-
play column is scrolled to the right and left so as to display a STAGE that is not
yet displayed.
STAGE
For the waveform set on the SCHEDULE screen, a line representing the time is de-
ned as a stage (STAGE 01, STAGE 02, and so on).
In the FLEX or CW mode, stages are divided when the laser output time is set in dif-
ferent POINT even if the line is at.
In the setting shown below, the laser output value does not change until 4.0 s, but the
time from 0 to 2.0 s falls on STAGE 01 and the time from 2.1 to 4.0 s falls on STAGE
02 since 2.0 s is set in POINT 02.
STAGE 01 02 03 04 05
To Next Page
