ML-5120A
3. Connector Functions
Example Connections of External Input/Output Signals

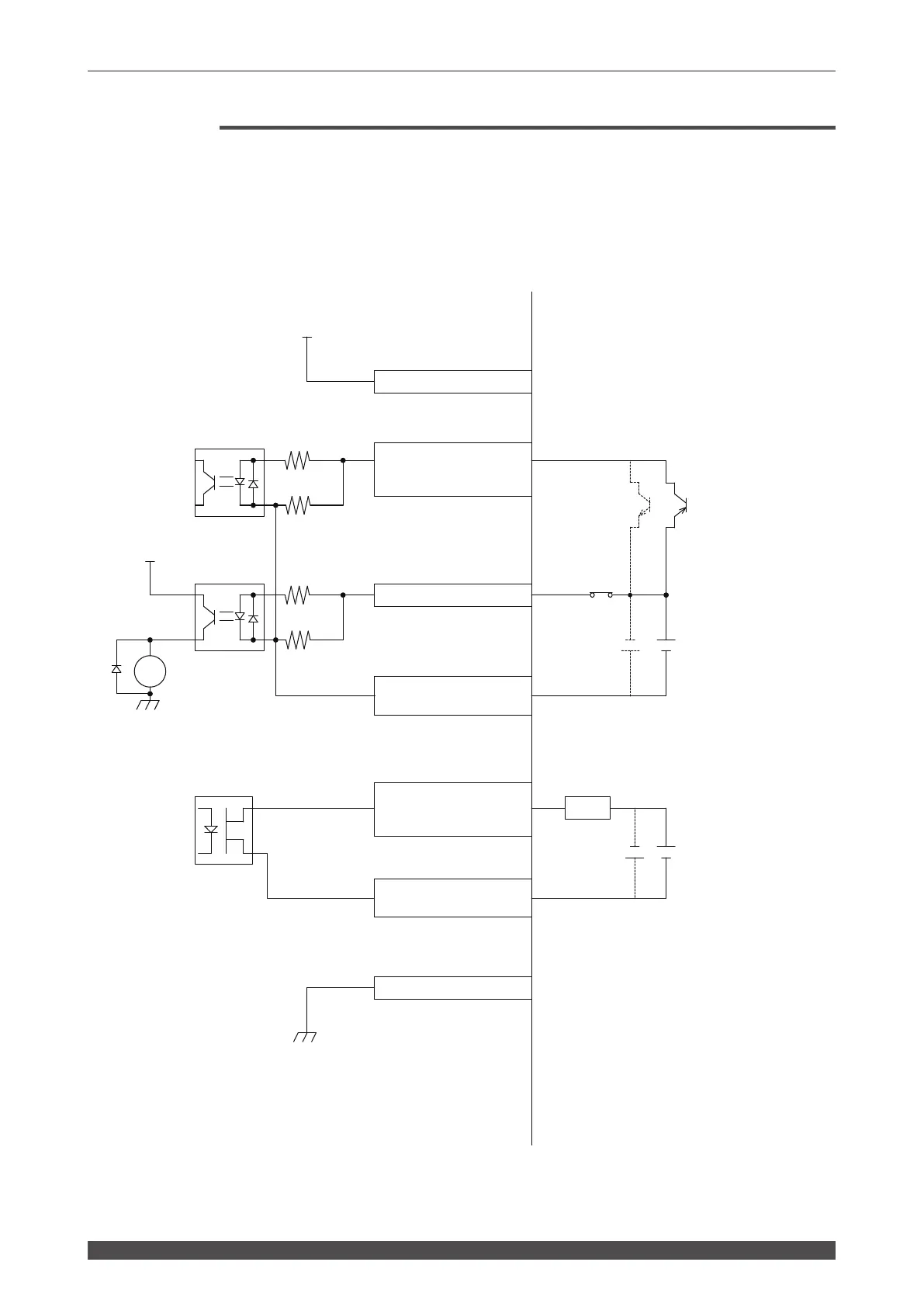

An example of external input/output signal connections is explained below.
When Connected to an External Power Source
*2
*2 The polarity may be
positive or negative.
*1
*1
Normally closed
for
Laser Stop
Inside of the laser
10k
10k
TLP180
TLP197G
24V
EXT 0V
24V DC
RY
EXT. I/O(1): 2 to 6, 25
EXT. I/O(2): 15, 27 to 34
EXT. I/O(1): 11, 13 to 17,
20, 22, 23
EXT. I/O(2): 2, 7, 12
EXT. I/O(1): 21
EXT. I/O(2): 14
EXT. I/O(1): 1
EXT. I/O(1): 9
EXT. I/O(1): 19
EXT. I/O(1): 10
EXT. I/O(2): 35
4.7k
4.7k
TLP180
EXT +24V
Input circuit
Output circuit
24V DC
Output COM
Input COM
Emergency
stop
Load
*2
NPN
PNP
