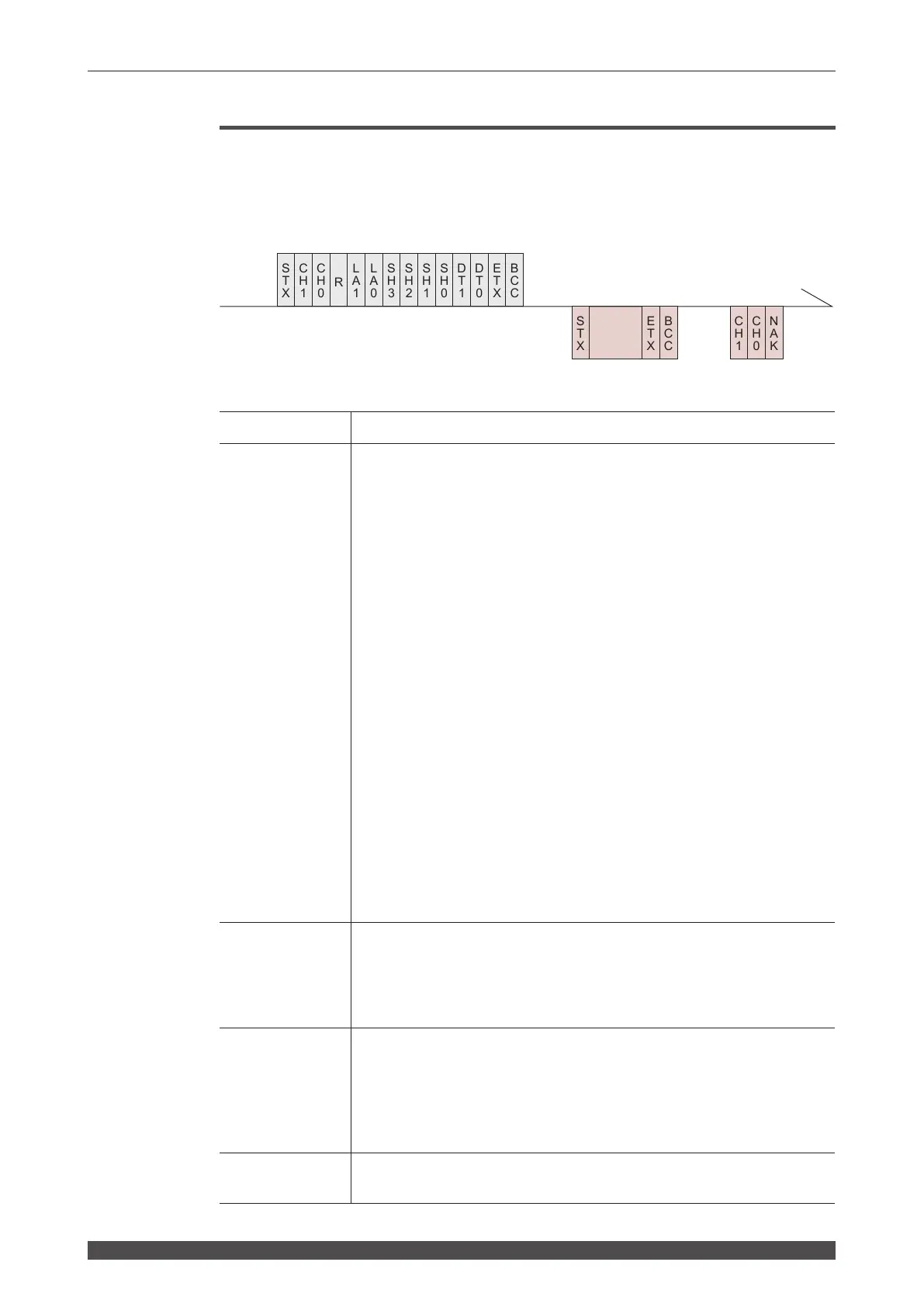

4. Commands
Reading Data
The command (code: R) to read the set values and monitor values of process-
ing schedules by specifying equipment No. and schedule No. is explained be-
low.
CH1/CH0 Equipment No. (CH1 = tens digit, CH0 = units digit)
LA1/LA0
Classication No. of the setting (LA1 = tens digit, LA0 = units digit)
84 Schedule settings for FIX and FLEX
85 Schedule settings for FIX
86 Schedule settings for FLEX, TIME 01 to 10
87 Schedule settings for FLEX, TIME 11 to 20
88 Schedule settings for FLEX, POWER 01 to 10
89 Schedule settings for FLEX, POWER 11 to 20
66 Schedule settings for CW, TIME 01 to 10
67 Schedule settings for CW, TIME 11 to 20
68 Schedule settings for CW, POWER 01 to 10
69 Schedule settings for CW, POWER 11 to 20
75 SEAM setting value SEAM ON/OFF
76 SEAM setting value SHOT 01 to 10
77 SEAM setting value SHOT 11 to 20
78 SEAM setting value POWER 01 to 10
79 SEAM setting value POWER 11 to 20
64 Modulation function ON/OFF
65 Modulation function settings
51 Laser output total time
40 Backup memory settings
95 Laser power monitor — Shot count, Good count, average
00 Laser power monitor — Energy, number of waveform data, etc.
01 Laser power monitor — Waveform data 000 to 004
: :
20 Laser power monitor — Waveform data 095 to 099
SH3/SH2/SH1/SH0
Schedule No. (SH3 = thousands digit, SH2 = hundreds digit, SH1 = tens
digit, SH0 = units digit)
Enter the No. of the schedule you want to read within the data range of 0000
to 0255.
If □□□□ (spaces) are entered, the currently selected schedule is used.
DT1/DT0
Data No. (DT1 = tens digit, DT0 = units digit)
• For detailed information on the data No., see “Set Value/Monitor Value
Table” on page 161.
• If “99” is entered, data is read in a batch.
data: (Data No.1), (Data No.2), (Data No.3), … (the last Data No.)
Insert [,] between individual data.
ACK or NAK
The Laser returns a [NAK] if the classication No., schedule No., or data No.
falls outside the specied range.
...
data
data
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
Personal computer, etc.
Laser
1
2
3
4
5
W
STX CH1 CH0
W
STX CH1 CH0
W
STX CH1 CH0
R
STX CH1 CH0
R
STX CH1 CH0
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
ETX BCC
STX
STX
S
M
S
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
ACK NAK
Or
CH1 CH0 CH1 CH0
NAK
Or
CH1 CH0 ETX BCC
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon rdy
SH3 SH2 SH1 SH0 cnt s
1
s
2
s
3
s
4
s
5
s
6
s
7
s
8
s
9
mon
SH3 SH2 SH1 SH0
SH3 SH2 SH1 SH0 LA1 LA0 DT1 DT0
LA1 LA0 DT1 DT0
m
1
m
2
m
3
m
4
m
5
CH1 CH0
