4. Setting the Laser Light Output Schedule
107
ML-5120A
Chapter 2 Various Settings
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes

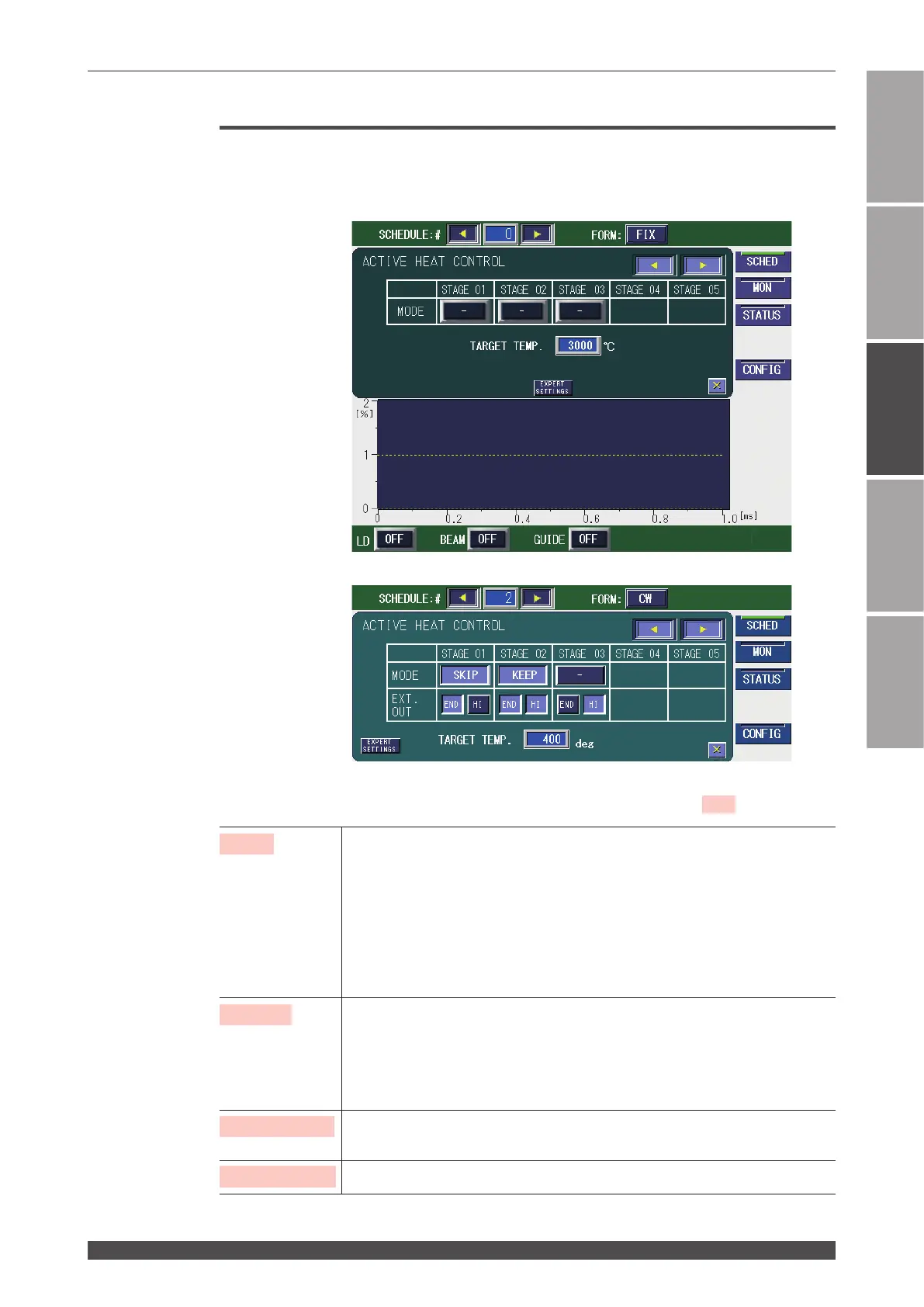

ACTIVE HEAT CONTROL Screen
On the ACTIVE HEAT CONTROL screen, the active heat control function (option) is
set. The active heat control function detects the temperature of the processing part
and stops laser when it exceeds the target temperature.
Standard
AHC external I/O
(option)
How to see the displayed items
: Settable item
MODE
Sets the control method for each stage of waveform. Can be selected from
following three types.
-:
The active heat control is not performed. Laser is output with the set
TIME and POWER.
SKIP:
Proceeds to the next stage when the temperature reaches the target
temperature.
KEEP:
Laser is turned on and o with the target temperature.
Switched each time the button is pressed. Can be set for each schedule.
EXT.OUT
END:
When this button is selected, the stage end signal is output at the end
of the stage. This output time is specied in the [STAGE-END SIGNAL
WIDTH] on the HEAT DETECTOR SETTING screen.
HI:
When this button is selected, the ALM1 signal of the heat detector is
output.
TARGET TEMP.
Sets the target temperature for the SKIP or KEEP control in the rated range of
the heat detector. Can be set for each schedule.
EXPERT SETTING
Displays the detailed setting screen for active heat control function.
To Next Page
