ML-5120A
2. Fixing the Laser Equipment

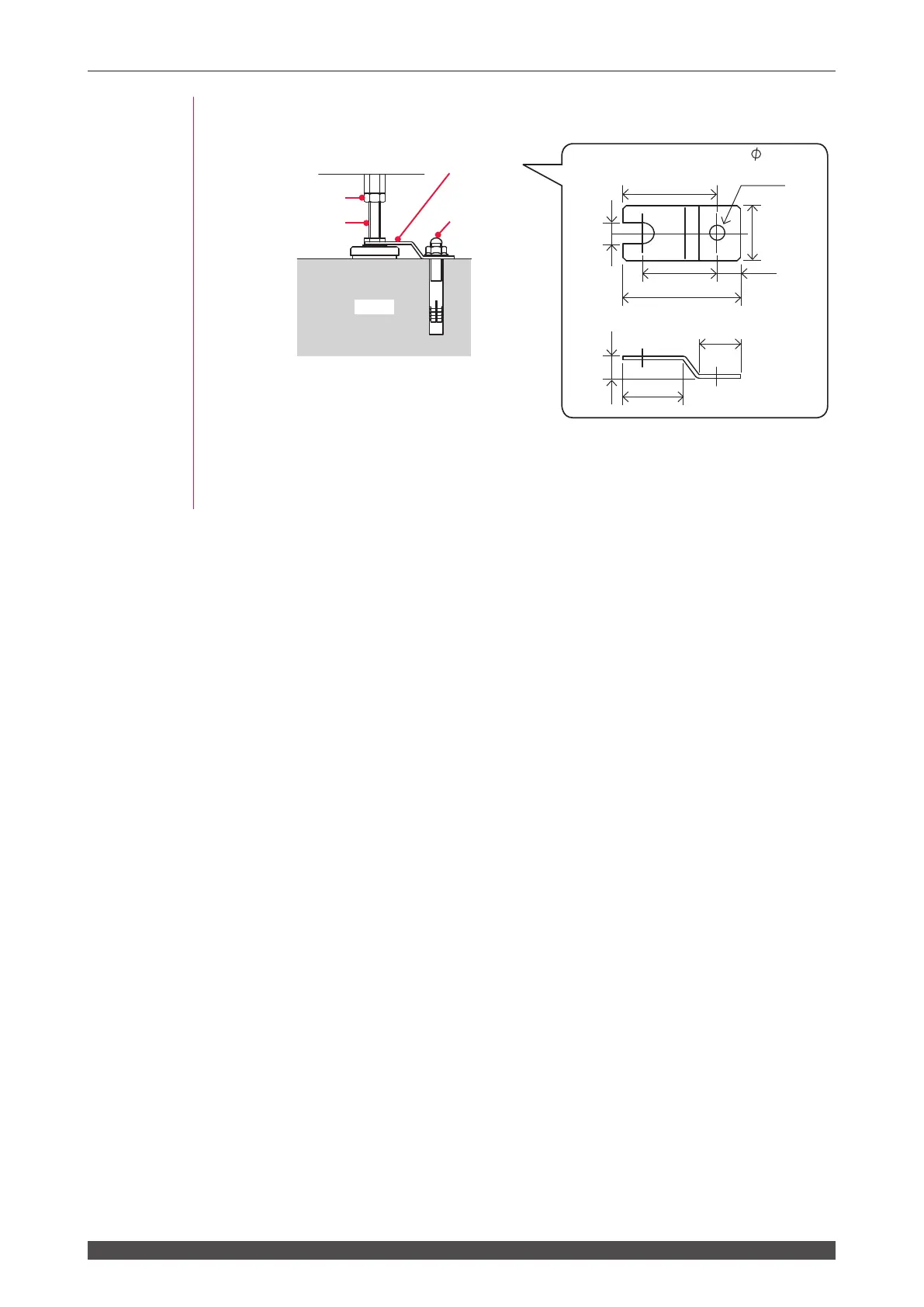

(2) Fix each adjuster on the oor by using a connecting apparatus such as anchor.
⇒
The connecting apparatus is not attached as an accessory. Prepare it on the
customer side.
(74.5)
59
94
19.5
50
19
33
48
20
14
(Fixing hole to oor)
Lock nut
Adjuster
Adjuster
pressure
xtures
Fix on oor
using anchor
bolt
Floor
