4. Programming
4
Setting Output Schedules (SCH.#01)
(1) Set the SCHEDULE number by combining pin No.27 to pin No.34 of the EXT. I/O
(2) connector. In this example, pin No.27 of the EXT. I/O (2) connector is put in a
closed circuit for 16 ms or more to set SCH.#01.
⇒
At delivery, the signal acceptance time (time from a signal input till establishment
of schedules) of processing schedules is set to 16 ms. Set the close circuit time
referring to this value. As the signal acceptance time, 0.1 ms, 1 ms, 2 ms, 4 ms,
8 ms, or 16 ms can be selected by displaying the CONFIG screen. For details,
refer to Chapter 2 "7. Changing the Acceptance Time for Laser Start Signal/
Schedule Signal" on page 121.
When the laser can be output and a valid schedule is selected, pin No.13 of the
EXT. I/O (1) connector is put in a closed circuit and the signal (Ready) is returned
from the laser after 1 seconds maximum.
5
Outputting Laser Light
(1) Put pin No.2 (Laser Start) of the EXT. I/O (1) connector in a closed circuit.
Laser light is output from Beam 1.
Pin No.22 (End output) of the EXT. I/O (1) connector is put in a closed circuit for
20 ms and a signal is returned from the laser. Pin No.17 (Monitor normal out-
put) or pin No.20 (Monitor trouble output) of the EXT. I/O (1) connector is put in a
closed circuit for 20 ms and a signal is returned from the laser.

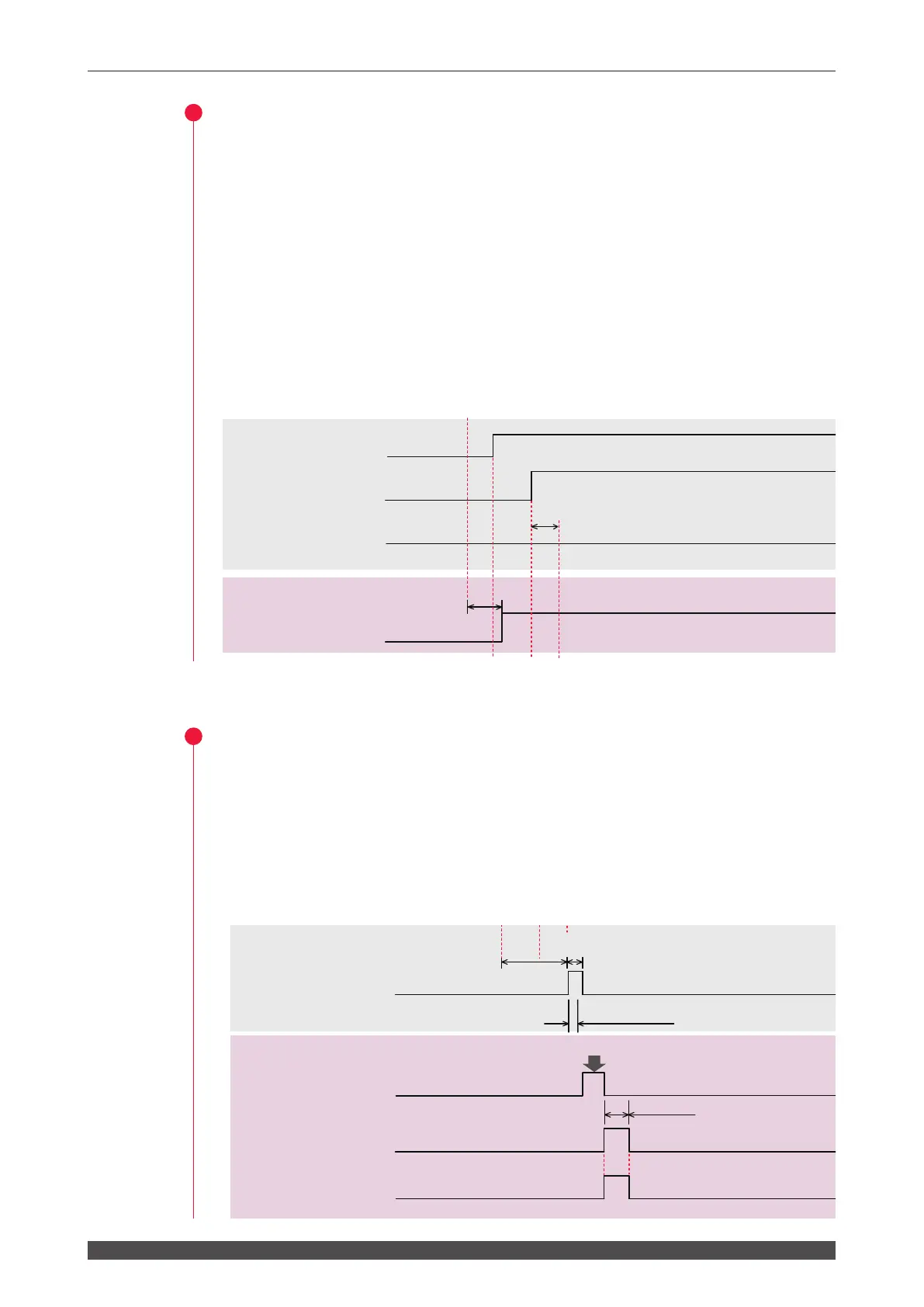

ON
OFF
ON
OFF
ON
OFF
1 sec. max.
Over the time set on the CONFIG screen
Ready output
SCHEDULE 1
input
SCHEDULE 2
input
Shutter open
input
↓
↓ ↓
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
(Laser light)
End output
Control switching
input
Ready output
SCHEDULE 1
input
SCHEDULE 2
input
BEAM SELECT 1
input
BEAM SELECT 2
input
Laser start input
HV-ON
OFF input
External input
acceptable input
Laser output
End output
SCHEDULE 1
input
SCHEDULE 2
input
Laser start input
Monitor normal/
trouble output
Monitor normal/
trouble output
Over the time set on the CONFIG screen
50ms
40ms or more
16.0ms or more
Output
Output
16.0ms or more
31 sec. max.
16.0ms or more
20ms or more
150ms or more
Over the time set on
the CONFIG screen
↓
↓ ↓
↓
