202
ML-5120A

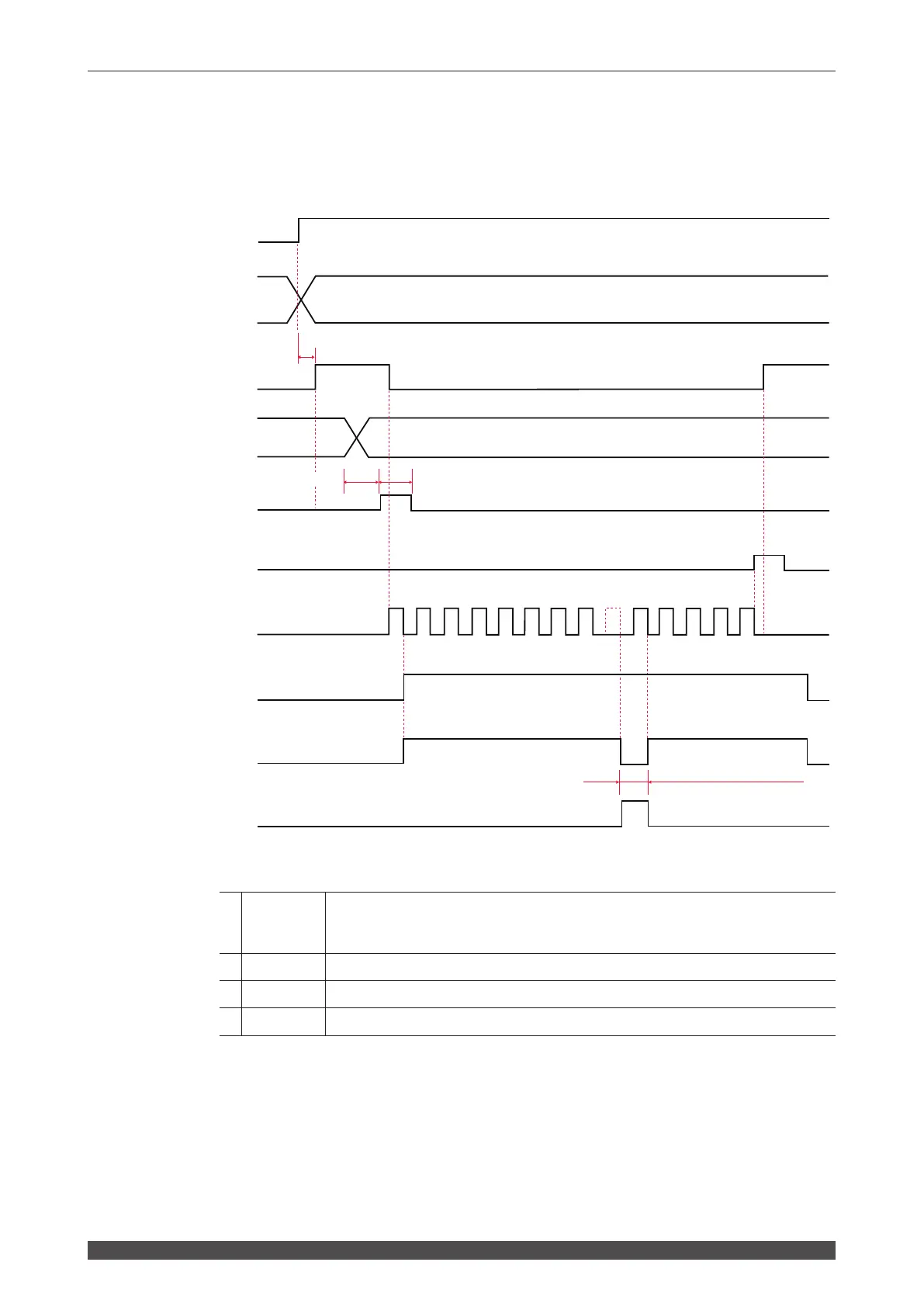

Timing Chart
Repeated operation (50 pps or more) (EXTERNAL CONTROL)
The following diagram shows the lapse of time in the case where laser is output ac-
cording to the number of repeated outputs of 50 pps or more.
*1
Output when the LD power supply is started. The laser is not turned ON. Repeat-
ing ON/OFF operation aects the lifetime of the electromagnetic contactor. Al-
ways turn this ON when in use.
*2 1s max. LD output preparation time
*3 150ms min. Shutter operation time
*4 1ms min. Monitor error output time. Minimum error output time for 1000 pps.
*3
(*: Operation on the user side)
150ms min.
1ms min. (1000pps) *4
LD PS Preparation
Output *1
Schedule 1 to 128
Input *
Ready Output
Shutter Open Input *
Laser Start Input *
Laser Stop Input *
(Laser light)
END Output
Monitor Normal Output
Monitor Trouble Output
1s max. *2
The time set on the CONFIG screen or more
To Next Page
