4. Product Composition
29
ML-5120A
Introduction Part
Installation and
Preparation Part
Operating Part Maintenance Part Appendixes

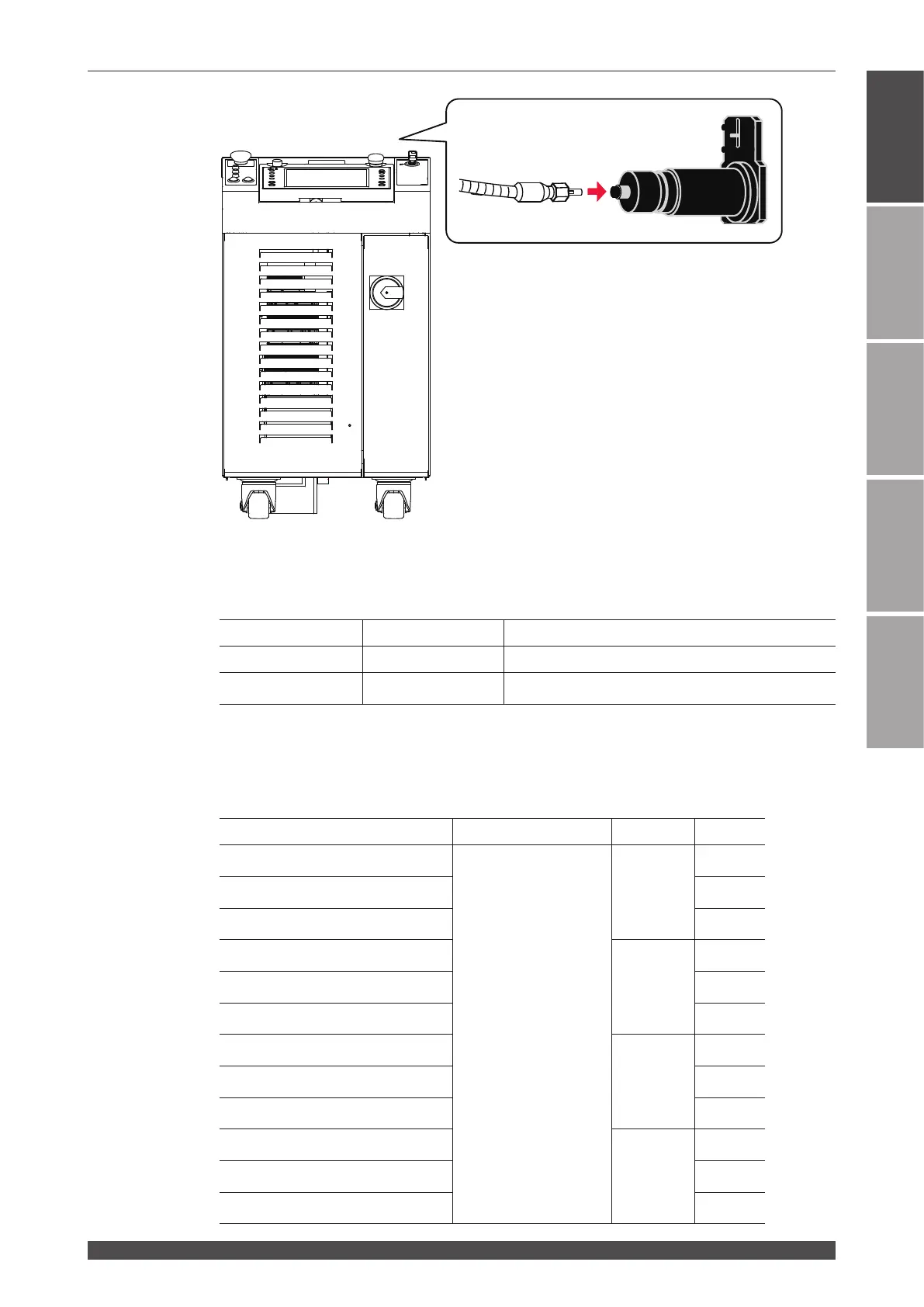

Chapter 1 Overview of the Direct Diode Laser
Main unit
Provided with a safety shutter with open-close sensor and beamsplitter(s) according
to the sharing specication.
Model Sharing method Specication
ML-5120A-010 Single delivery Output to a single ber
ML-5120A-020 2-powersharing Simultaneous output to 2 bers
Optical ber
Any optical fiber of the followings is connected to the main unit depending on the
specication that you selected at the time of purchase.
Model Part name Core dia. Length
ST200MT 5m
Optical ber
with connector
φ 0.2 mm
5 m
ST200MT 10m 10 m
ST200MT 20m 20 m (*1)
ST300MT 5m
φ 0.3 mm
5 m
ST300MT 10m 10 m
ST300MT 20m 20 m (*1)
ST400MT 5m
φ 0.4 mm
5 m
ST400MT 10m 10 m
ST400MT 20m 20 m (*1)
NLGS-1-S600/750-ND/ND-5.3
φ 0.6 mm
5 m
NLGS-1-S600/750-ND/ND-10.3 10 m
NLGS-1-S600/750-ND/ND-20.3 20 m (*1)
Optical ber
Output unit
Main unit
To Next Page
