4-4
387366-389 Operator Manual Operator Instructions
4.2.2 Printer Printer records all cycle data on 2-1/4" (57 mm) wide paper.
The following is an example of a typical in-cycle printout in the
condensed print format (see F
IGURE 4-5).

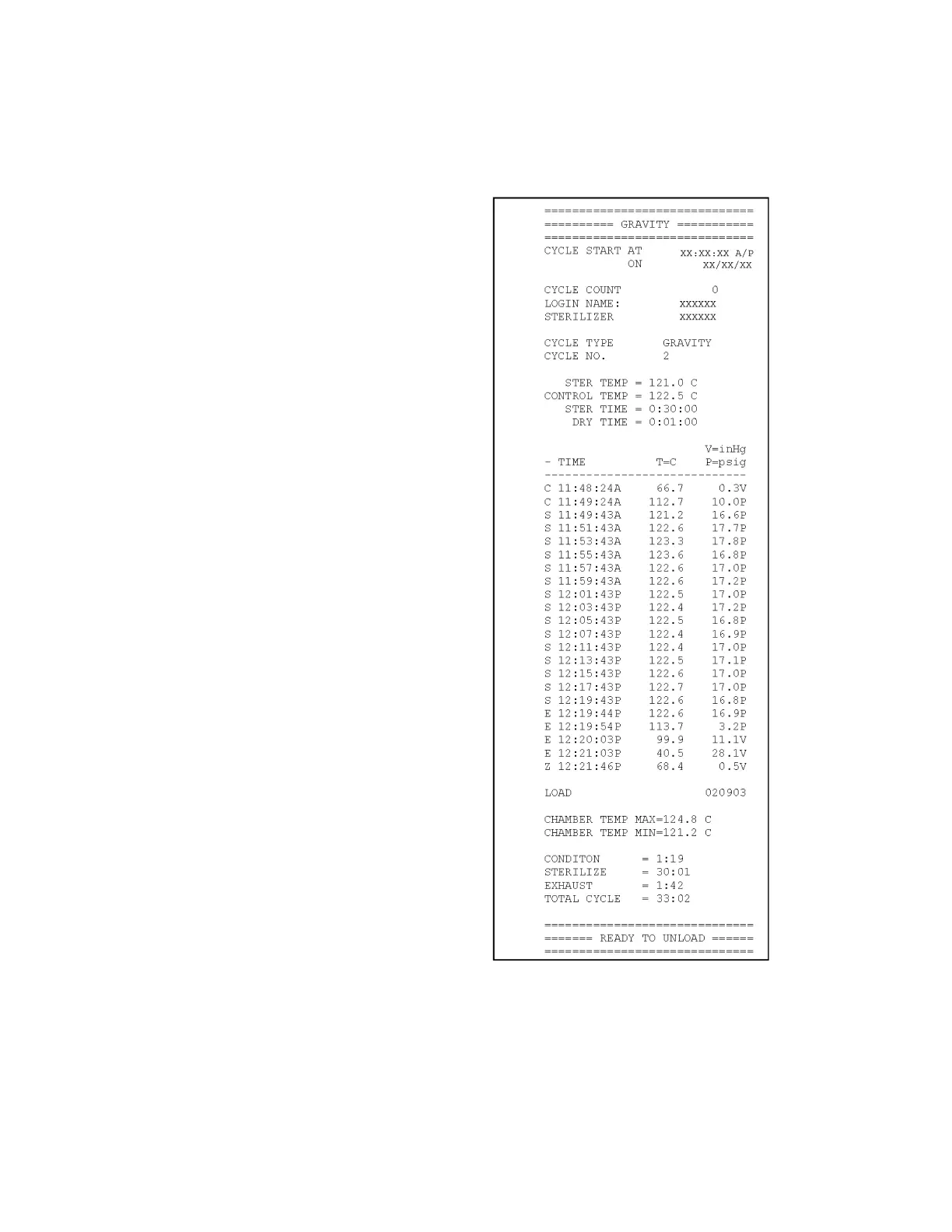

Figure 4-5. Printout
All printer functions are controlled using the touch screen. For details
on each function, refer to S
ECTION 5, CONTROL INTERFACE.
