Preliminary Technical Data UG-1828
Rev. PrC | Page 293 of 338

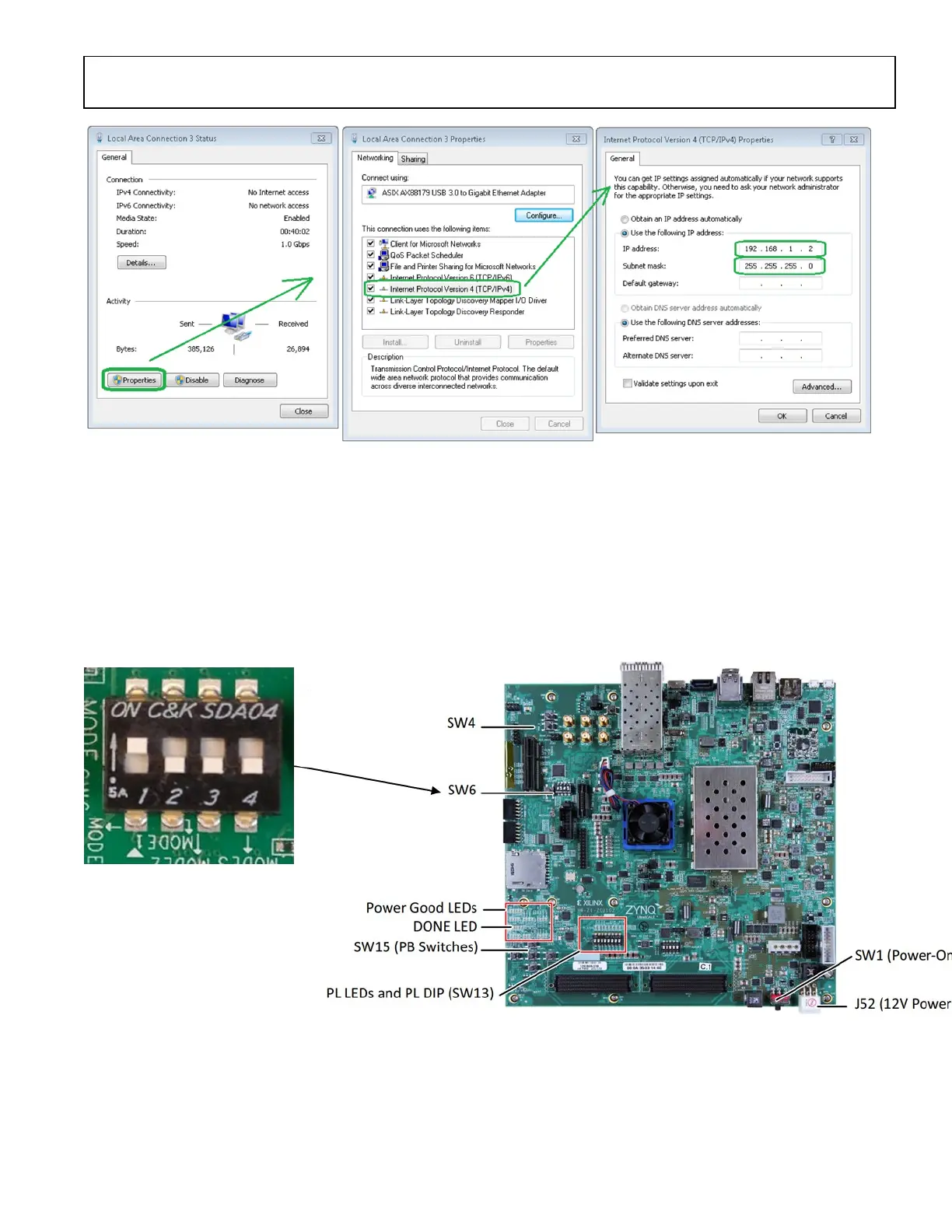

Figure 271. IP Settings for Ethernet Port Dedicated for ZYNQ ZC706 Evaluation Platform
Hardware Setup ZCU102
Xilinx ZCU102 platform setup requires the following steps:
1. All jumpers are in the positions shown in Figure 272.
2. SW6 is in position as shown in Figure 269 (2, 3, 4 = A position)
3. The SD card included with the evaluation kit is placed in the J100 slot of the ZYNQ platform
The evaluation hardware setup is shown in Figure 273.
Figure 272. Xilinx ZCU102 Evaluation Board with Jumper Settings and Switch Position Configured to Work with ADRV9001 Evaluation Platform
