Preliminary Technical Data UG-1828
Rev. PrC | Page 329 of 338
Note in the time domain, TES only shows actual data frames, that is without gap between data frames.

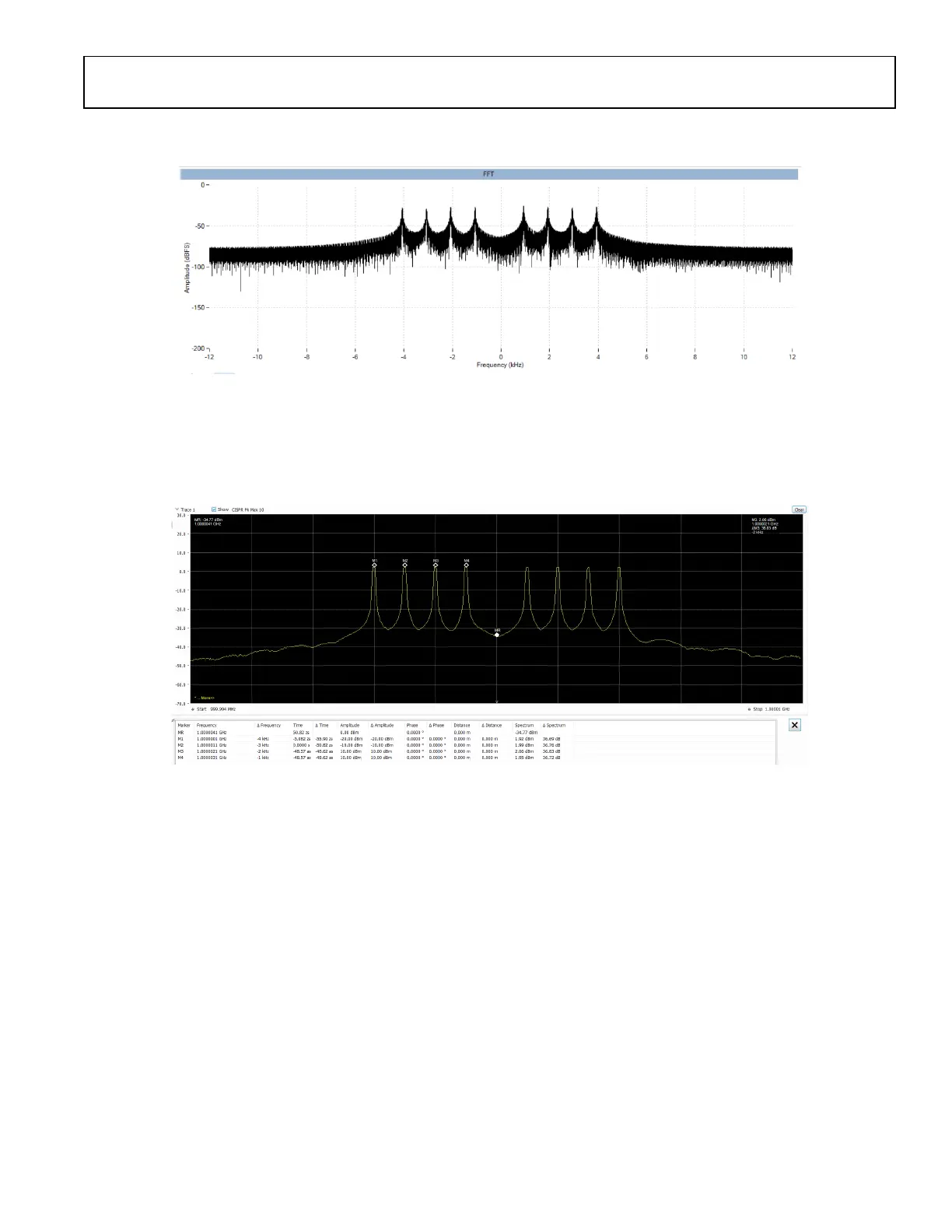

Figure 320. Rx TDD DMR with Frequency Hopping
Tx Only
Steps are the same as Rx Only, except the pre-defined json file must be DMR_24K_TX_ONLY_FH.json
We use 0 Hz tone as an example, here we see the 6 frequencies, the plot is done with max hold.
Figure 321. Tx TDD DMR with Frequency Hopping
TRx
Steps are the same as Tx Only or Rx Only, except the pre-defined json file must be DMR_24K_TX_RX_FH.json
In this mode, the frames are interleaved between Tx and Rx. Therefore, from time domain, the Tx spectrum analyzer should show gaps
between frames.
OTHER FUNCTIONALITIES
Under File menu there are:
• Save Session and Load Session options which allow save and restore TES configuration parameters,
• Generate Profile File provides option to create JSON type profile configuration file.
• Force Update Platform provides option to forcibly clean up the resources in the SD card in case of error
• Shut Down Platform which allows to safely power down Xilinx platform,
• Exit which exits TES software.
In case of some erroneous operation, TES is capable to capture its state. This functionality is provided by means of Log File functionality
that allows to capture steps that lead to error operation. File created using Log File function can be sent back to the ADI support team for
further debug.
