5-17
5.2.5 Measuring minimum output power
Minimum output power is the minimum output power of both closed and open loops
measured at the antenna connector of the CDMA mobile station.
Measurement procedure
The explanation in this section starts at the completion of the setting explained in
“5.1.2 Setting MT8801C and the CDMA mobile station”.
(1) Press the F6 (Main Func On Off) key to turn On the Main Func.
(2) Press the F1 (TX & RX Tester) key.
(3) Check whether the Loopback status is displayed on the Setup Common Param-
eter screen.
(4) Press the F1 (TX Measure) key.
(5) Press the F12 (Power Meter) key.
(6) Set the following item on the Power Meter screen:
♦ Press F1 (BS Output Level) to set BS Output Level at –25.0 dBm.
(7) Press the key of Next Menu to display the second page of function keys (F7
to F12).
(8) Press the F8 (Power Control Bit Pattern) key to set Power Control Bit to be
ALL1.
(9) Press the F7 (Power Measure Method) key to set Power Measure Method to be
IF Level Meter.
(10) Press the key of Next Menu to display the first page of function keys (F7 to
F12).
(11) Press the F9 (Storage Mode) key and the F7 (Normal) key to set Storage Mode to
be Normal.
(12) Press the F12 (return) key.
(13) Press the F11 (Adjust Range) key to optimize the measurement range.
(14) Press the Single key or the Continuous key to start the minimum output power

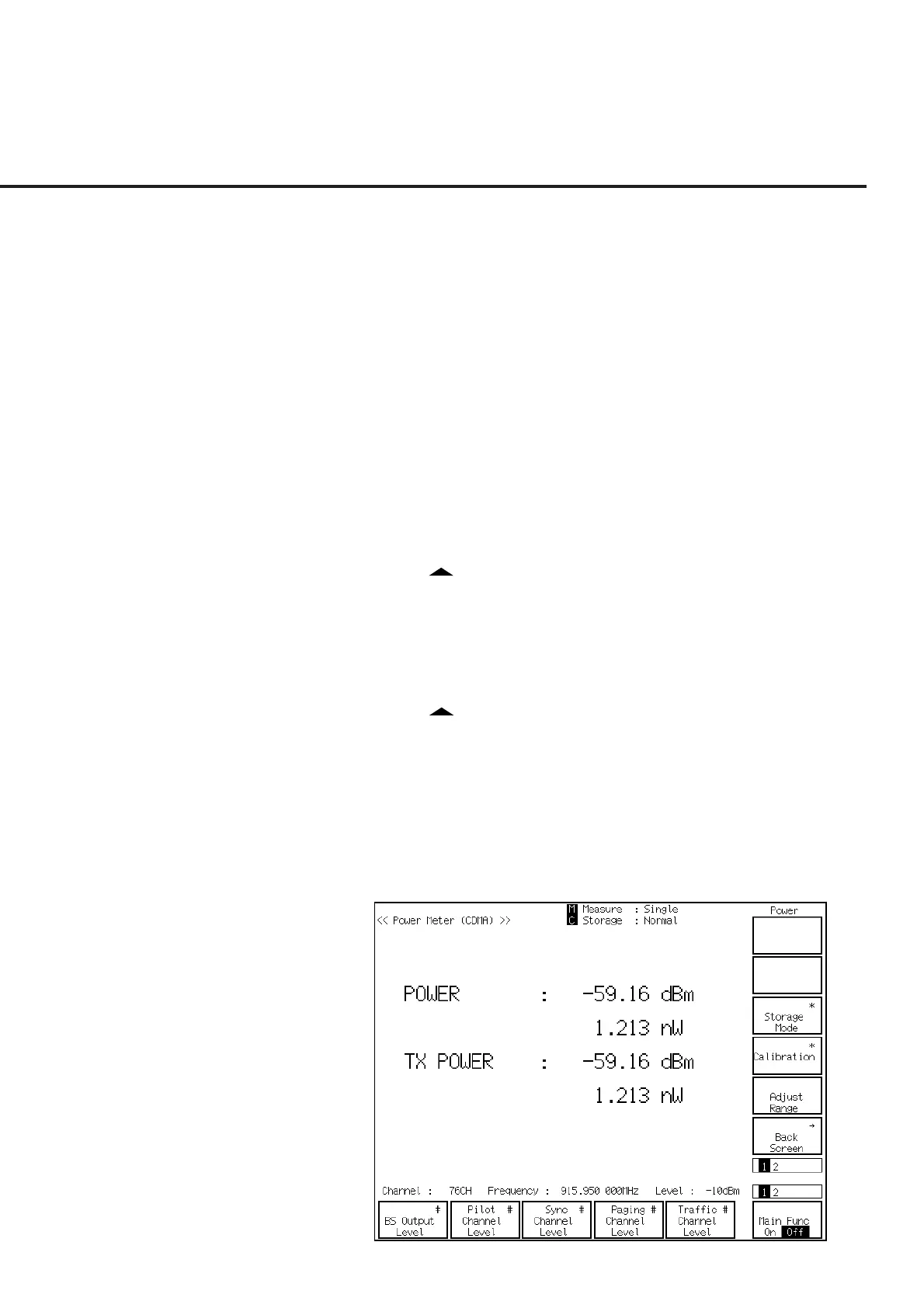

measurement. The measurement result is shown as follows:
5.2 Testing CDMA Mobile station Output
