Section 5 Measurement Examples
5-20
5.2.7 Measuring TX spurious closed to fc
TX spurious closed to fc is to check whether both signal and spurious are within the
specification value so that the spurious does not affect adjacent channels.
Measurement procedure
The explanation in this section starts at the completion of the setting explained in 5.1.2
“Setting MT8801C and the CDMA mobile station”.
(1) Check whether the Loopback status is displayed on the Setup Common Param-
eter screen.
(2) Press the key of Next Menu to display the second page of function keys (F7
to F12).
(3) Press the F11 (Spurious close to the Carrier) key.

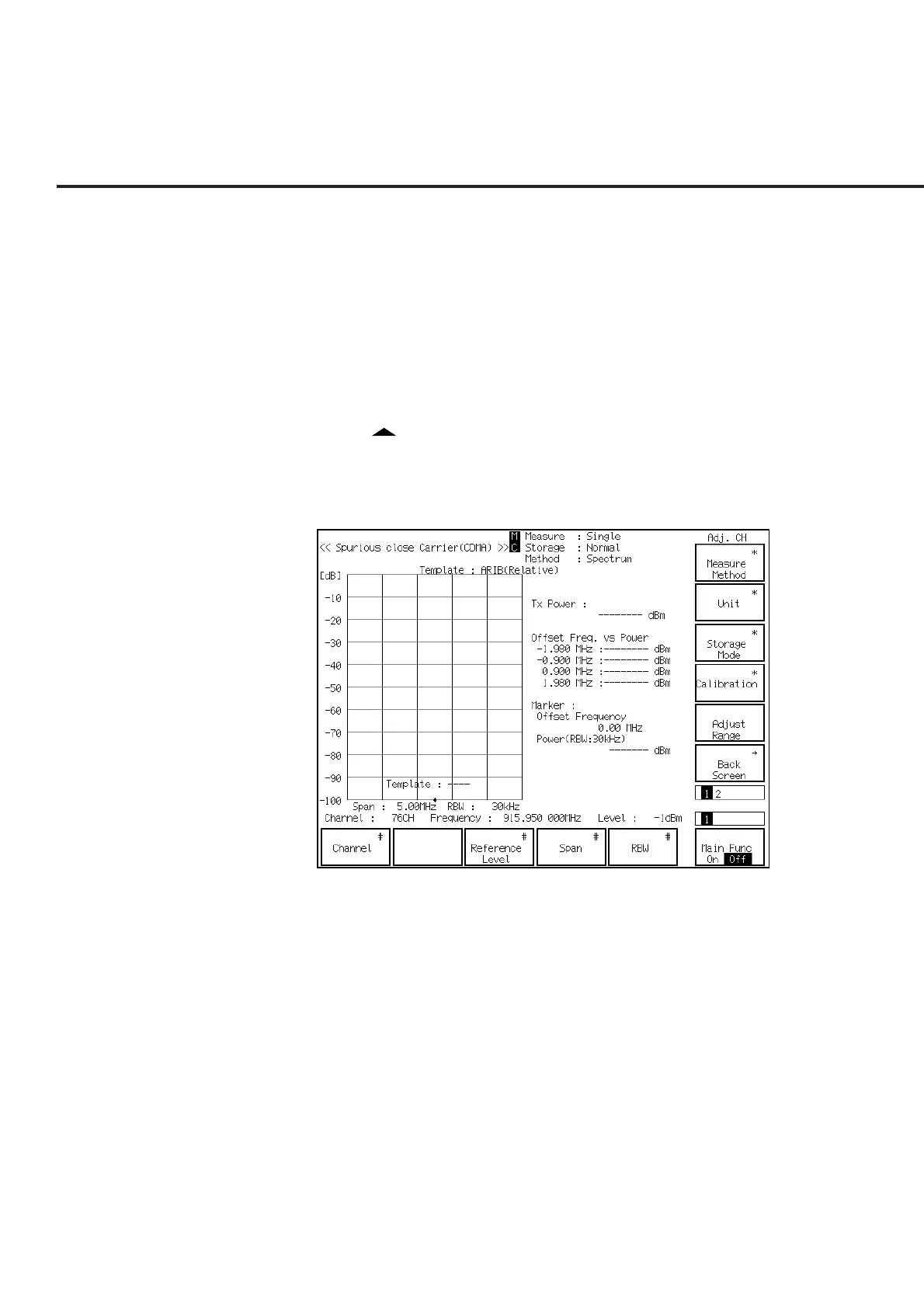

(4) The Spurious close to the Carrier screen (shown below) is displayed.
(5) Press the F8 (Unit) key and F11 (dB) to set Unit to be dB.
(6) Press the F12 (return) key.
(7) Press the F11 (Adjust Range) key to optimize the measurement range.
