5-19
5.2 Testing CDMA Mobile station Output
(16) Press the F1 (TX & RX Tester) key.
(17) Press the F9 (Gated Power) key.

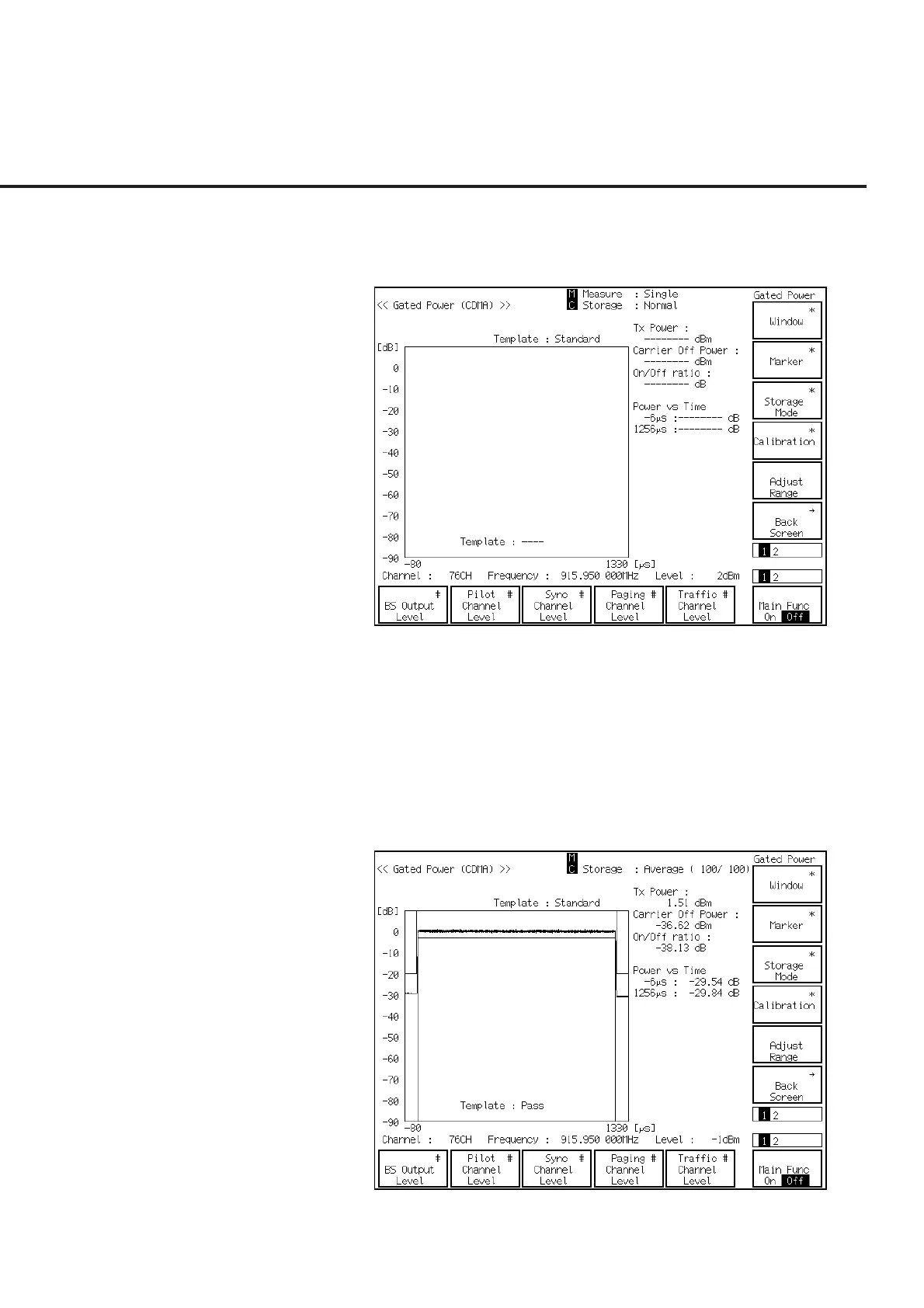

(18) The Gated Power screen (shown below) is displayed.
(19) Press the F9 (Storage Mode) key and the F8 (Average) key to set Storage Mode
to be Average.
(20) Press F9 (Average Count) and set the number of average count to be 100 using
the numeric keypad.
(21) Press the F12 (return) key.
(22) Press the F11 (Adjust Range) key to optimize the measurement range.
(23) Press the Single key or the Continuous key to start the gated power measure-
ment. The measurement result is shown as follows:
