Section 3 Panel Layout and Overview of Operation
3-6
3.1.3 Panel layout
The front panel and rear panel layouts are shown in Figs. 3-1 and 3-2, respectively.
The numbers in the diagram correspond to those in paragraphs 3.1.1 and 3.1.2.
MT8801C
Radio Communication
Analyzer
300kHz-3GHz
Input/Output
Main
Output
300kHz-3GHz
50‰
10W Max
20dBm Max
AUX
50‰
InputAF OutputAF InputDUT Interface
Stby
Copy
Panel Lock
Local
Remote
On
Preset
Set
Cancel
Single
Continuous
Step
Measure
Cursor
F 7
F 8
F 9
F 10
F 11
F 12
F 1 F 6F 5F 4F 3F 2
Next Menu
Hz
V
s
kHz
mV
ms
MHz
dB /V
sec
GHz
dBm
dB
0
. - / +
Enter
123
56
BS
4
89
Shift
7
D
CA
W
W
nW
mW
EF
B
30V Max
FDD
25 contacts
12
3
456 7
14 13 101112
8
9
18
17
16
15

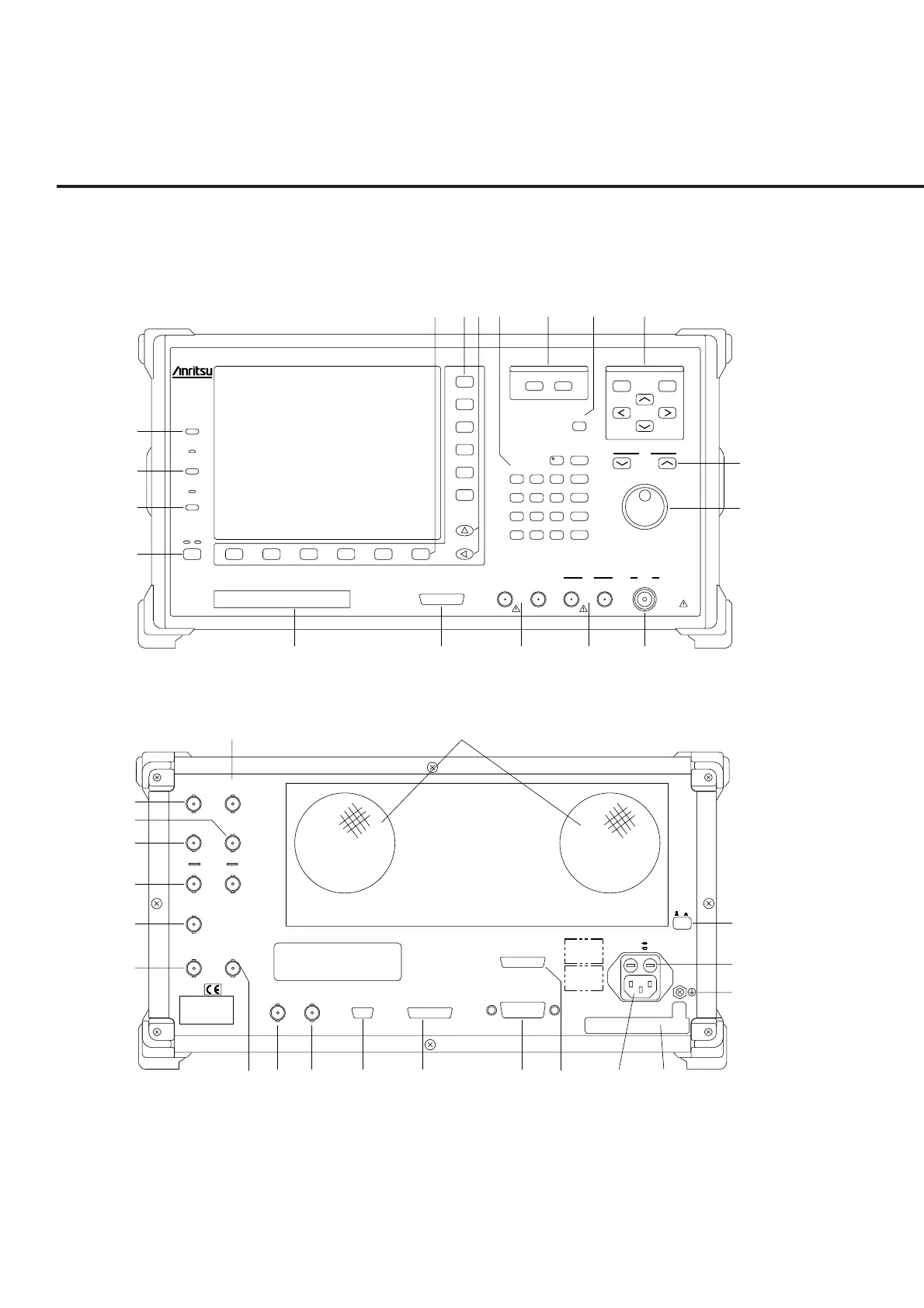

Fig. 3-1 Front Panel
3534
27 26 25 2228 23
20
21
30
29
33
32
31
24
19
ParallelSerial
GPIB
10MHz
Buffered
Output
10MHz/13MHz
Reference
Input
~Line Input 350VA Max
47.5–63Hz
100–120V T 6.3A
200–240V T 6.3A
O I
WARNING
CAUTION
Detector
Output
Data Clock
Ext Trig
Input
Ext Trig
Output
Ext FM
Input
Demod
Output
BER Input
CDMA
Reference
Input
CDMA
Reference
Output
25 contacts 24 contacts
CDMA Timing
25 contacts
NAME PLATE
36
38
37
Fig. 3-2 Rear Panel
