6.3 Performance Tests
6.3.7 Neighboring spurious measurement
(1) Specifications
• 900 KHz detuning: ≥50 dB
• 1.98 MHz detuning: ≥60 dB
(2) Test instruments
• Digital modulation signal generator: MG3670B or the equivalent
• PC

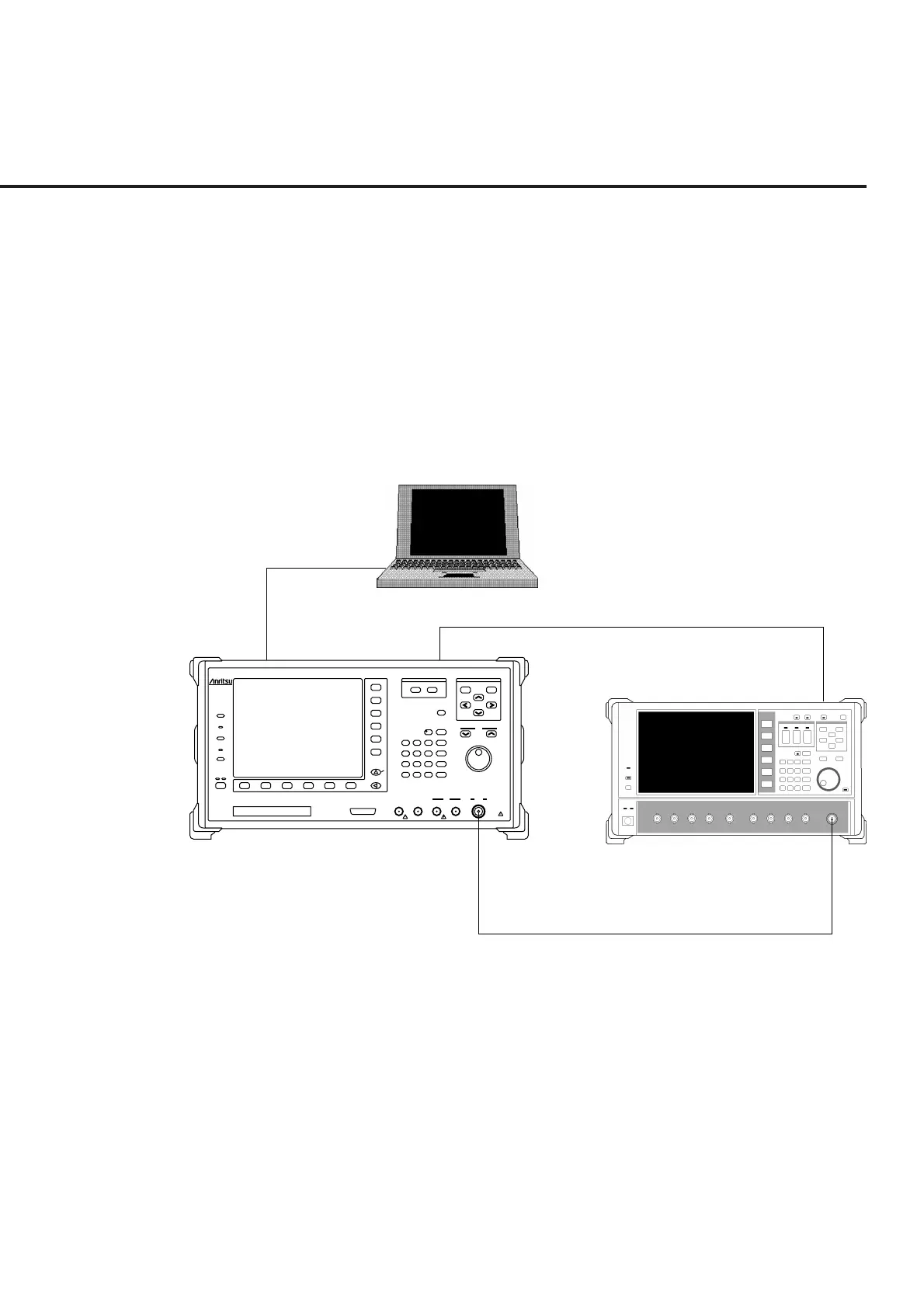

(3) Setup
