Section 8 Waveform Data Storage Format
8-4
(2) XMO (Open Loop Power Control measurement waveform)

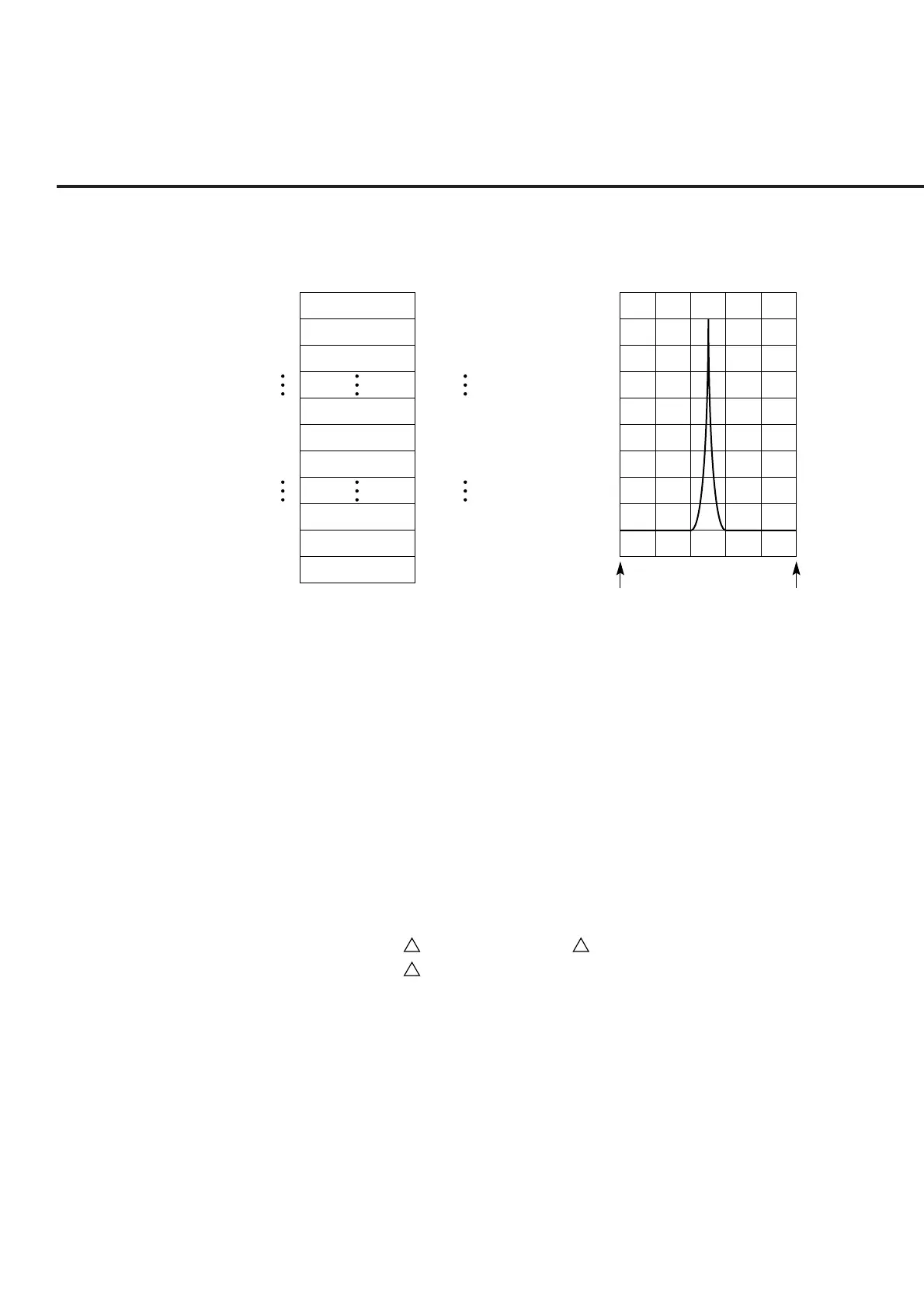

(a) Format
p
0
1
2
99
100
101
198
199
200
0.0 (ms)
0.5 (ms)
1.0 (ms)
49.5 (ms)
50.0 (ms)
50.5 (ms)
99.0 (ms)
99.5 (ms)
100.0 (ms)
0 250
• Number of data items is fixed to 201 points, which correspond to the
holizontal axis of the screen display of Open Loop Power Control mea-
surement.
(b) Scaling
• Displays a 16-bit signed integer value in 0.01 dB units (1 dB = 100, -
32768 to 32767).
(c) Read command
XMO? p,d
p: Read starting point (0 to 200)
d: Number of reads
Use examples
Call ibwrt(ud%, "XMO? 125,1")
Call ibrd(ud%, rdbuf$)
sØ!=Val(rdbuf$)/1ØØ.Ø
.
