AOR AR5001D - 10-5 SCR (ANALOG VOICE DESCRAMBLER); 10-6 IF-SFT (IF SHIFT)

37

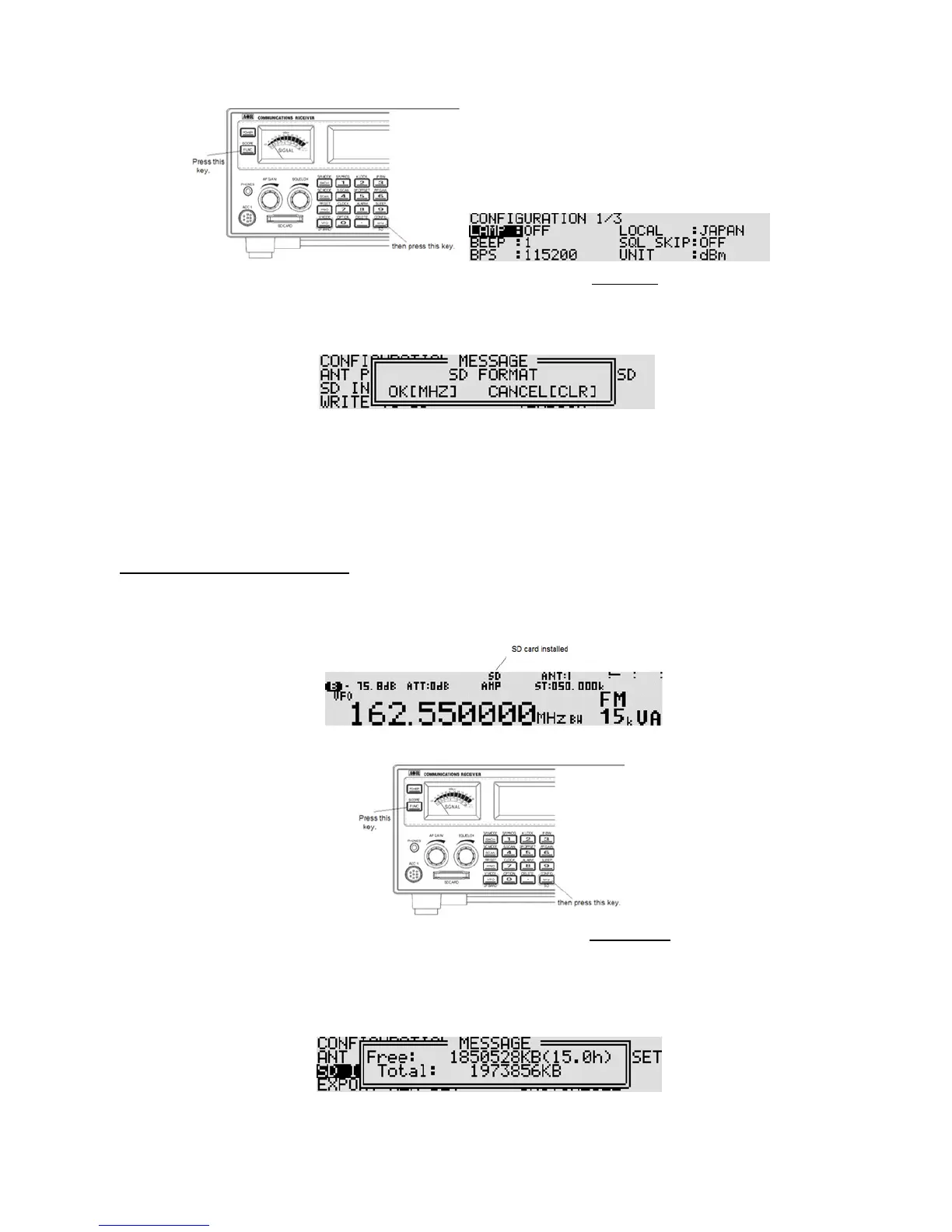

4 . When the configuration menu is displayed, press the [UP] key four times to select “SD FORMAT”
in reverse contrast.
5 . Press the [MHz] key.
6 . If you wish to proceed to format, press the [MHz] key.
To cancel formatting, press the [CLR] key.
7 . Format will start.
8 . Press the [CLR] key to exit the configuratio n menu.
5-3-2 SD CARD INFORMATION
1. Insert a SD memory card with the printed label upward facing the slot on the front panel until you
can hear a click.
2. Wait until “SD” appears on the top of the LCD.
3. Press the [FUNC] key, and then press the [kHz] key.
4. When the configuration menu is displayed, press the [UP] key seven times to select “SD INFO”
in reverse contrast.
5. Press the [MHz] key. A sub screen will appear and the total available recording time and total s ize of
the SD memory card information is displayed.
