2 CONTROLS AND FUNCTIONS

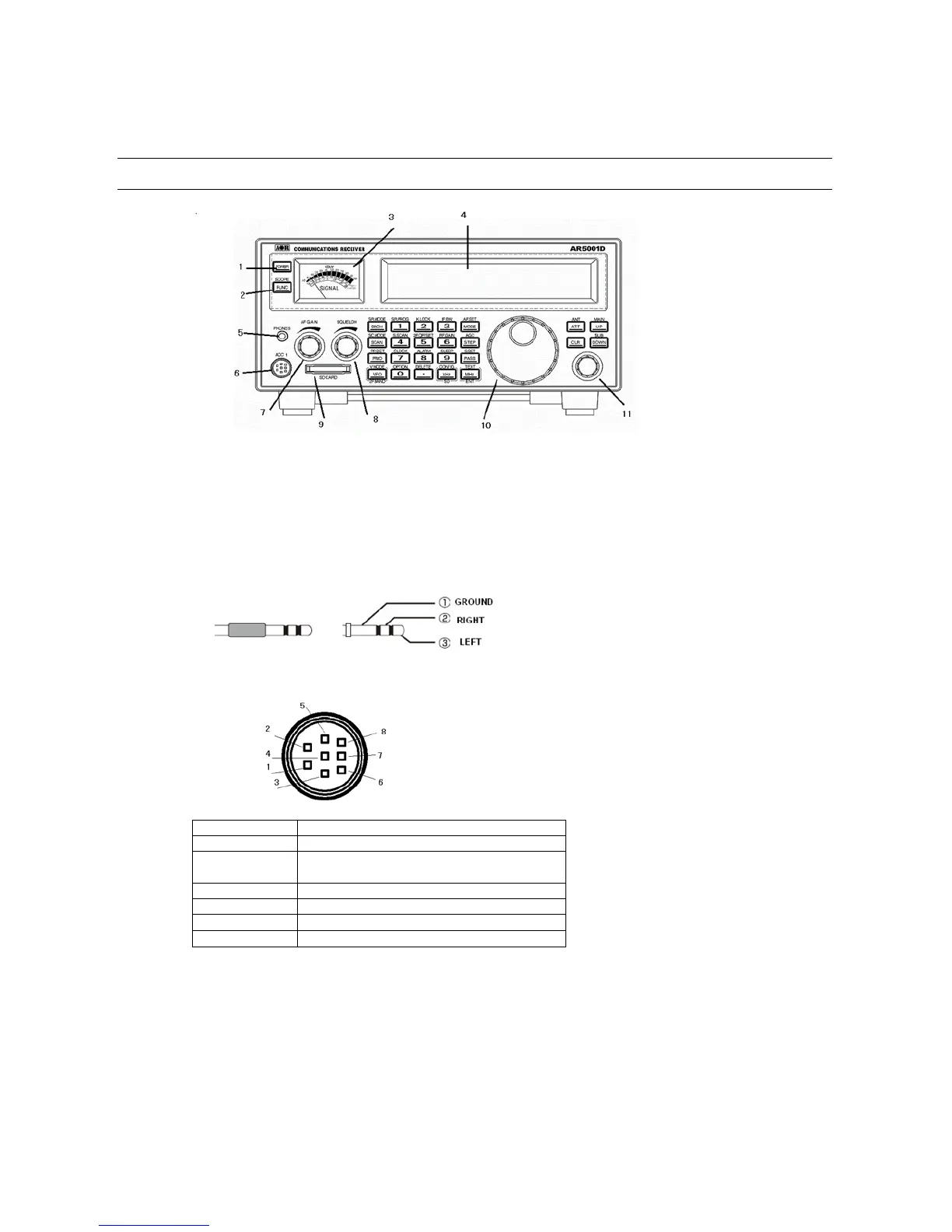

2-1 FRONT PANEL
1. Power On/Off switch
2. Function switch
3. Analog S meter
4. LCD (Liquid Crystal Display)
5. Stereo headphone jack (3.5 mm stereo type)
6. ACC1 (Accessory connector)
Pin #1 12 VDC output (30 mA ma x.)
Pin #2 Detector Output
Pin #3 External Mute input
Pin #4 Control 1
Pin #5 Control 2
Pin #6 GPS time pulse input
Pin #7 Low level audio outpu t (2.5 mV @600 ohm)
Pin #8 Ground
7. AF Gain control
8. Squelch control
9. SD card slot
10. Main dial
11. Sub dial
