Manual, Signal and Control Module, SA2 SA3
Document #9620-20-C-SA2 SA3-04
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
C-27
3rd ANGLE PROJECTION
2
3
1
4

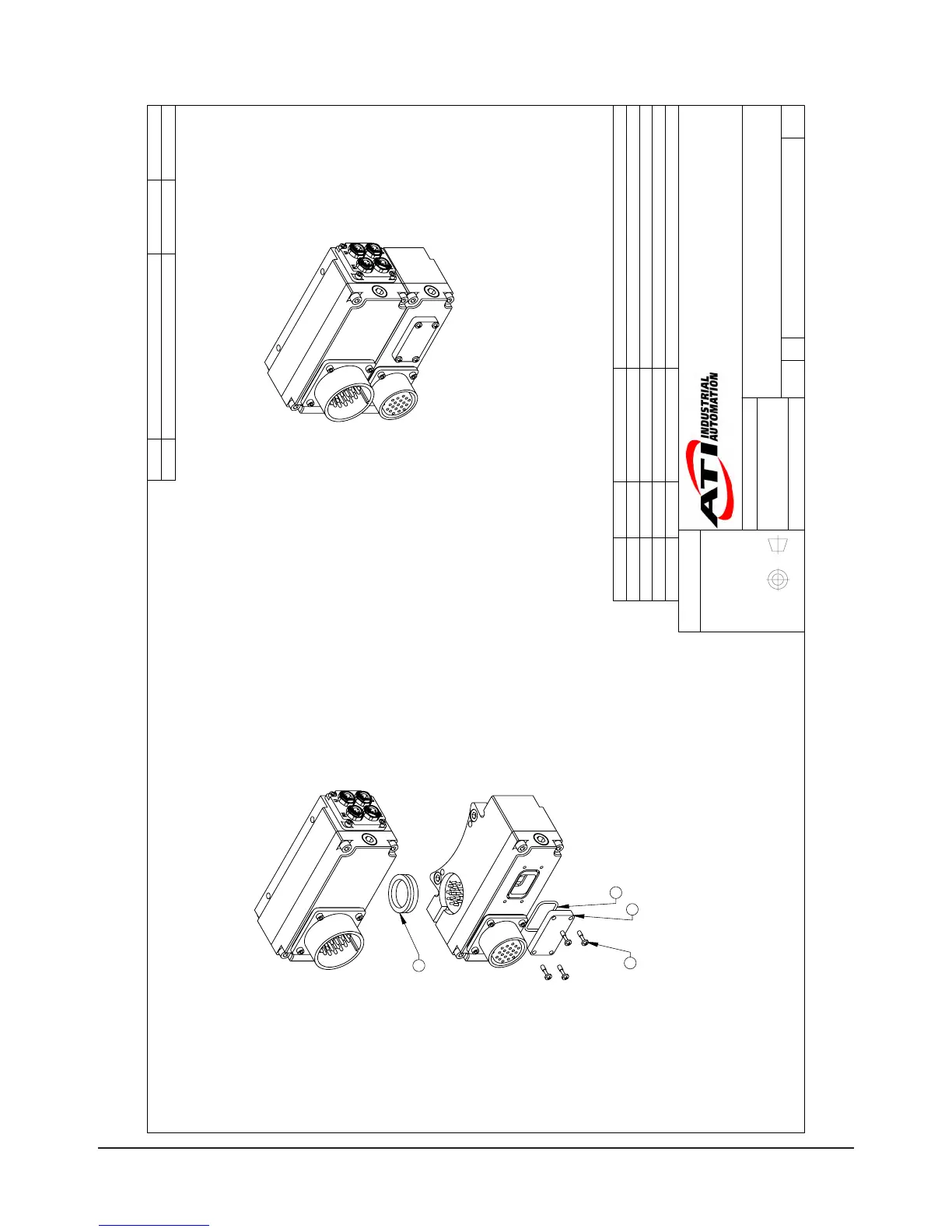

SA2-M/SA7-T Serviceable Parts
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
1 1
3410-0001092-01
O-ring AS568-023
2 4
3500-9957012-21
CAPTIVE SCREW M3 X 12 SLOTTED HEAD SS
3 1
3700-20-2696
Thick Window for DP/DE45 Master
4 1
4010-0000030-01
V-Ring Seal
Rev.
Description
Initiator
Date
-
See Sheet1
- -
B
1:2
2
3
REVISION
NOTES: UNLESS OTHERWISE
SPECIFIED.
DO NOT SCALE DRAWING.
ALL DIMENSIONS ARE IN
MILLIMETERS.
DRAWN BY:
CHECKED BY:
C. Flesock, 5/7/07
R. Heavner, 5/7/07
TITLE
SCALE
SIZE
DRAWING NUMBER
PROJECT #
SHEET OF
9630-20-SA2M SA7T
02
PROPERTY OF ATI INDUSTRIAL AUTOMATION, INC. NOT TO BE REPRODUCED IN ANY
MANNER EXCEPT ON ORDER OR WITH PRIOR WRITTEN AUTHORIZATION OF ATI.
1031 Goodworth Drive, Apex, NC 27539, USA
Tel: +1.919.772.0115 Email: info@ati-ia.com
Fax: +1.919.772.8259 www.ati-ia.com
ISO 9001 Registered Company
SA2-M/SA7-T Customer Drawing
