SmartROC D65 T4F 9 Angle instruments
130 No: 713944459.6 en

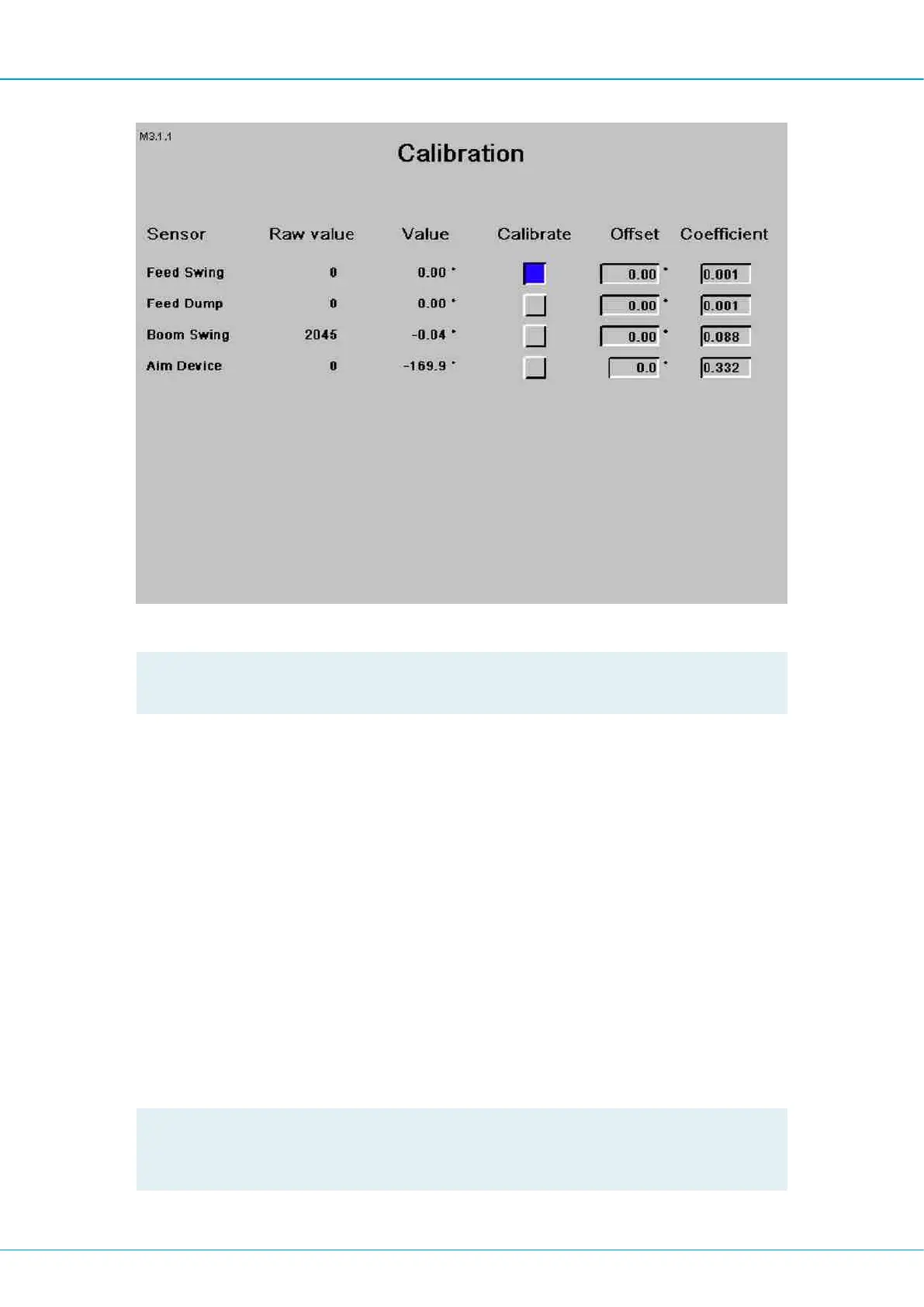

Calibration.
!
NOTE: In order to make these settings, you must log in using the service code.
Access under the heading Sensors to calibrate the sensors for Feed swing, Feed dump,
Boom swing and Aim device. The K-value, i.e. the inclination of the curve, is a fixed
value and must not be adjusted or changed.
n Fixed K-values are for:
l Feed swing -0.001
However, the offset value should be changed so that the system will be able to repro-
duce the correct information value in the different menu screens. I.e. in this case
where all the angles are zero, the value to the right of the offset box should also be
zero when calibration is complete.
l Feed dump -0.001
l Boom swing 0.088
l Aim device -0.001
n Calibrate:
l Move the cursor to the correct box for calibration using the arrow keys and
confirm with enter.
l Set to zero by pressing Enter on the box under the Calibrate heading.
l Use ESC to go back in the system.
!
NOTE: Once calibration is complete, make sure the new settings are saved to a USB
memory stick where all the other parameters are saved, otherwise the old settings will
remain on the USB memory stick if the software is ever reloaded.
