SmartROC D65 T4F 9 Angle instruments
121 No: 713944459.6 en
16.
Reset the length sensor by moving the cursor with the arrow keys, confirm with enter
and change the value to 0.00 m with the arrow keys and press enter.
17.
Ready to start drilling!
18.
When HNS is used you can reach the menu for fine navigation via a shortcut on menu
F1.

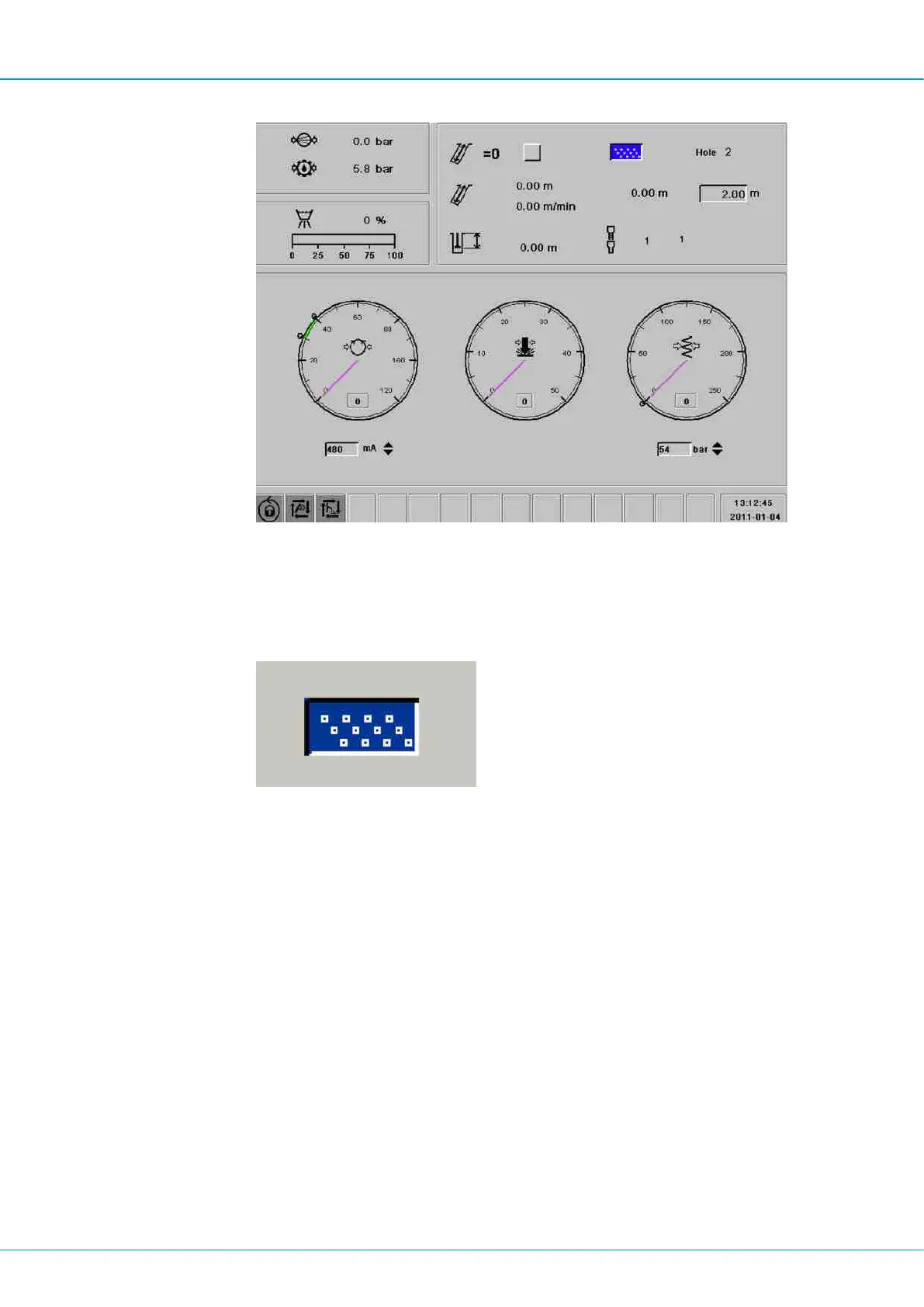

Shortcut to menu for fine navigation
19.
To select a new hole, select direct selection menu F4. Highlight Drill Plan Handling...
using the arrow keys and confirm with Enter. Select the new hole see step 11
9.1.3 GPS compass (option)
When the drill rig is equipped with an electronic angle indication system, which consists of
angle sensor on the boom and feeder, aim device, GPS compass and graphic presentation
on an LCD display, the aim device is set making it possible to drill parallel holes by select-
ing a reference point before the first hole is drilled. This reference point is then maintained
throughout the entire round or as long as the bearing is the same. The bearing is then kept
to the same reference point automatically, regardless of how the drill rig travels, without the
need for changing the aim device. The instrument calculates how feeder inclination must
be changed to maintain the same bearing.
To activate the GPS compass:
