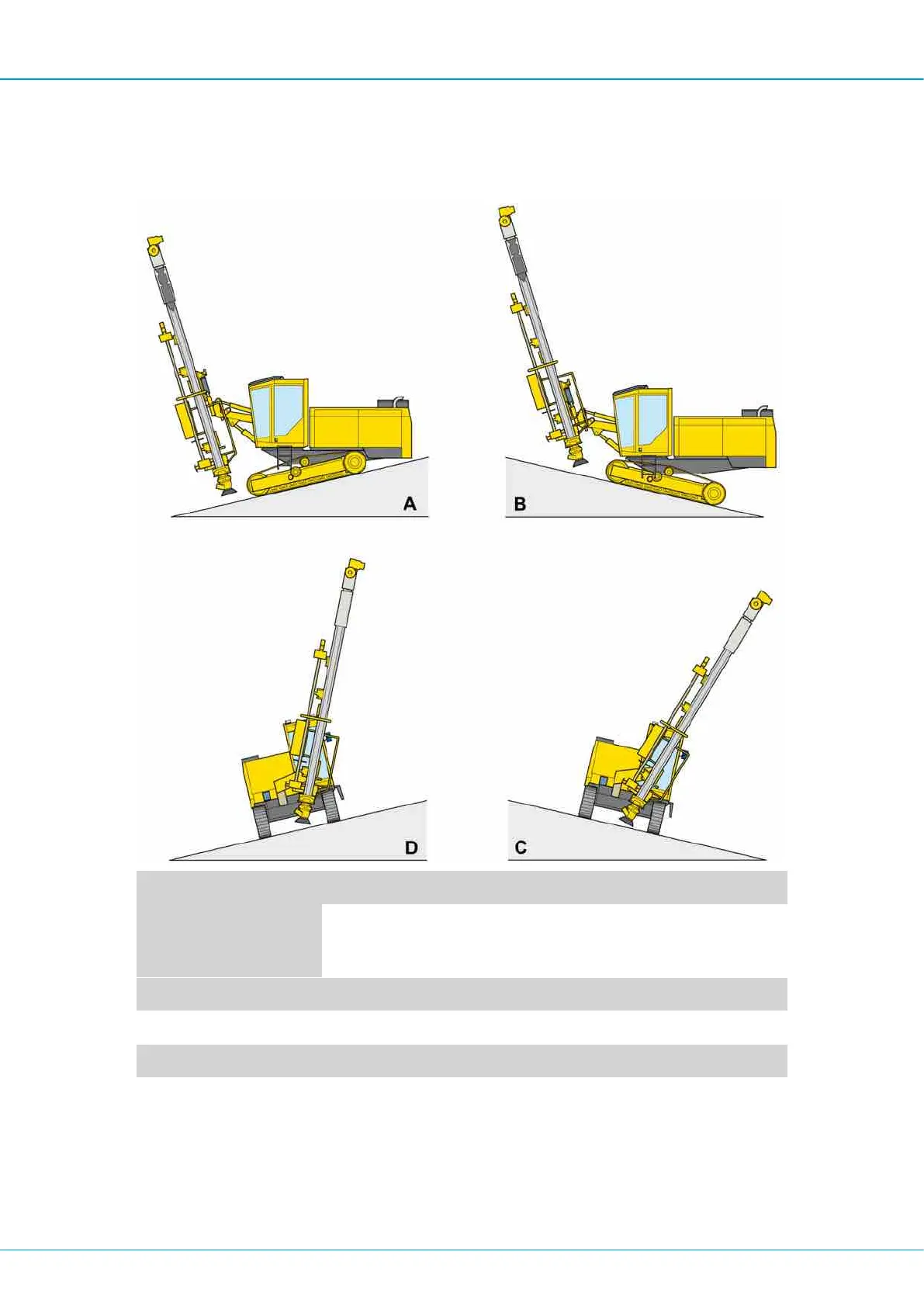

6.12.7 Setting-up for drilling with the feeder top in extreme position
forwards and to the left, and with the boom swung maximum to the
left
Illustration
reference
Direction Max. angle of inclination
FR D50/D55
SF - SR
D60/65 SF
FR/SR D60/
D65 LF
FR/SR D60/
D65 RC LF
FR/SR D60/
D65 W LF
FR/SR D60/
D65 W + RC
LF
A Forward
20 19 14 20 20
B Backward 20 20 20 20 20
C Left 9 12 9 20 20
D Right 20 20 20 20 20
