2.4.9 Air system
The air system consists of the compressor with oil separator, hoses and valves.
The compressor is driven directly by the diesel engine
The compressor element is lubricated by an air-oil mixture. The mixture is separated in the
oil separator.
The system supplies air to the down-the-hole rock drill and its lubricating system HECL and
to the dust collector for cleaning the filter.

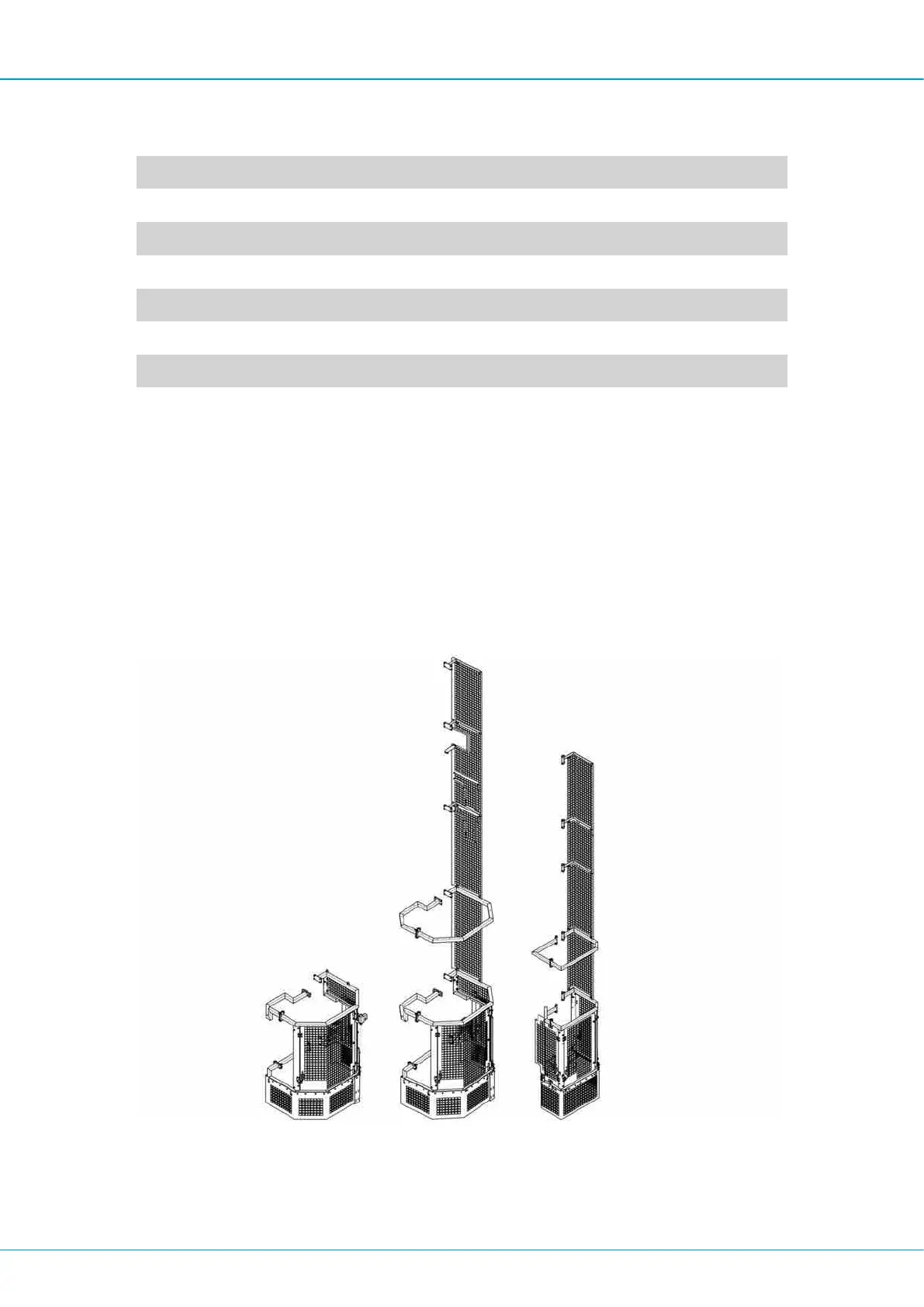

2.5 Protection of Moving Parts
Protection of moving parts is a steel structure fitted on the feeder. The protection provides
increased safety when the machine is operating.
