SmartROC D65 T4F 5 Controls

42 No: 713944459.6 en

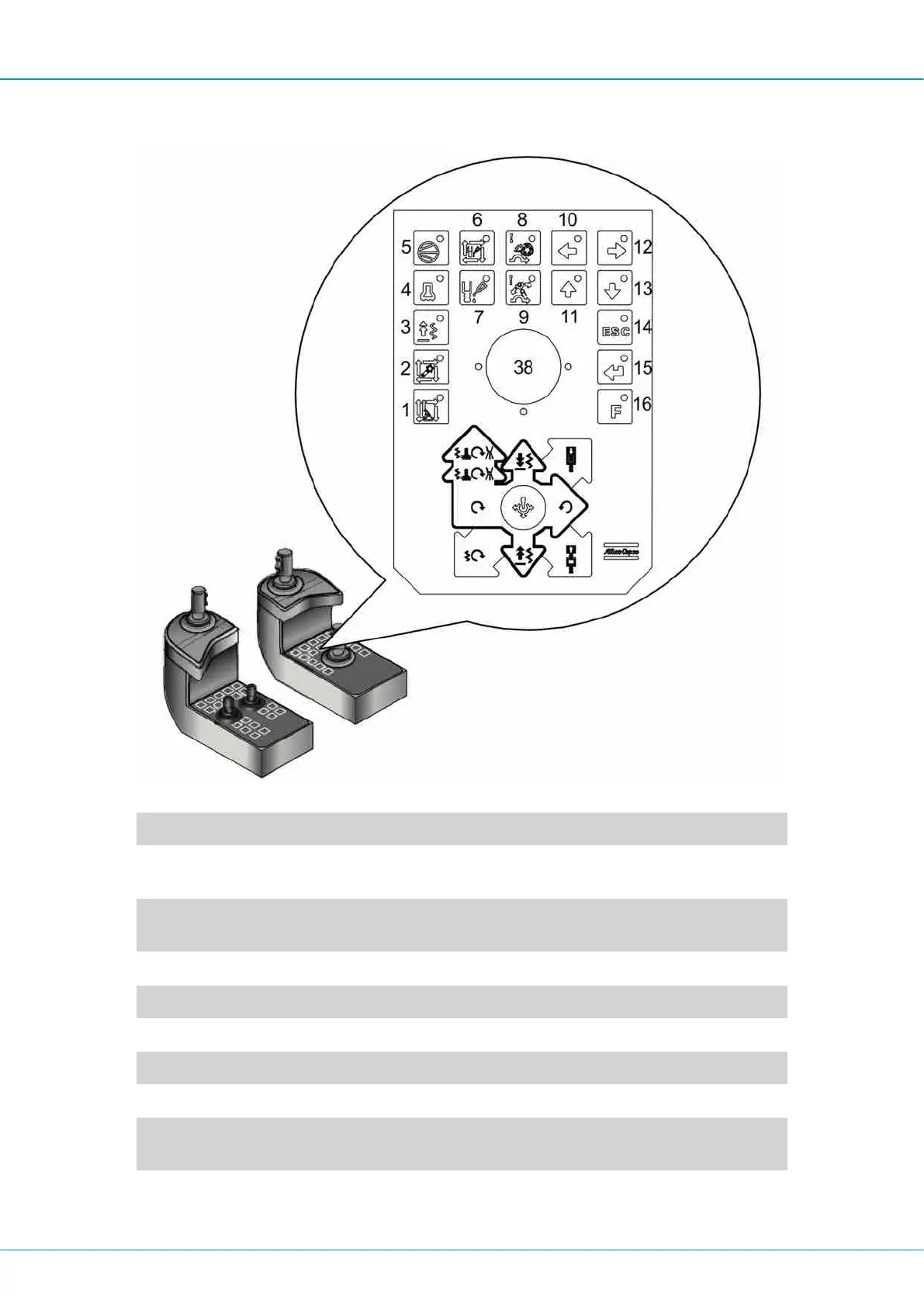

5.1.4 Right control panel

Right control panel

1 Semi-automatic boom positioning (option)

2 Automatic rod handling/Automatic collaring (Op-

tion)

3 Rapid Feed Stop (Software stop for break table

activated)

4 Drilling position

5 Compressor loading

6 Automatic thread lubrication (Option)

7 Thread lubrication (Option)

8 Emergency operation of carousel gate

9 Emergency operation of gripper claws with lever

10-13 Arrow keys for tramming cursor on display
