SmartROC D65 T4F 6 Operating
79 No: 713944459.6 en
!
NOTE: RC in the tables stands for rig with the additional equipment RC - Reverse Cir-
culation.
NOTE: W in the tables stands for rig with the additional equipment extra wide track
frame.
NOTE: LF - Long Feed. SF - Short Feed.
NOTE: FR - FlexiROC. SR - SmartROC.

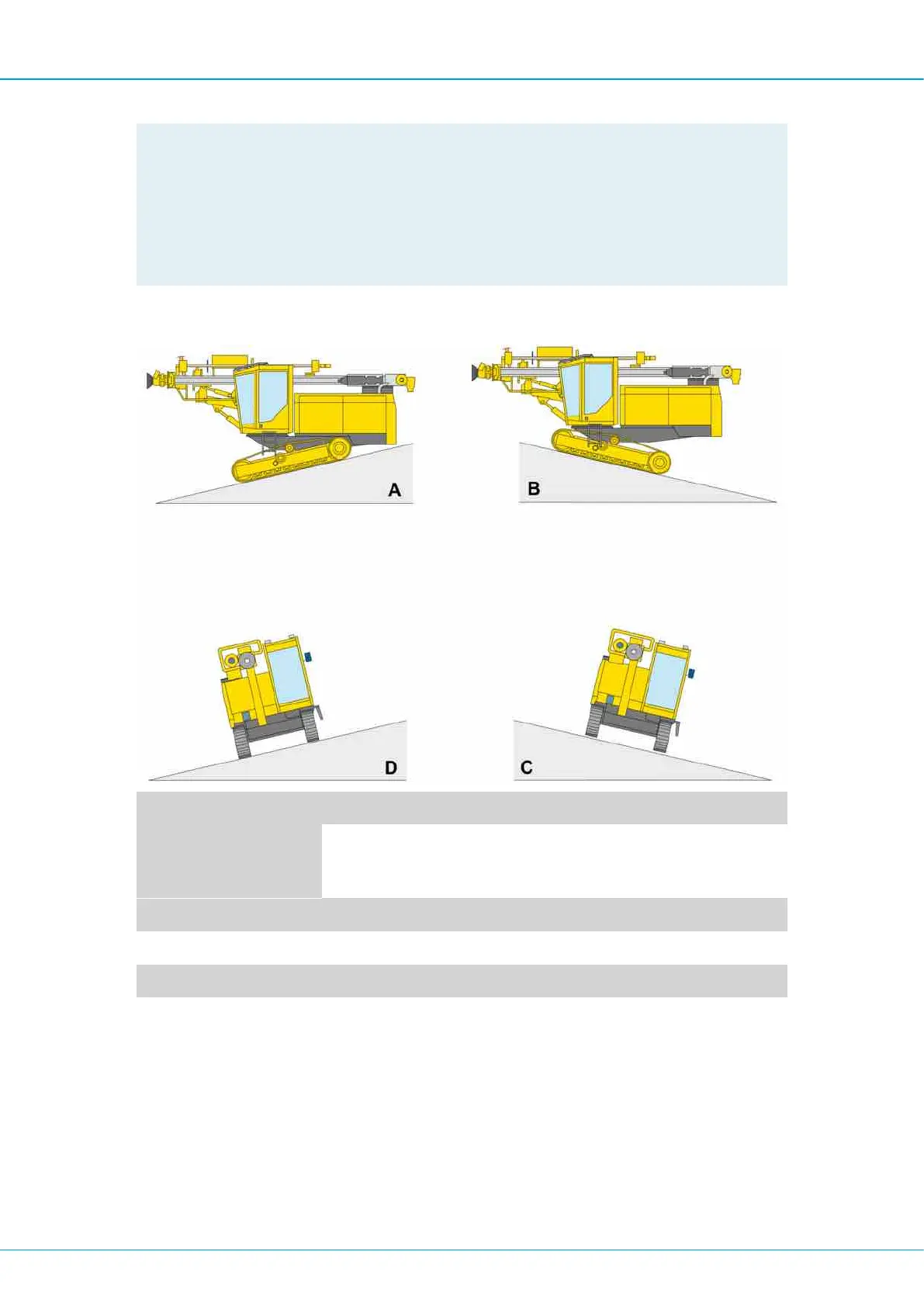

6.12.1 Tramming with the feeder in tramming position
Illustration
reference
Direction Max. angle of inclination
FR D50/D55
SF - SR
D60/65 SF
FR/SR D60/
D65 LF
FR/SR D60/
D65 RC LF
FR/SR D60/
D65 W LF
FR/SR D60/
D65 W + RC
LF
A Forward
20 20 20 20 20
B Backward 20 20 20 20 20
C Left 20 20 20 20 20
D Right 20 17 18 20 20
6.12.2 Tramming with the feeder in vertical position and centred
between the track frames
Tramming with the feeder in vertical position must only take place between holes.
When tramming with the feeder in vertical position the feeder must always be centred
between the track frames with the feed front as close to the ground as possible.
