SmartROC D65 T4F 8 Drilling

107 No: 713944459.6 en

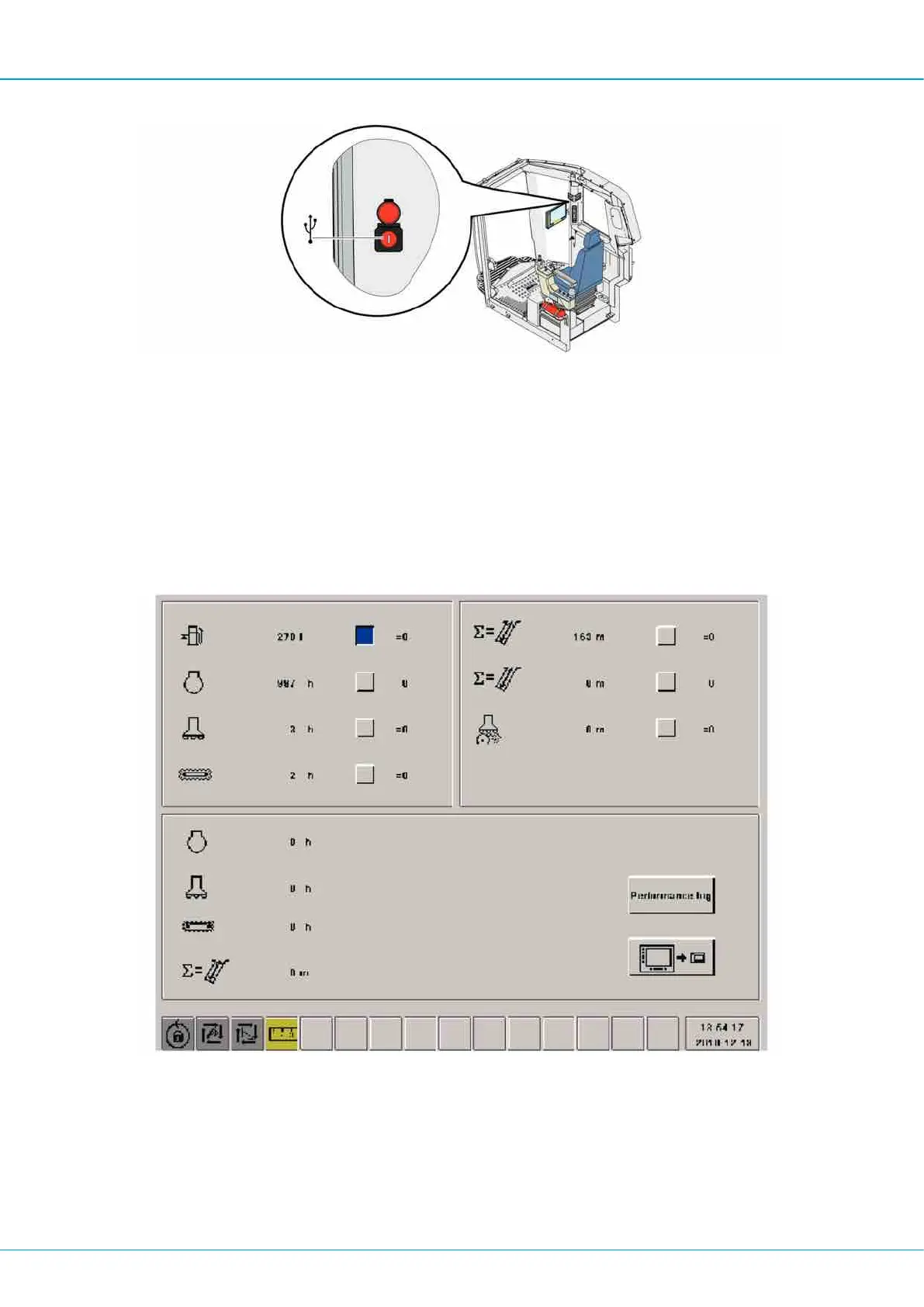

USB socket

n Use Drillplan: Used if import of drill plan from ROC Manager is executed.

n Use Hole Navigation: Used if the rig is specified with GPS (option).

n Use Anmask: Used if the rig is specified with GPS (option) and if import of drilling data

from Anmask is required.

n Automatic Menu Guiding: Used if automatic changing of navigation menus is re-

quired.

n Local coord drillplan: Used if the system shall be used with local coordinates.

8.1.6 Direct selection menu F3.

Direct selection menu F3.
