SmartROC D65 T4F 5 Controls

56 No: 713944459.6 en

5.2.2 Test connections for the hydraulic circuits

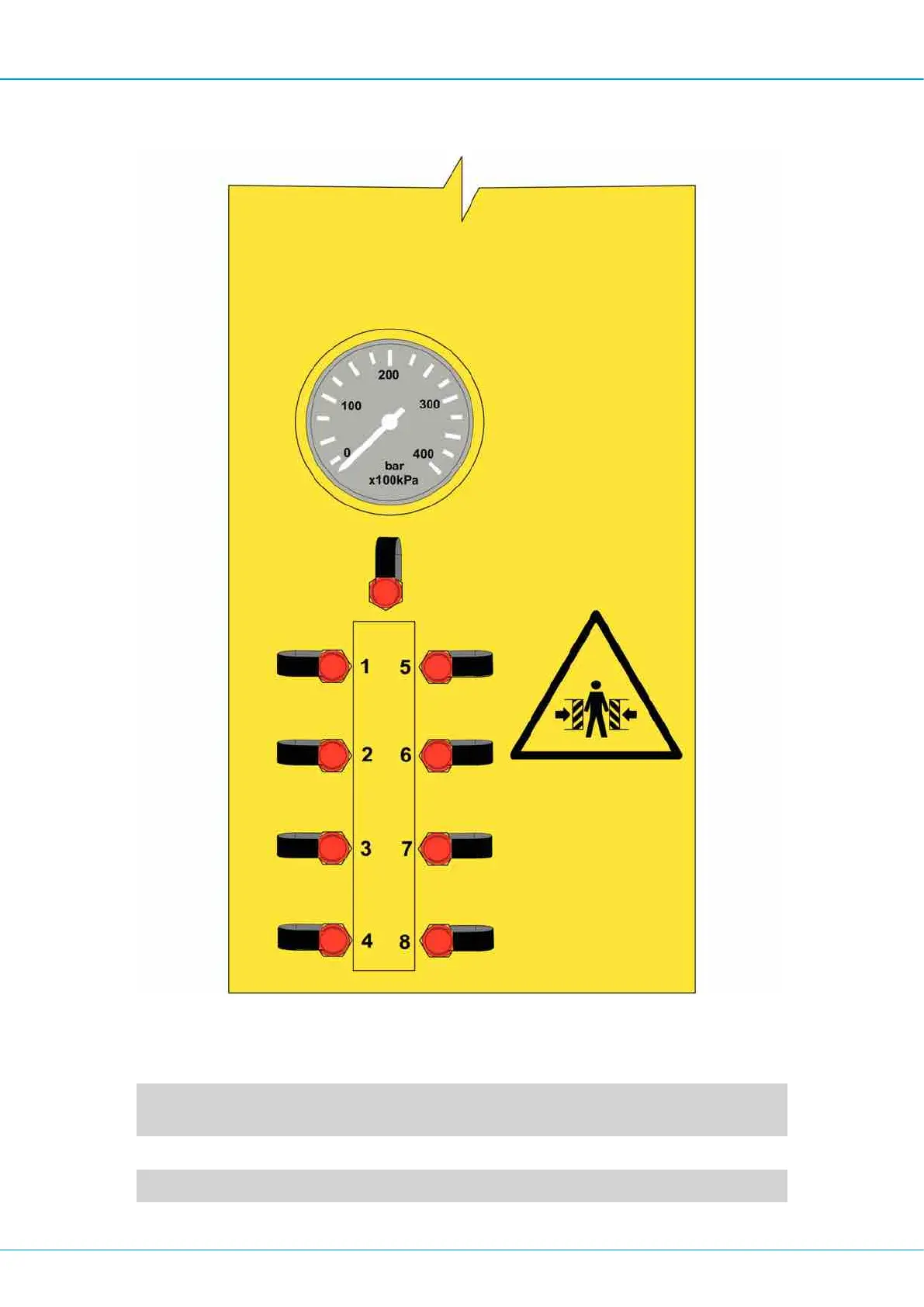

Test connections

Test instrument for checking the hydraulic circuits.

Connect the test instrument to the different outlets (see table below).

1 Hydraulic pump 1: drill feed, rapid feed, rod hand-

ling, positioning

2 Hydraulic pump 2: Rotation

3 Hydraulic pump 3: DCT
