SmartROC D65 T4F 5 Controls
44 No: 713944459.6 en
k locking collaring
!
NOTE: For a more detailed description, see "Maintenance instructions".
NOTE: To change between reduced drilling and full drilling move the lever to F2

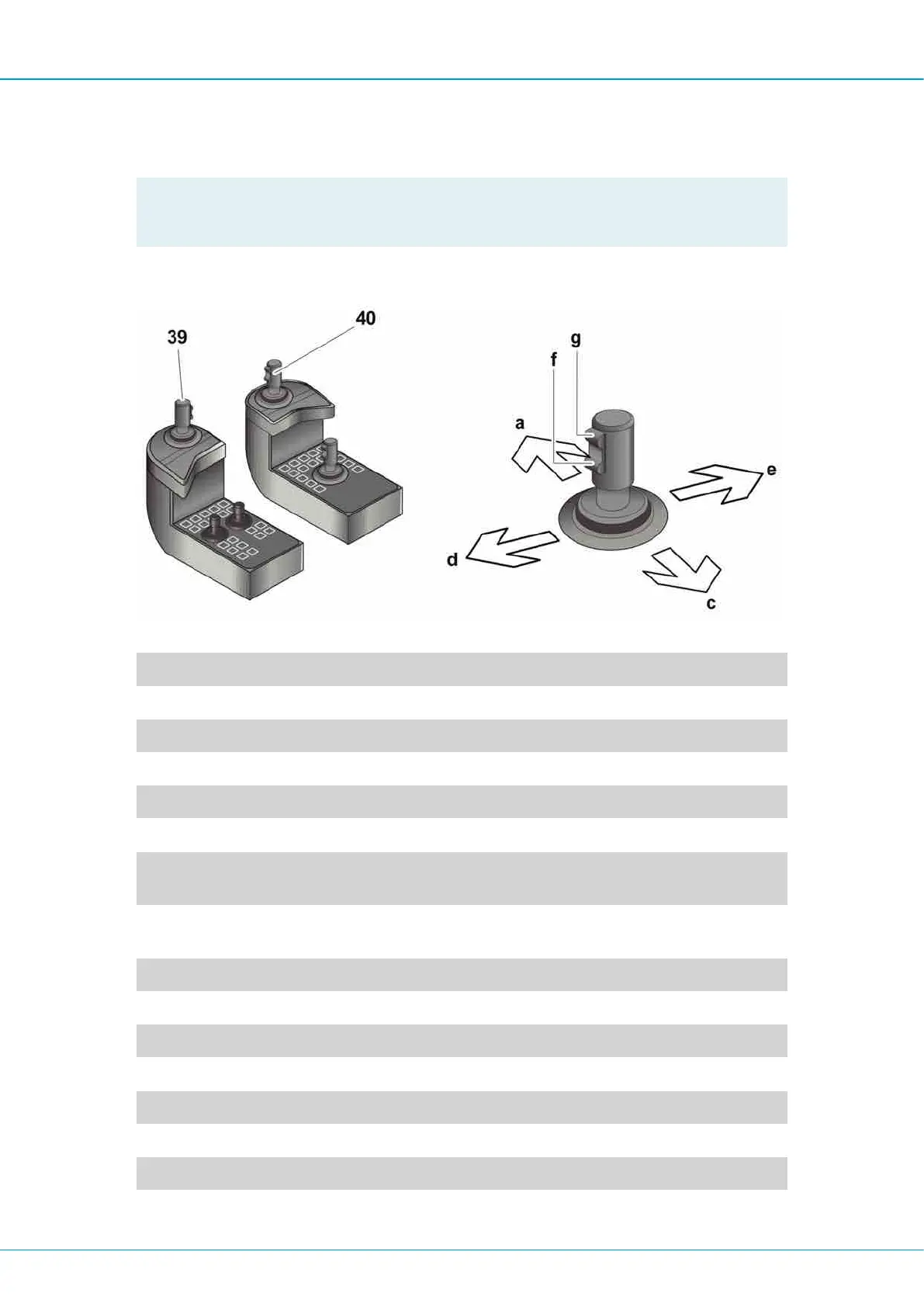

5.1.5 Boom and feed handling levers
Boom and feeder control levers.
39 Lever for Boom positioning
a Boom lowering
b Neutral
c Boom lift
d Boom swing (left)
e Boom swing (right)
f Boom extension (Out) (does not
apply to Smart ROC D65)
g Boom extension (In) (does not
apply to Smart ROC D65)
40 Lever for Feeder positioning
a Feed tilt (spike forward)
b Neutral
c Feed tilt (spike rearward)
d Feed swing (left)
e Feed swing (right)
f Feed extension (down)
