SmartROC D65 T4F 10 Options
142 No: 713944459.6 en
To transfer a drill plan from an RRA client computer to a rig, copy the required file to the
folder To Machine. This folder is on the RRA server computer and should be visible to all
RRA client computers on the same Ethernet network. Each rig connected to the RRA sys-
tem has its own unique To Machine folder. The plan is stored in this folder on the RRA
server until the rig is accessible online. At this point, the RRA server copies the drill plan to
the rig CCI which contains a hard disk.
The operator can then load the drill plan from the rig CCI module in almost the same way
as loading a drill plan from a USB memory.
To load a drill plan, press F4 , then in Drill Plan Handling select Drillplan action. Select
Load. In Load Drillplan you can choose between CCI or Disp. In this case, you should
choose CCI. It is now possible to choose between all drill plans on the drill rig's CCI hard
disk.

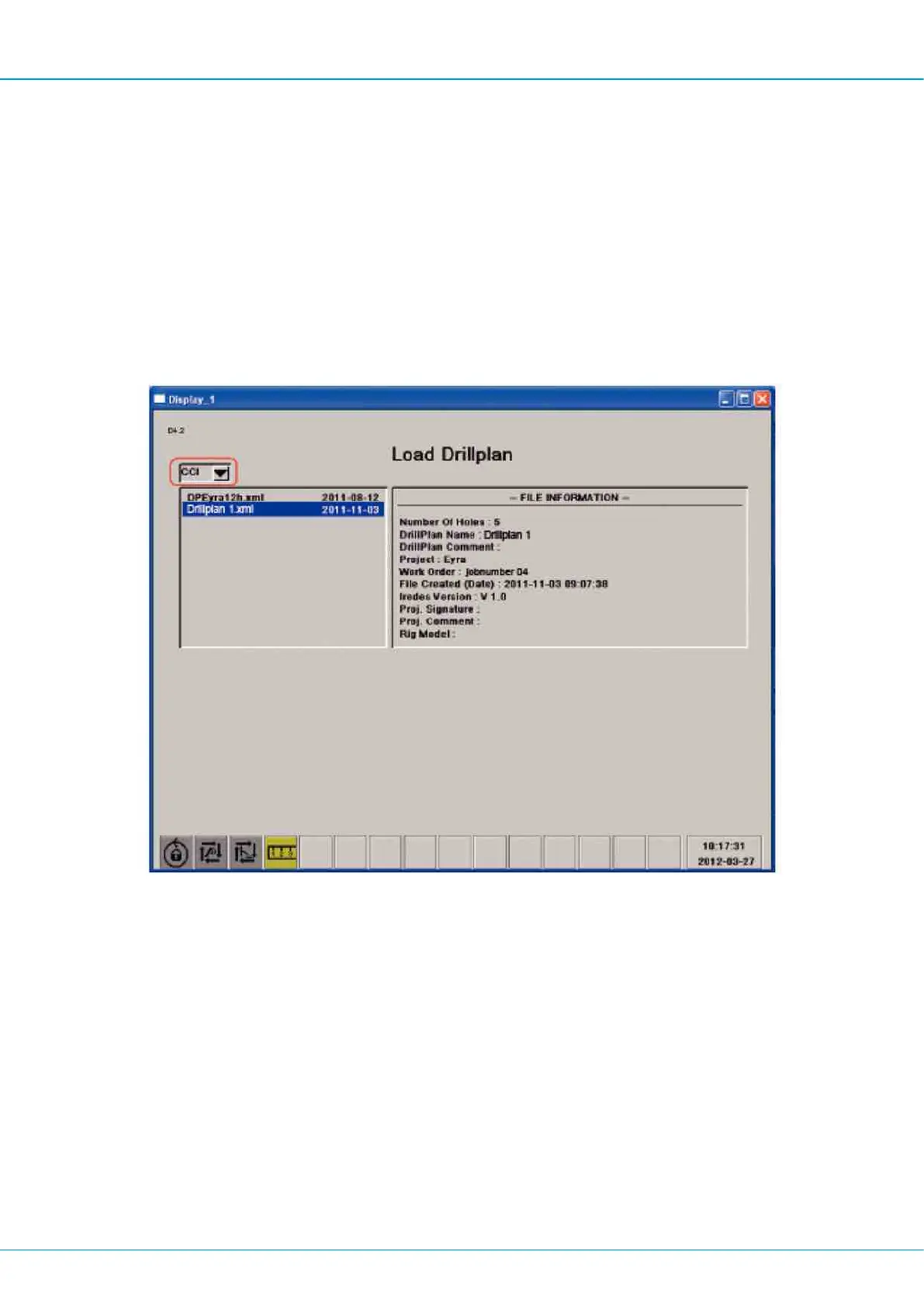

Choose either CCI or Disp
10.2.3 Transmission of data files from the rig to a PC via RRA
The PC must be on the same network as the rig and have RRA client software installed.
There must also be an RRA server on the same network.
The operator can choose to save files on the rig CCI in Configuration. When the rig CCI is
able to contact the RRA server, these files are downloaded from the rig CCI to the relevant
From Machine folder on the RRA server. The From Machine folder should be visible for
an RRA client on the same network.
