SmartROC D65 T4F 9 Angle instruments
129 No: 713944459.6 en
9.1.5 Calibration
1.

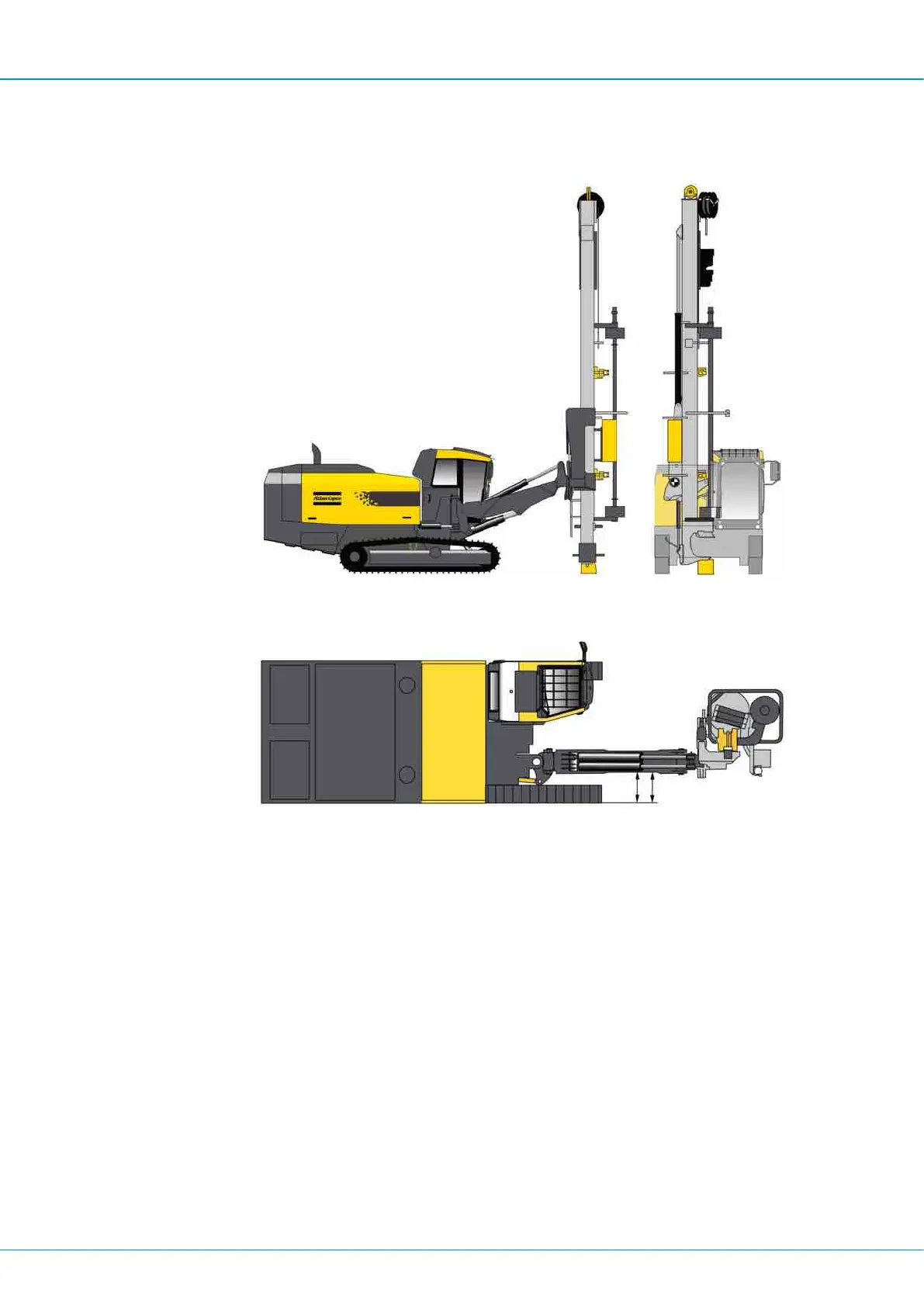

Adjust the feeder to exactly 90º as illustrated. Use a spirit level.
Feeder at 90º
2.
Adjust the boom so that it is parallel with the rig.
Boom parallel with rig
3.
Operate the cradle up to mechanical stop.
4.
Adjust the aim device in the cabin to straight ahead (see the arrow on the aim device)
i.e. 90º towards the windscreen and parallel with the boom.
After completing all these preparations, the following menu should be used, located under:
-Positioning-Sensors.
