SmartROC D65 T4F 9 Angle instruments

128 No: 713944459.6 en

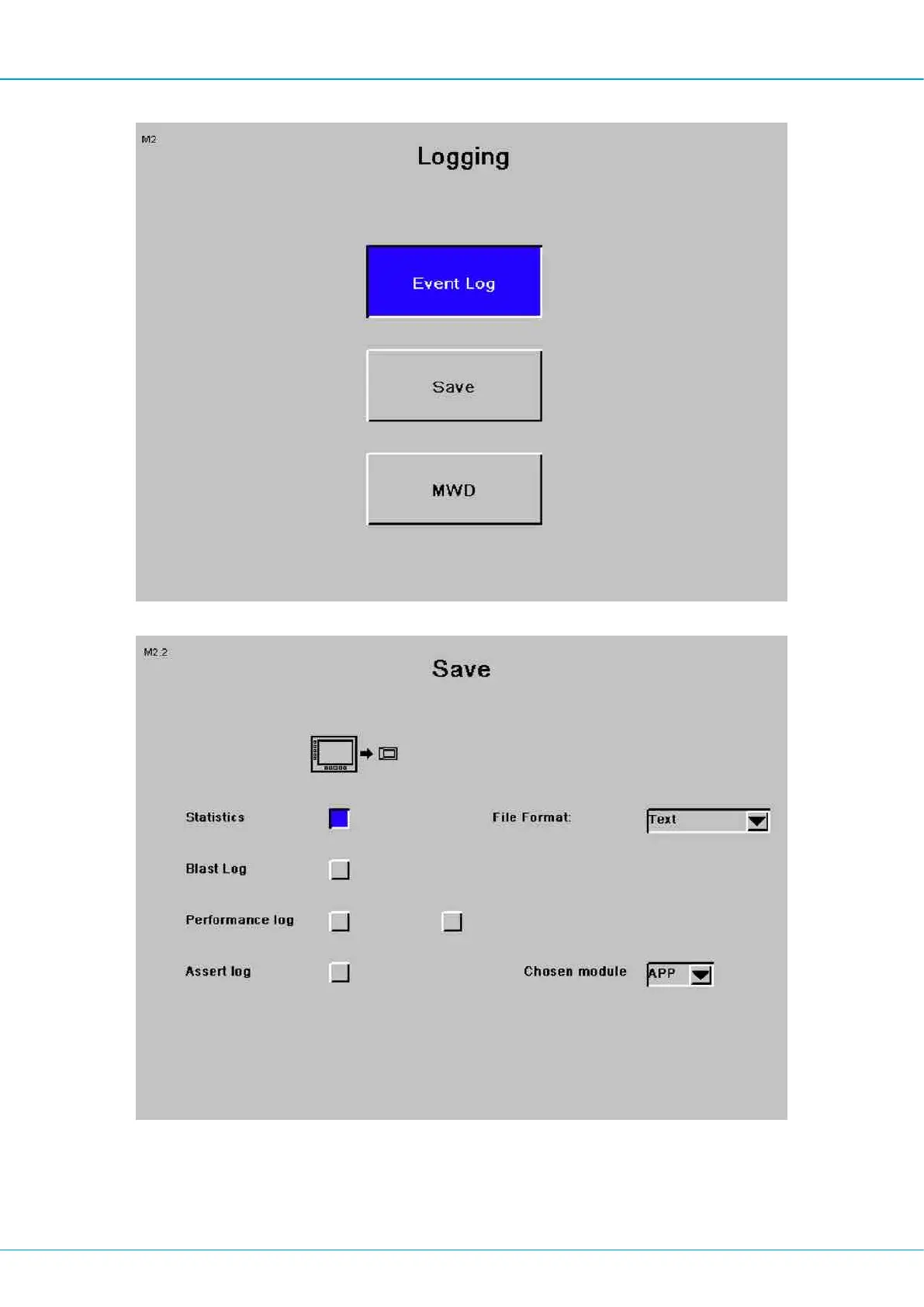

n Select Save

n Select Blast Log, confirm with Enter.

n Remove the USB stick and import the information in ROC Manager in accordance with

the instructions for ROC Manager.
