The rig has also the possibility of using several laser planes. The distance to the reference
plane, which is the top laser plane, is then set in the box for distance to reference laser
plane.
9.1.9 Laser menu

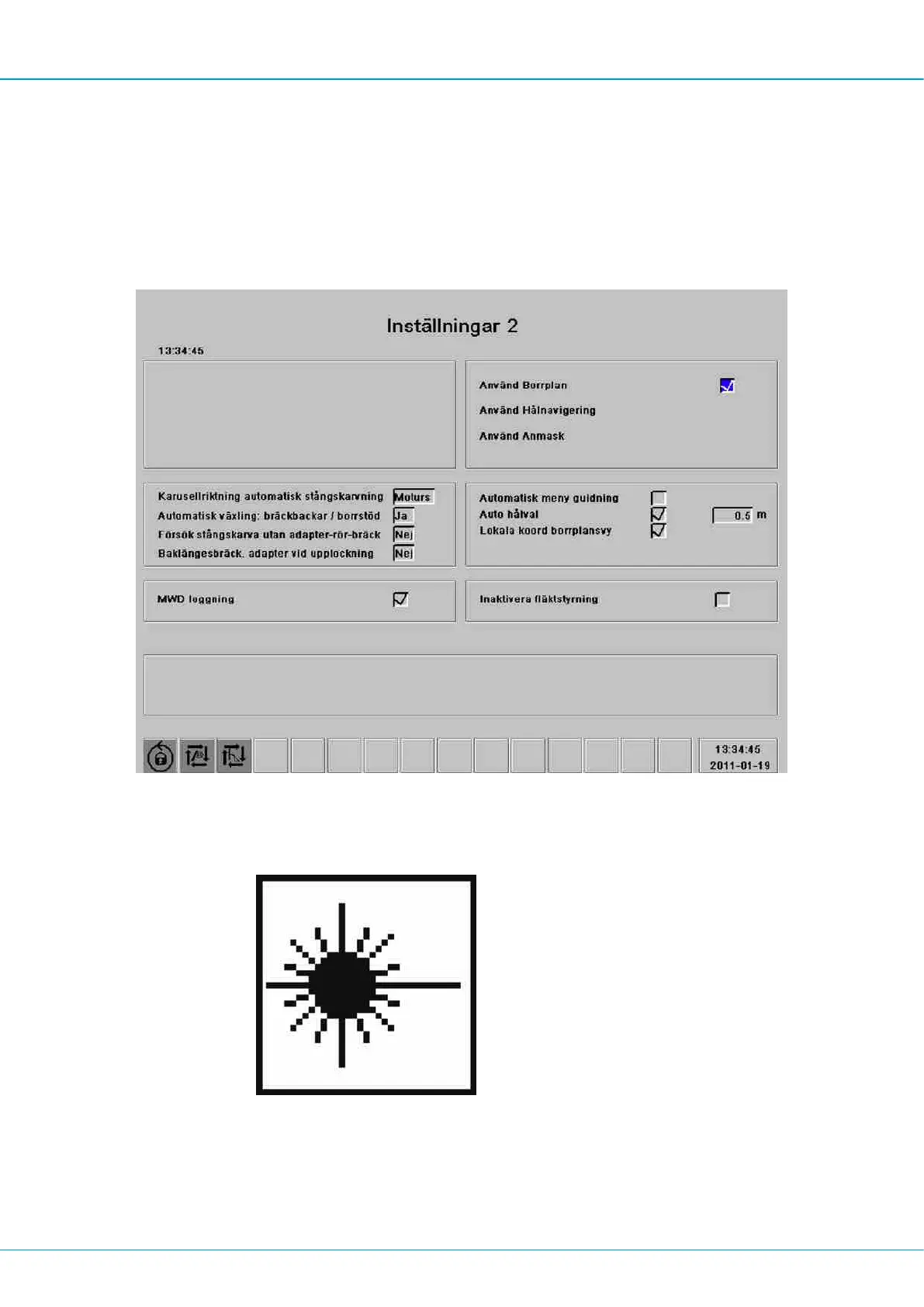

The laser plane function is activated in Direct selection menu - F2 and the function is indic-
ated in the display's status bar.
Direct selection menu - F2.
1.
Activation of Laser plane: Highlight the field by scrolling with the arrow keys until
the button turns blue and then press Enter to open the active field, choose On/Off and
confirm the selection with Enter.
Laser plane indication
2.
Laser plane function indication: The indicator is lit in the status field of the display
when the function is active. Once the laser receiver has registered the laser plane, the
indicator will change colour from grey to green and the drilled length value will then be
calculated from the laser plane level.
