Sampler control unit

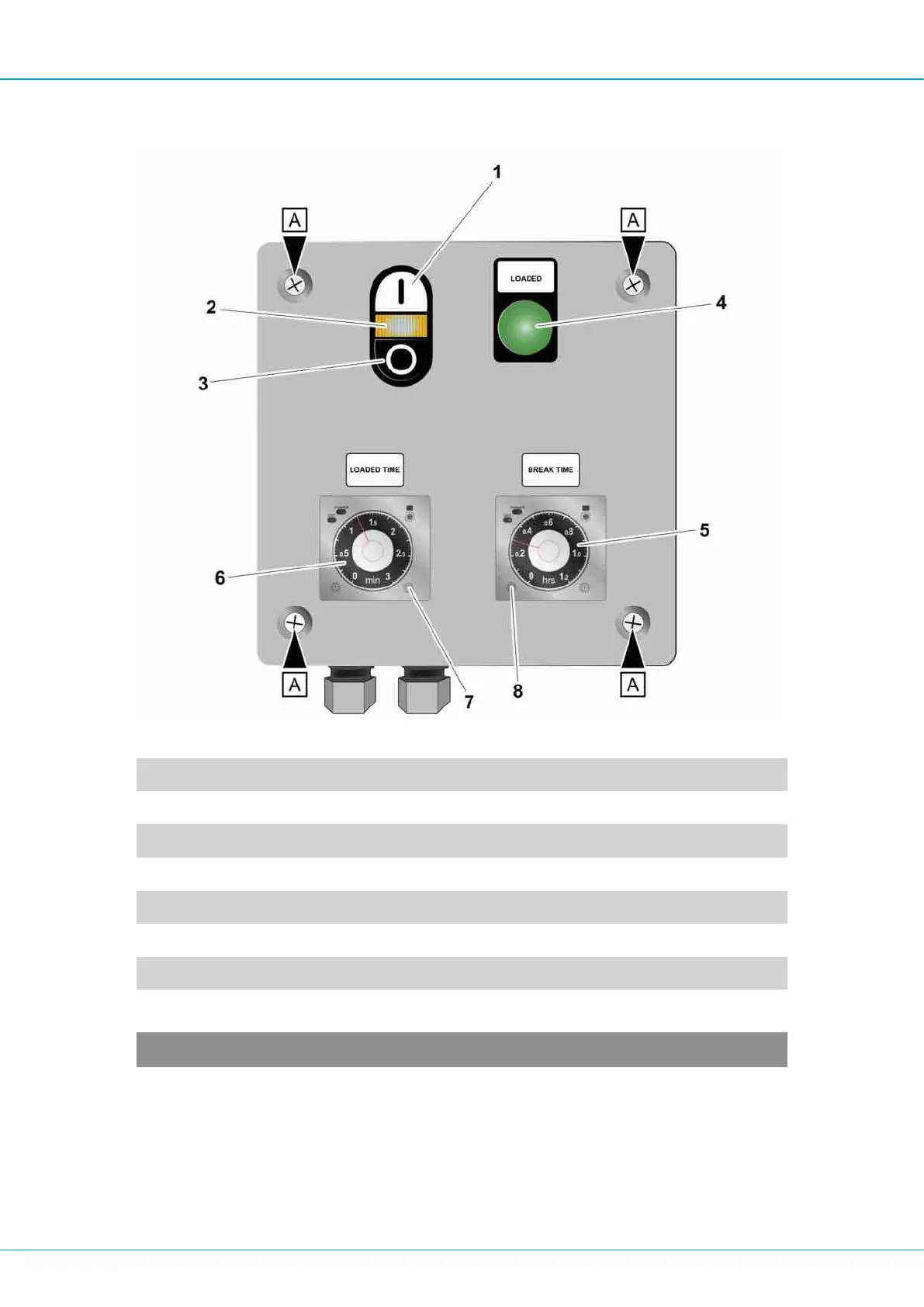

Control unit
1 ON button - start sampling.
2 If the light (2) comes on, sampling is in progress.
3 OFF button - stop sampling.
4 If the light (4) comes on, sampling is complete.
5 Pressure gauge that shows the interval time between each sampling.
6 Pressure gauge that shows the number of minutes cuttings will be filled in the sample holder.
7 Screw for adjusting the number of minutes cuttings will be filled in the sample holder.
8 Screw for adjusting the interval time between each sampling.
Image Description
10.12.2 Operation
1.
The sampler is started and stopped using the ON (1) and OFF (3) buttons.
2.
At the start of each new test sequence the sampler is driven backwards for a prede-
termined time to clear the screw of any remaining cuttings.
