SmartROC D65 T4F 5 Controls
47 No: 713944459.6 en
Button Description Function
F6-F8 Not used
Table15: Button functions, Display.

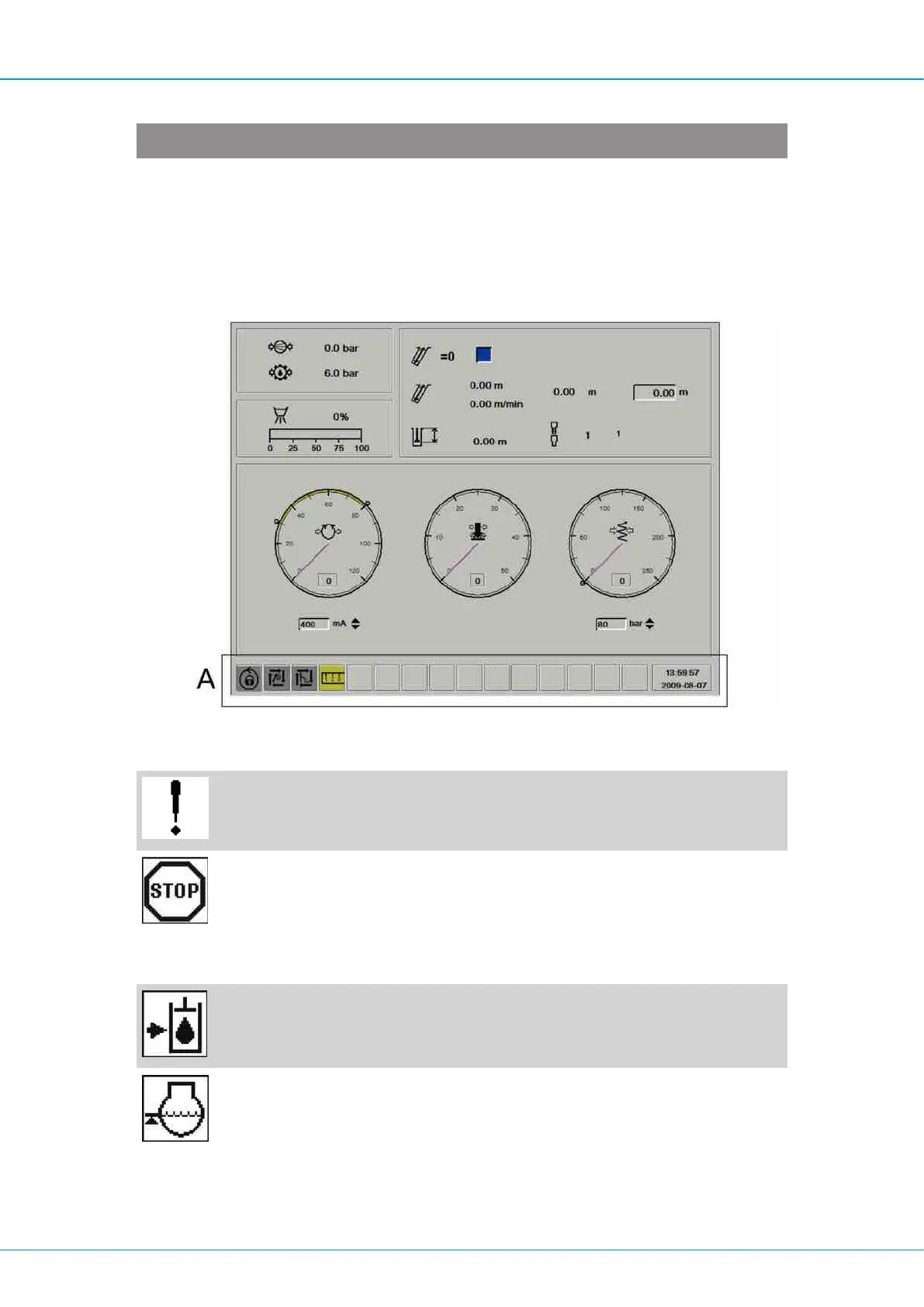

5.1.8 Status bar icons
In the lower section of the display window in menus F1 to F5, is a "status bar". This bar dis-
plays different types of symbols to illustrate the events on the drill rig.
A: Status bar
The following is a list of the symbols and their meaning.
Yellow/Red warning/fault General warning - fault symbol.
Always in combination with prin-
tout in event log.
Red fault Emergency stop activated. The
icon is activated when any one
of the emergency stops has
been activated. The diesel en-
gine is switched off automatic-
ally.
Red fault Hydraulic oil level low. The
diesel engine turns off automat-
ically if a fault occurs.
Yellow/Red warning/fault Engine coolant level low. The
diesel engine turns off automat-
ically if a fault occurs.
