SmartROC D65 T4F 10 Options
174 No: 713944459.6 en
1.
Make sure that the hose and the filter are clean.
2.
Connect the attached hose to the fuel source.
3.
Move switch (B) to position 1.
4.
Activate switch (A) to start filling.
The electric filler pump will stop automatically when the drill rig fuel tank is full. It will also
stop if the source of fuel runs out.
10.7 Water mist system
10.7.1 Water mist system
Operation
For the watermist system to be activated requires that the flushing air is activated.
n The water tank must be filled with pure water and possibly dust binding additive
through the filler valve on top of the tank (A).
n The tank can be drained through the valve on the bottom of the tank (B).

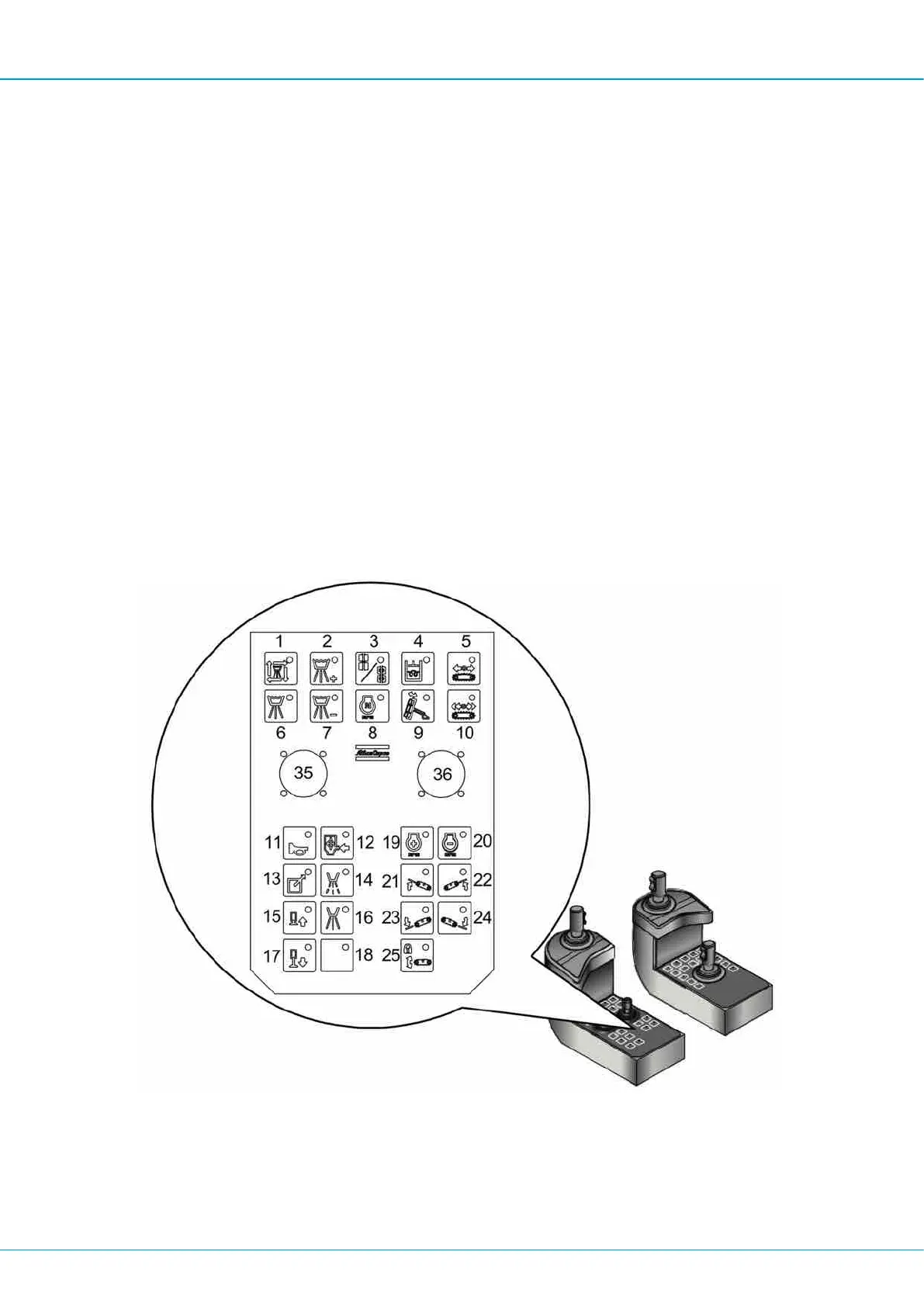

n Buttons 1, 2, 6 and 7 on the left-hand control panel control the water mist:
Left control panel
n Button (1) varies between OFF and a reduced amount of water. The amount can then
be increased with button (2) and decreased with button (7).
n Button (6) gives the full amount of water.
To prevent clogging suction hoses and filters, the dust collector should be switched off if
the dust is damp or if water is being flushed out of the hole.
