SmartROC D65 T4F 6 Operating

83 No: 713944459.6 en

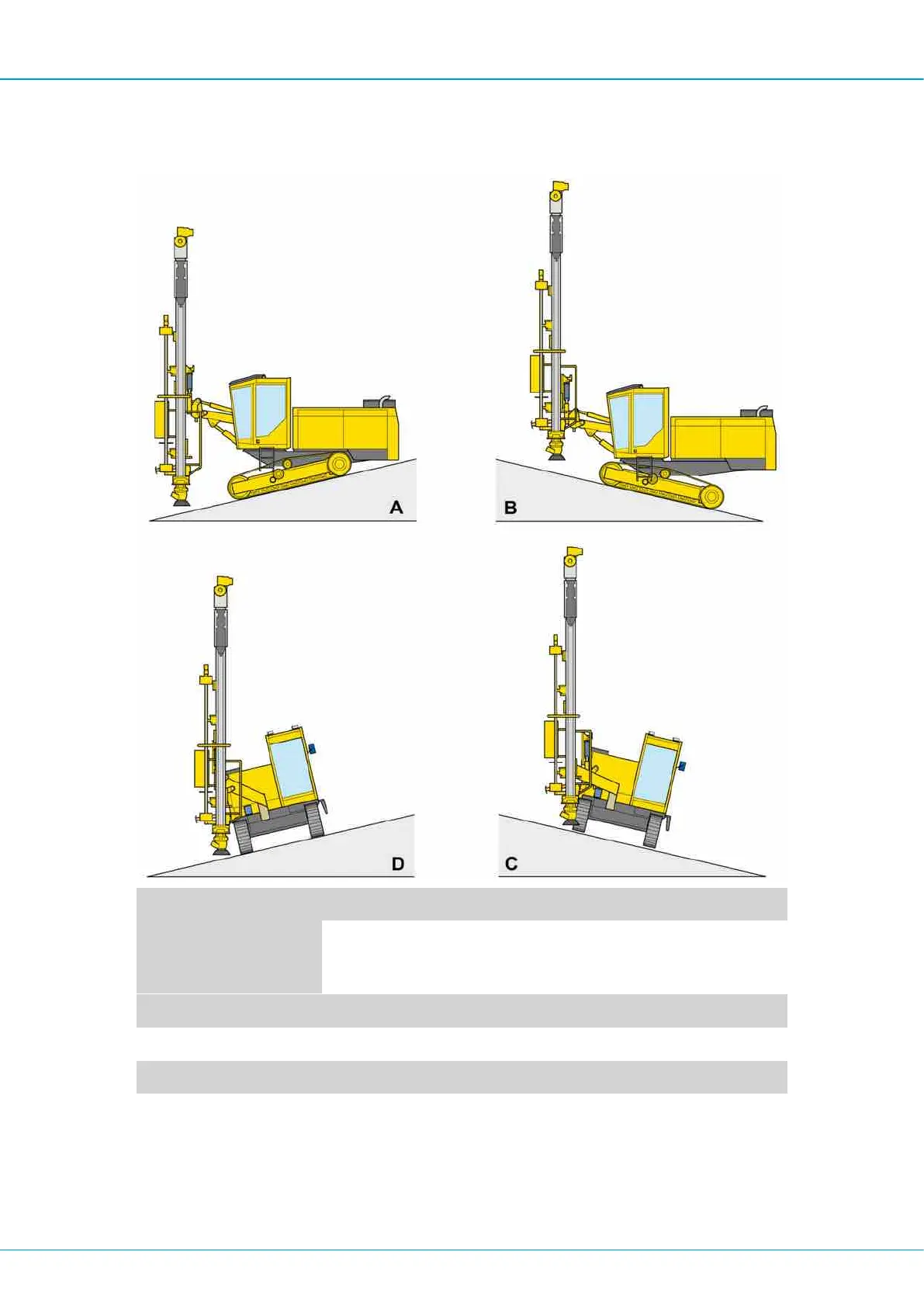

6.12.5 Setting-up for drilling with the feeder in vertical position and

the boom swung max to right

Illustration

reference

Direction Max. angle of inclination

FR D50/D55

SF - SR

D60/65 SF

FR/SR D60/

D65 LF

FR/SR D60/

D65 RC LF

FR/SR D60/

D65 W LF

FR/SR D60/

D65 W + RC

A Forward

20 18 17 19 20

B Backward 20 20 20 20 20

C Left 20 20 20 20 20

D Right 14 16 20 20 20

Table of Contents5
General9
Foreword9
Application9
Principal Components10
General System Description11
General Description of the Drill Rig11
Wagon Frame with Track Frames12
Power Pack12
Exhaust Filtering (Tier 4 Final)12
Boom System13
Dust Collector13
Electrical System13
Hydraulic System13
Air System15
Protection of Moving Parts15
Technical Data17
Smartroc D65 (Tier 4)17
Weight (with Drill Strings)17
Performance17
Electrical System18
Air System18
Capacities18
Air Conditioning Unit18
Miscellaneous18
Dimensions19
Dimensions Smartroc D65 Long Feed (Tier 4)19
Dimensions Smartroc D65 Short Feed (Tier 4)22
Daily Checks25
Foreword25
Extra Safety Check25
Safety25
Checklist26
Before Starting27
Safety27
Breakout Table/Rod Guide28
Drill Rig29
Engine Package30
Compressor Tank31
Track Frames32
Electrical System33
Functionality Test after Start34
Checks34
Function Test While Drilling34
Down-The-Hole Rock Drill (DTH)34
Display35
Dust Collector (DCT)35
Drill Rig35
Cleaning the Rig36
Rinsing36
Controls37
Control37
General37
Cabin37
Left Control Panel38
Right Control Panel42
Boom and Feed Handling Levers44
Tramming Levers45
Display46
Status Bar Icons47
Operator's Panel for Operator's Cabin52
Hammer for Emergencies54
Fire Extinguisher54
Other Controls55
Electrical Cabinet55
Test Connections for the Hydraulic Circuits56
Operating59
Before Starting59
To be Checked before each Start59
Checks59
Functionality Test after Start60
Checks60
Function Test While Drilling60
Diesel Engine Starting61
Stopping the Diesel Engine63
Delayed Engine Shutdown - (DES)66
Description66
Low DEF Levels67
Regeneration68
General68
Automatic Regeneration69
Blocked Regeneration70
Forced Regeneration71
Warning of High Soot Content in the Particulate Filter72
Warning of 100% Soot Content73
Warning Symbols for Regeneration73
Tramming74
Safety74
Operation75
Checking after Tramming77
Tramming - General Principles77
Tramming, General77
Tramming, Uphill77
Tramming, Downhill78
Tramming on Transverse Inclines78
Maximum Permitted Angles of Inclination During Tramming and Setting-Up for Drilling78
Tramming with the Feeder in Tramming Position79
Tramming with the Feeder in Vertical Position and Centred between the Track Frames79
Setting-Up for Drilling with the Feeder in Vertical Position and Centred between the Track Frames81
Setting-Up for Drilling with the Feeder in Vertical Position and the Boom Swung Max to Left82
Setting-Up for Drilling with the Feeder in Vertical Position and the Boom Swung Max to Right83
Setting-Up for Drilling with the Feeder Top in Extreme Position Forwards, the Feeder Laterally Ver84
Setting-Up for Drilling with the Feeder Top in Extreme Position Forwards and to the Left, and with85
Setting-Up for Drilling with the Feeder Top in Extreme Position Forwards and to the Right, and86
Before Drilling87
Safety87
Calibration of the Rotation Unit87
Setting Feed Pressure88
Loading the Rod Carousel88
Setting up for Drilling91
Drilling93
Start of Drilling93
Collaring93
One Hole Automatics (OHA)96
Direct Selection Menus102
Direct Selection Menu F1103
Direct Selection Menu F2105
Direct Selection Menu F3107
Direct Selection Menu F4109
Direct Selection Menu F5110
Adding Drill Rods112
Unthreading of the Rotation Unit from the Drill Pipe and Extraction112
Threading a New Drill Pipe114
Changing Drill Bit115
Action in Case of Drilling Problems116
Angle Instruments117
Angle, Depth and Laser Instrument117
Angle Instrument with Sight117
Angle Instrument Menu117
GPS Compass (Option)121
Drill Plan125
Calibration129
Depth Measuring System131
Depth Measurement Menu131
Laser Plane Instrument (Option)134
Laser Menu135
Operation136
Options137
Fire Suppression System137
Semi Automatic Fire Suppression System137
Manual Fire Suppression System139
After a Fire139
Rig Remote Access (RRA)140
General140
Transmission of a Drill Plan to the Rig Via RRA141
Transmission of Data Files from the Rig to a PC Via RRA142
Hns143
General143
Lincoln Quicklub148
System Description148
Central Lubrication Pump QUICKLUB 203 CS149
Safety Instructions155
Timer 236438624 with Adjustable Interval Time156
Interval Time - Propagation Time156
Test/Extra Lubrication157
Timer Terminal159
Progressive Lubricant Distributor, Type SSV161
Plugging the Outlet168
Technical Data170
Thread Lubrication172
General172
Electric Filler Pump173
Electric Pump for Filling Fuel173
Water Mist System174
Service Winch175
General Instructions175
Navigation176
Menus176
Reverse Camera181
Description of the Display181
RC - Reverse Circulation185
General185
Functional Description of RC Components185
Drilling and Sampling195
Operation of Metzke Blowdown Valve195
Daily Maintenance196
Screw Sampler198
General198
Operation199
Consumables Logging Function200
General200
Use of Consumables Function201
Administration of Consumables Function202
Fuel Saving Unit209
Air Pressure and Air Flow209
Activate aux Air Pressure and Hydraulic Pressure209
