Atlas Copco SmartROC D65 T4F User Manual

SmartROC D65 T4F 10 Options
168 No: 713944459.6 en
10.4.9 Plugging the outlet

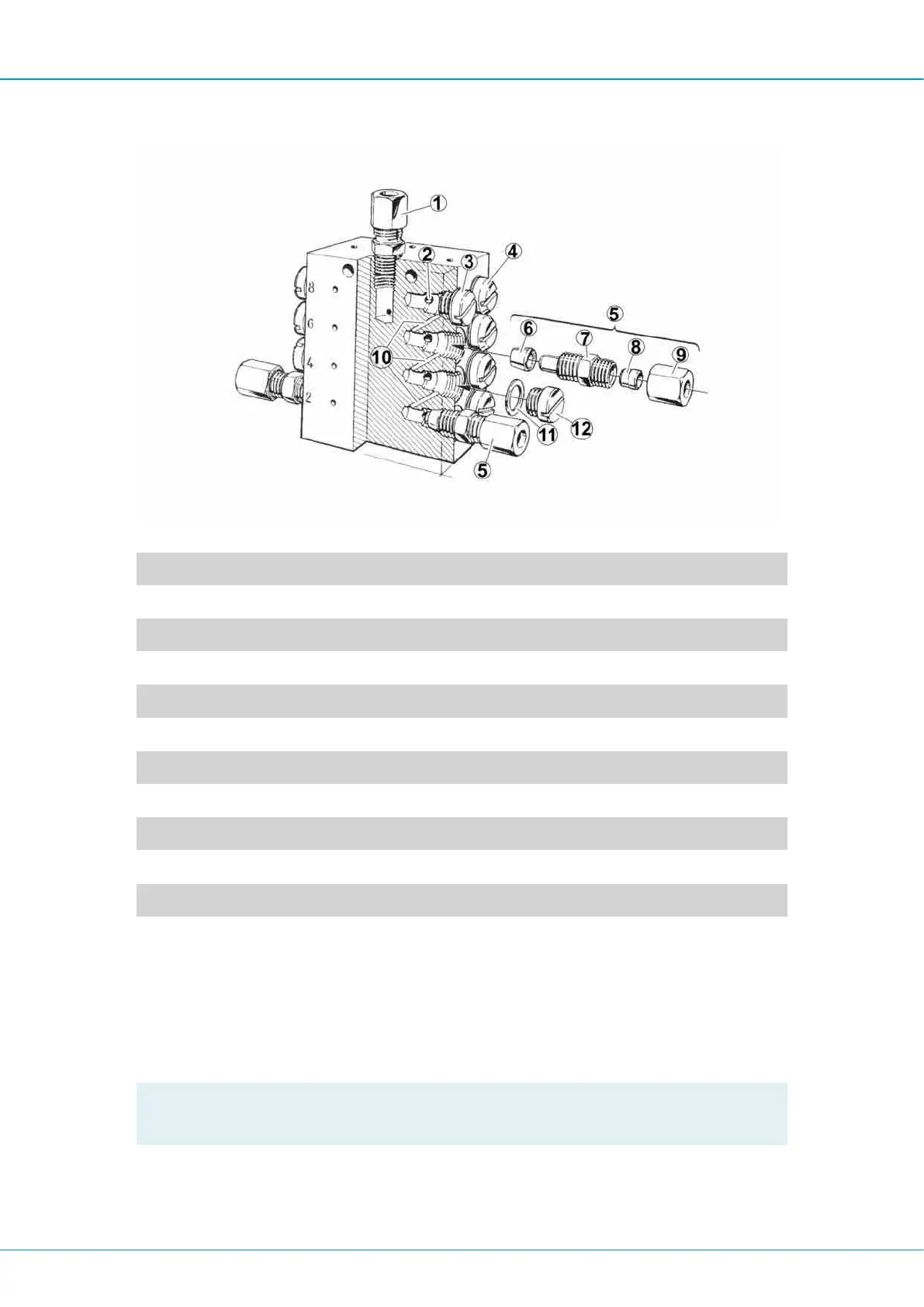

Fig. 26 - Outlet couplings and plugs
1 Inlet coupling
2 Channel from piston
3 Plug, screwed in
4 Plug, for piston
5 Check valve, kit
6 Brass cone
7 Valve body
8 Ferrule
9 Union nut
10 Connection channel
11 Copper washer
12 Plug
n The amount of lubricant can be increased by plugging outputs.
n Set a complete outlet coupling in each output that is to be used. See Fig. 26 and 27.
n The plug (4) that sits at the piston is recognisable by its bevelled edge. It must never
be unscrewed.
n Never replace plug (12) with plug (4).
!
NOTE: The valve body (7) must be used together with the brass cone (6).
n The brass cone (6) closes the connection channel (10) and must never be used to-
gether with plug (12).
