SmartROC D65 T4F 10 Options
169 No: 713944459.6 en
!
NOTE: For distributors SSV 6 to SSV 12, you must never use plugs in outputs 1 and/or
2. For distributors SSV 14 to SSV 22, you must never use plugs in the outputs with the
highest number. Should one of these outputs be plugged, the entire distributor will be-
come blocked.

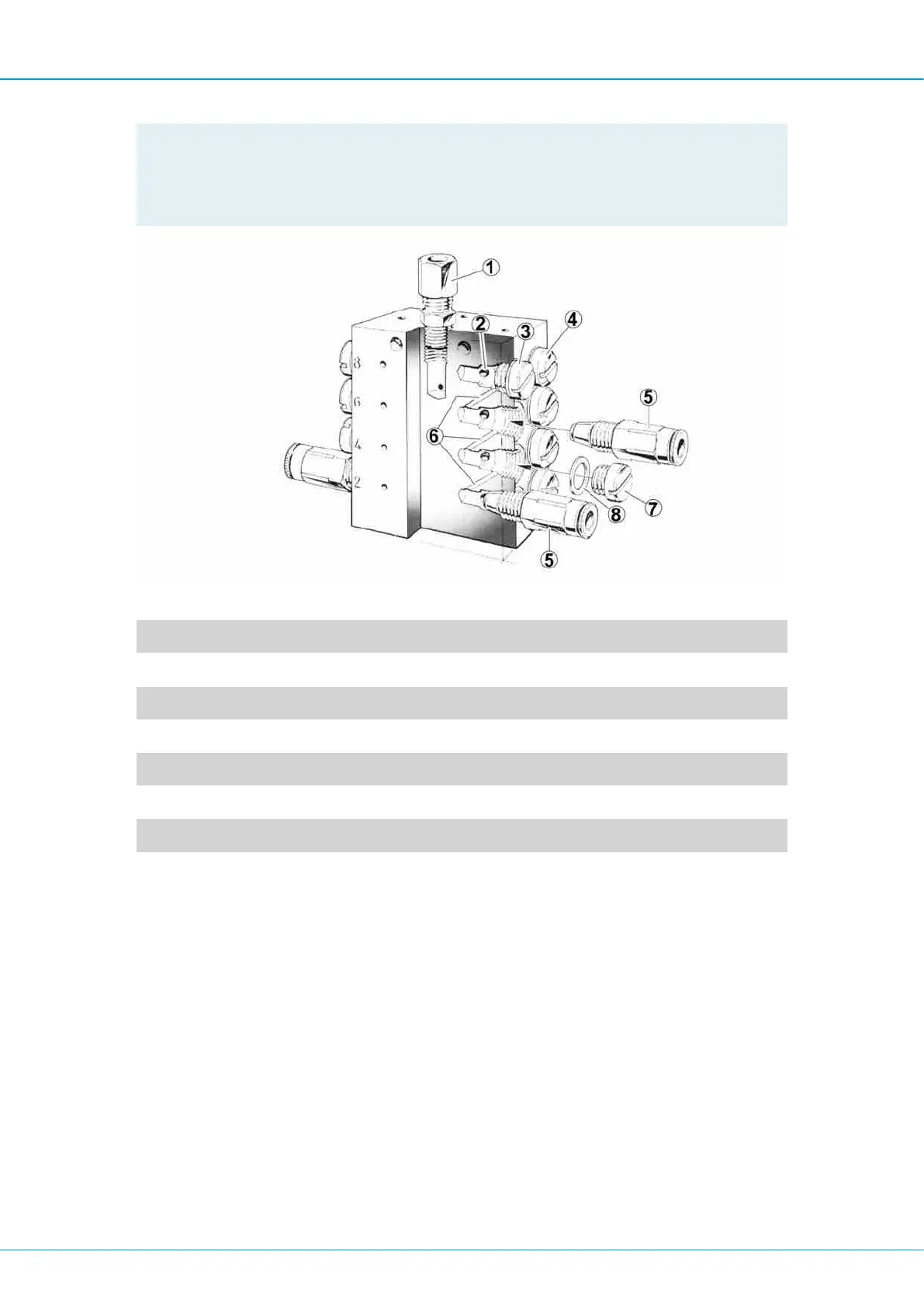

Fig. 27 - Outlet couplings and plugs
1 Inlet coupling
2 Channel from piston
3 Plug, screwed in
4 Plug for piston
5 Valve body
6 Connection channel
7 Plug
8 Copper washer
Single amount of lubricant
n The single amount of lubricant is the amount that comes from one output with one pis-
ton stroke. The amount is 0.2 cm
3
Outputs linked in series
n If any of the lubrication points require more lubricant, one or more outputs can be
plugged.
n In Fig. 28, output 10 is plugged. The amount of lubricant that should have come out
here goes through the connection channel and out through output 8.
n Total amount in output 8:
l output 8's "own" amount
l plus the amount from output 10
n outputs that are above the output from which lubricant comes out, etc. See Fig 28 out-
puts 1, 3 and 5
