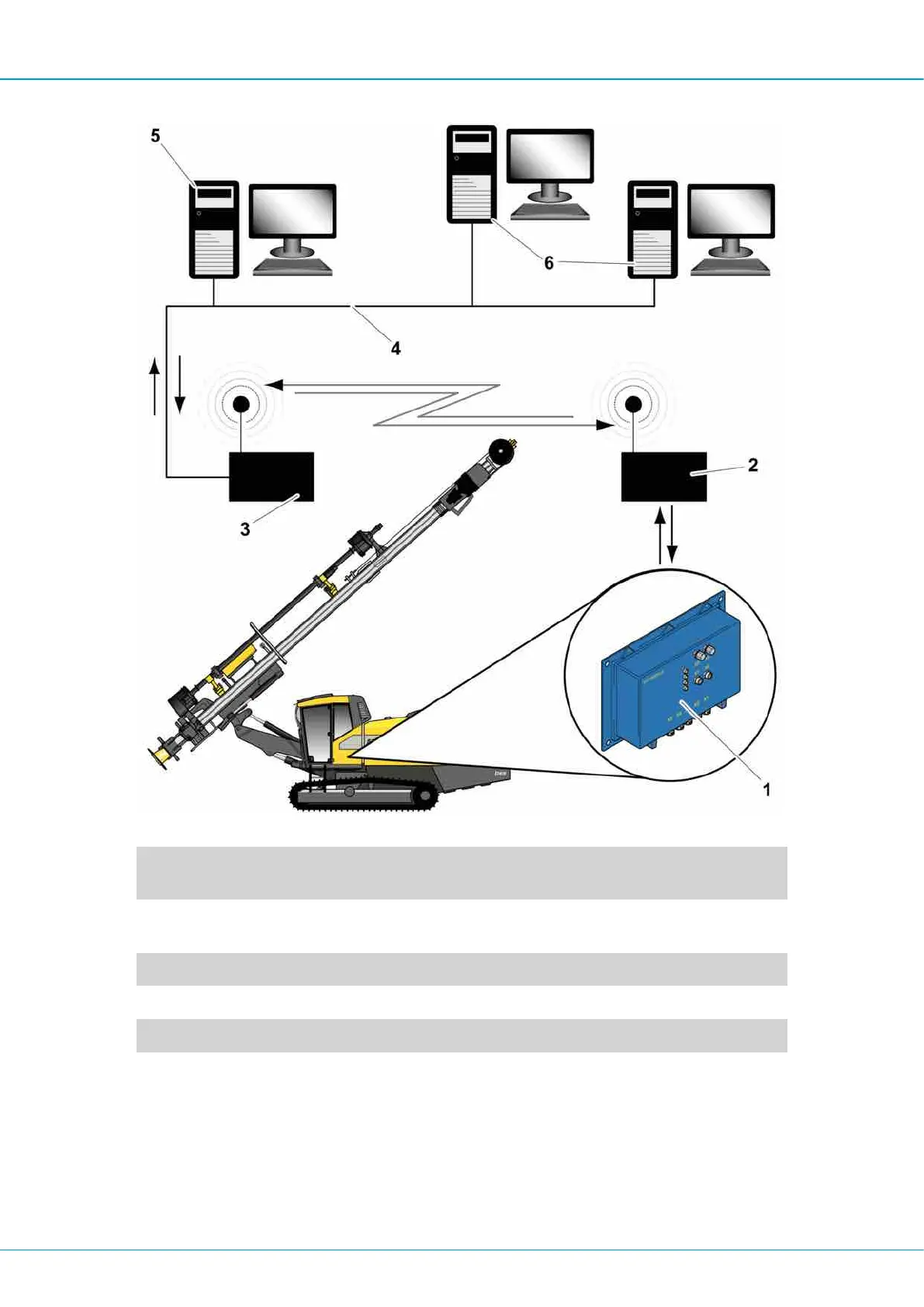

Overview of a typical RRA system.
1) CCI (Common Communication Interface on drill
rig)
2) Rig wireless access point (WLAN module on drill
rig)
3) WLAN Router (Wireless Local Area Network)
4) Internal Ethernet network
5) PC installed with RRA server software.
6) PCs installed with RRA client software.
10.2.2 Transmission of a drill plan to the rig via RRA
Before files (e.g. a drill plan) can be transferred to and from a rig via RRA, the RRA system
must be installed as shown in the diagram above.
