SmartROC D65 T4F 6 Operating
78 No: 713944459.6 en
6.11.3 Tramming, downhill
The boom and rock drill/rotation unit must be as far back as possible.

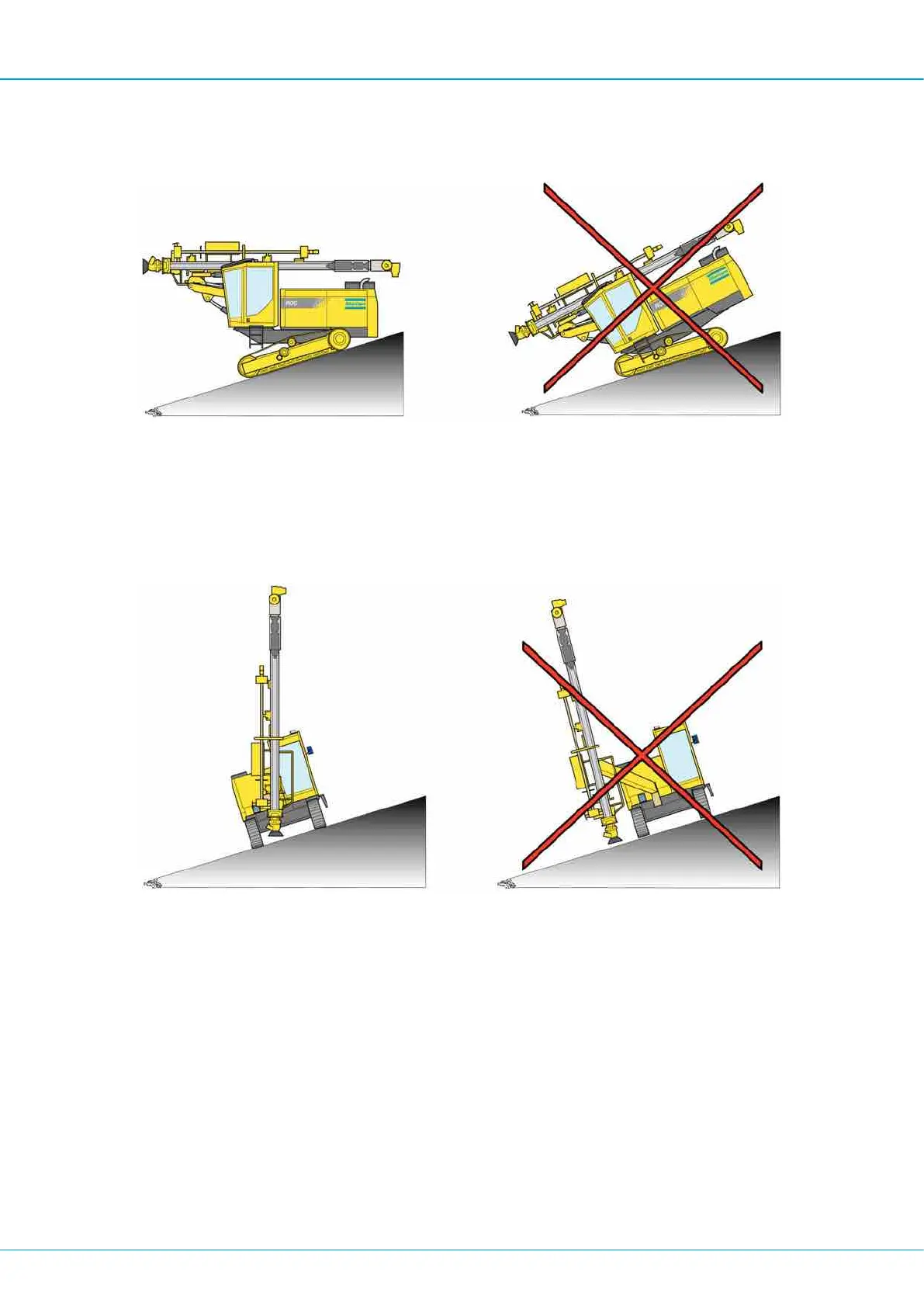

Left: Correct position for tramming downhill. Right: Wrong position.
6.11.4 Tramming on transverse inclines
Use the boom system as a counterweight when traversing inclines.
NOTICE! The risk of slipping is greatest when tramming on a transverse incline.
NOTICE! Always observe ground conditions.
Left: Correct position for traversing inclines. Right: Wrong position.
6.12 Maximum permitted angles of inclination during
tramming and setting-up for drilling
The angles refer to the ground inclination and not the inclination of the rig.
Track oscillation must always be open during tramming and track oscillation must always
be locked during setting-up for drilling.
