Atlas Copco SmartROC D65 T4F User Manual

SmartROC D65 T4F 9 Angle instruments
120 No: 713944459.6 en
11.
Move the cursor and make the desired settings by moving the cursor with the arrow
keys, at the desired setting, press Enter. Select the value using the arrow keys and
confirm with Enter. Once the desired settings have been made, move the cursor to
Execute and confirm with Enter.
12.

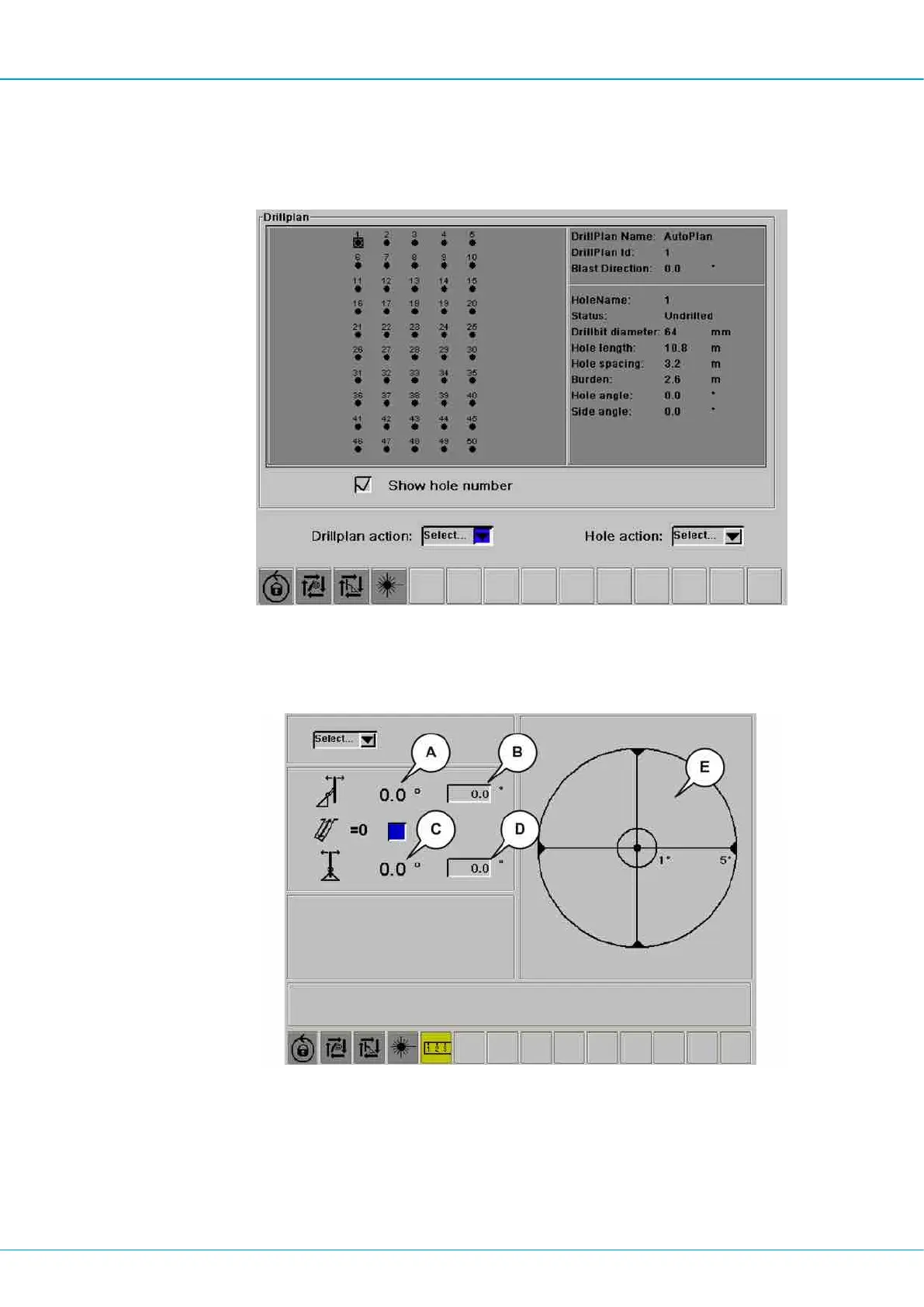

The selected settings are now displayed to the right and the drill plan to the left of the
menu.
13.
Now use the arrow keys to highlight the whole upper part of the menu and confirm
with enter. You can then select a hole using the arrow keys and pressing enter.
14.
The set angles will automatically be included in the menu. Use the boom positioning
lever or autofeed-button (button 34 on right drill lever) (option) to set the angles.
15.
Select menu F1.
