SmartROC D65 T4F 10 Options

145 No: 713944459.6 en

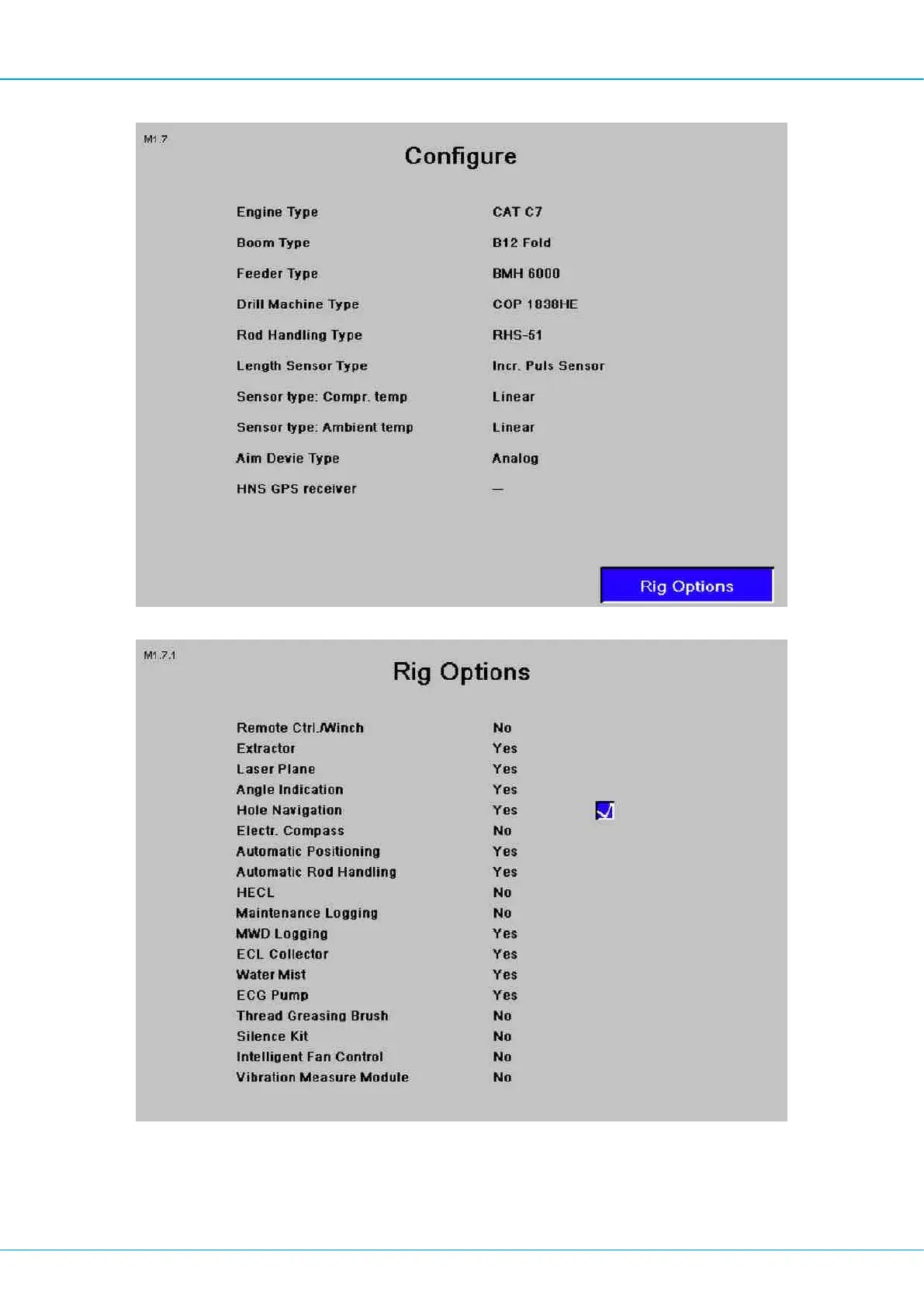

Select Rig Options

Hole navigation is ticked or unticked. Then follow the instructions that appear on the

screen.

Menus F1, F2 and F4 will be changed depending on this option.
