SmartROC D65 T4F 7 Before drilling
90 No: 713944459.6 en
Feeder position for filling drill steels.

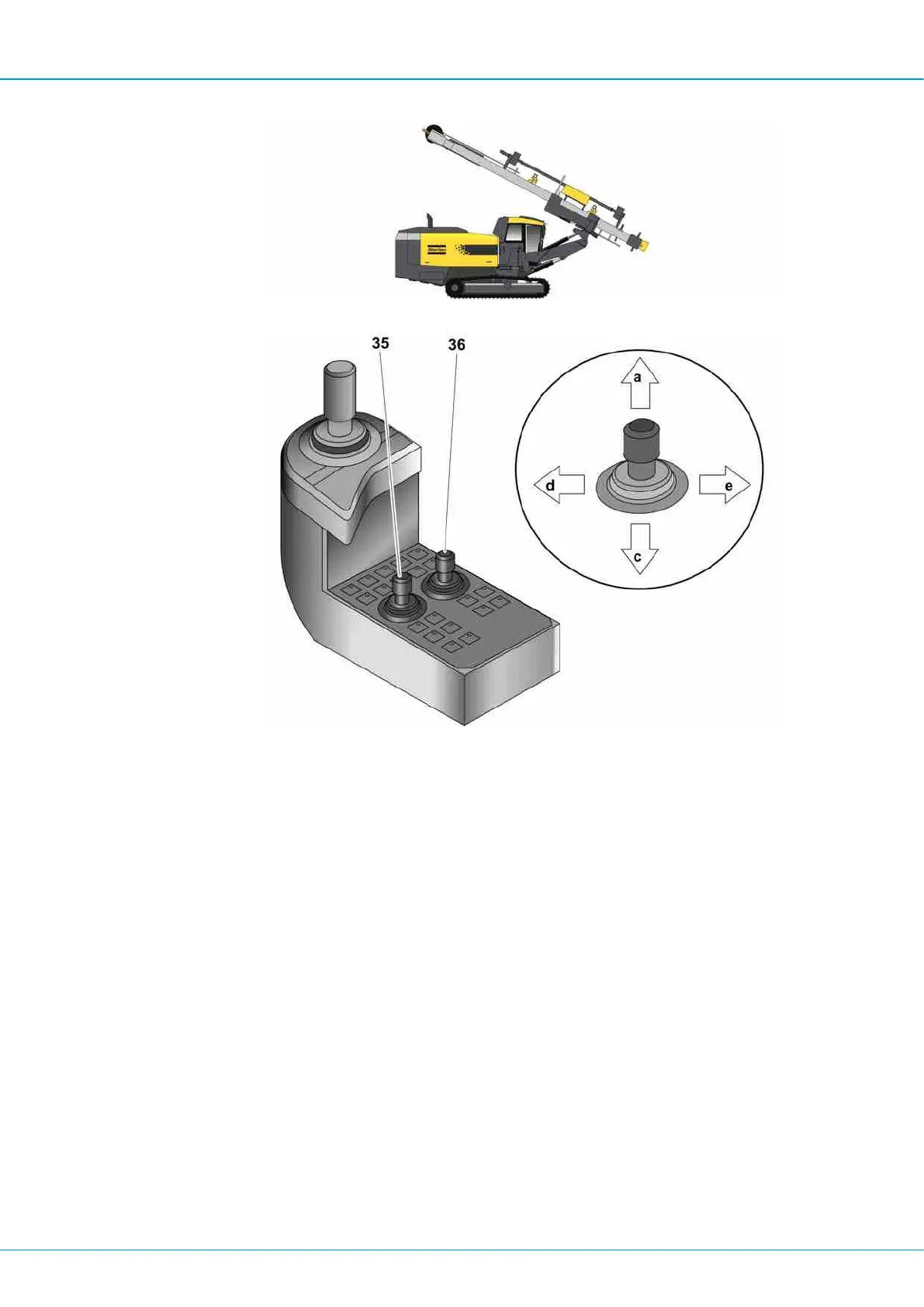

Boom and feeder positioning levers.
4.
Move the arms out from the carousel by moving the rod handling lever (35) to position
(c).
5.
Rotate the carousel anticlockwise by moving the rod handling lever (35) to rotation
anticlockwise (e) repeatedly until the carousel has reached its end position.
6.
Activate the rapid feed stops to obtain the correct stops. Button 32, right control panel.
7.
Operate the rotation unit down to its lower position. Drill lever position (a)
8.
Open both drill-steel supports. Lever 36, position (c) and then press the top button
and move the lever to position (c) again
9.
Insert the first drill pipe through the drill-steel supports (use suitable lifting equipment).
Then close the drill-steel supports so they grip the drill pipe, Lever 36, position (a).
Then press the top button and move the lever to position (a) again.
When the drill-steel supports are closed the pipe may move suddenly. Make sure that
no-one is in the vicinity of the pipe.
10.
Thread together the rotation unit and drill pipe. Drill lever position (g).
11.
Open both drill-steel supports. Lever 36, position (c) and then press the top button
and move the lever to position (c) again
