SmartROC D65 T4F 7 Before drilling
92 No: 713944459.6 en

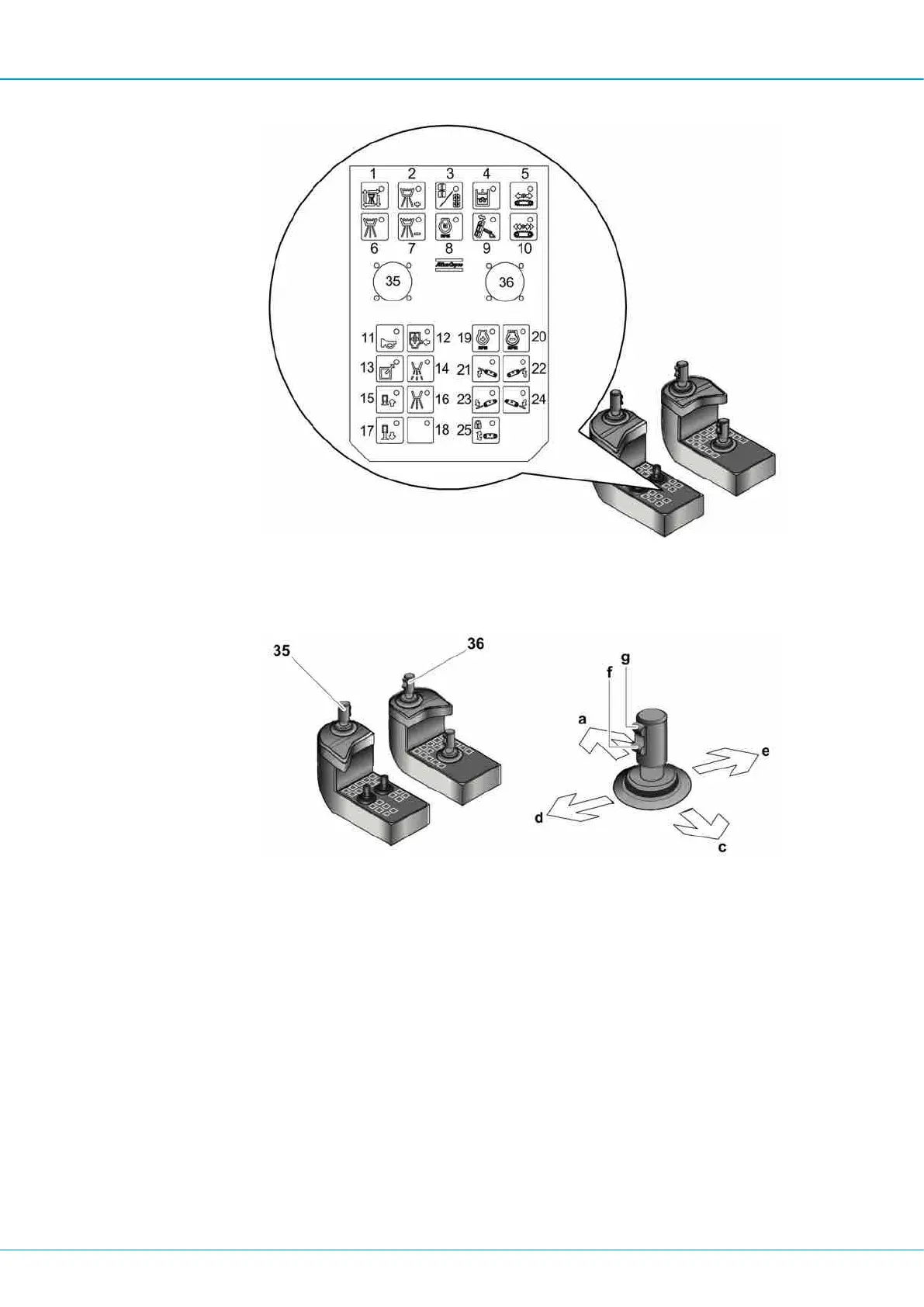

Left control panel.
2.
Lower the jack (option) firmly on the ground without lifting the drill rig. Button (17).
3.
Lock the track oscillation cylinders. Button (25).
Boom and feeder positioning.
4.
Position the feeder with the levers for boom and feeder positioning correctly posi-
tioned for drilling. Lever (35) and (36).
5.
Set the feed spike firmly on the ground using the feed extension. Lever (35) button in
position (g).
