Disassembly and Replacement Procedures
98

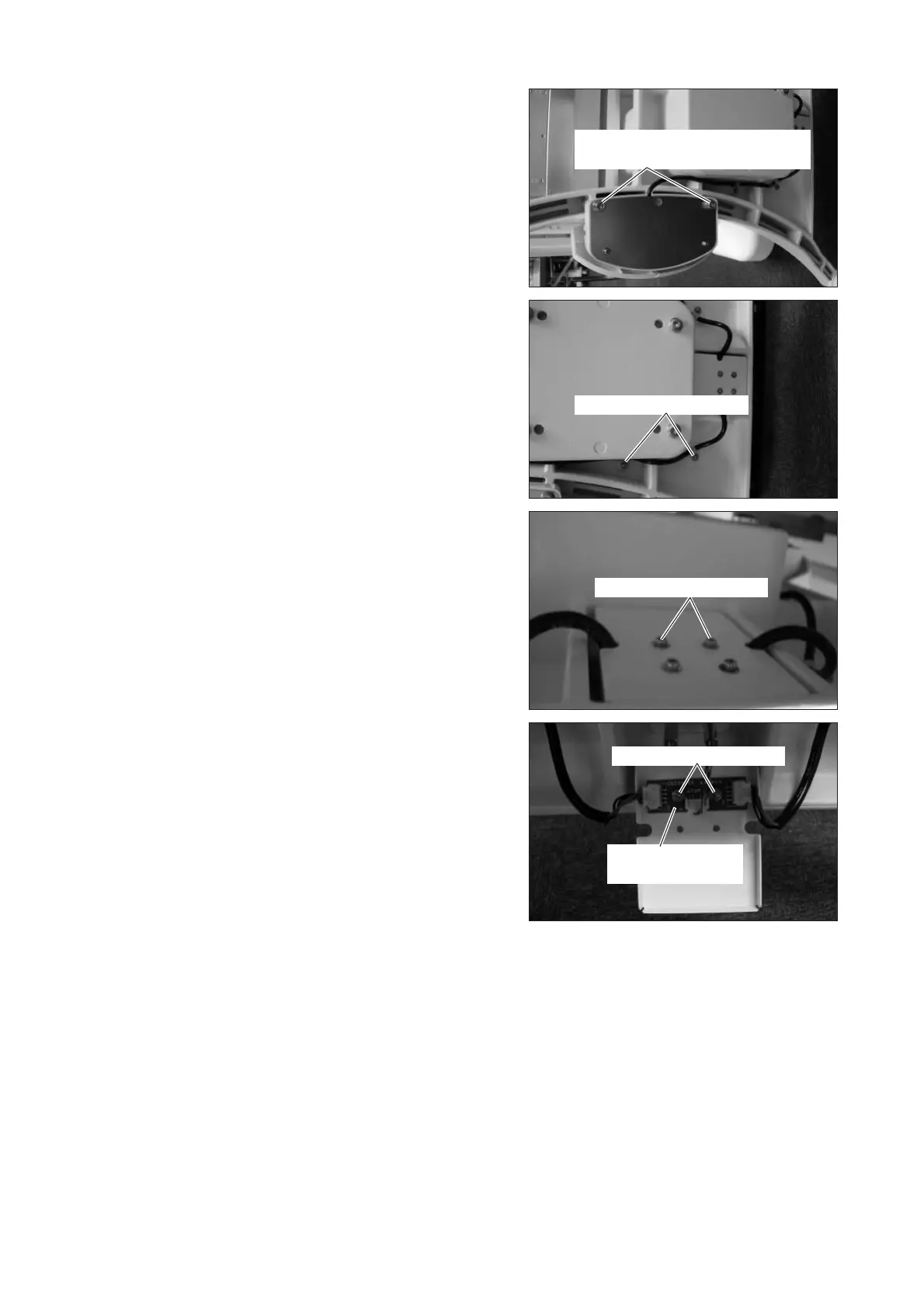

(3) Remove the foot switch from the HL stand base.
Use a hexagon wrench (distance between the oppo-
site sides: 6mm) and remove the two hexagon socket
head cap screws (M8 x 40) along with the spring
washers (M8).
Remove the two double sems screws (M4 x 8) with
a Phillips screwdriver.
Hexagon socket head cap screws
(M8x40) with spring washers (M8)
Double sems screw (M4x8)
(4) Remove the cover of the relay board of the pedals
for height adjustment.
Remove the two double sems screws (M3 x 8) with
a Phillips screwdriver.
Double sems screw (M3x8)
Double sems screw (M3x8)
Relay board of pedals
for height adjustment
(5) Remove the relay board of the pedals for height ad-
justment.
Remove the double sems screw (M3 x 8) with a
Phillips screwdriver and a wrench (distance between
the opposite sides: 5.5mm) and then remove the
connector of the foot switch.
For details, see “[8] Wiring Diagram.”
(6) Reassembly: Reassemble in the reverse order of dis-
assembly.
