Disassembly and Replacement Procedures
102

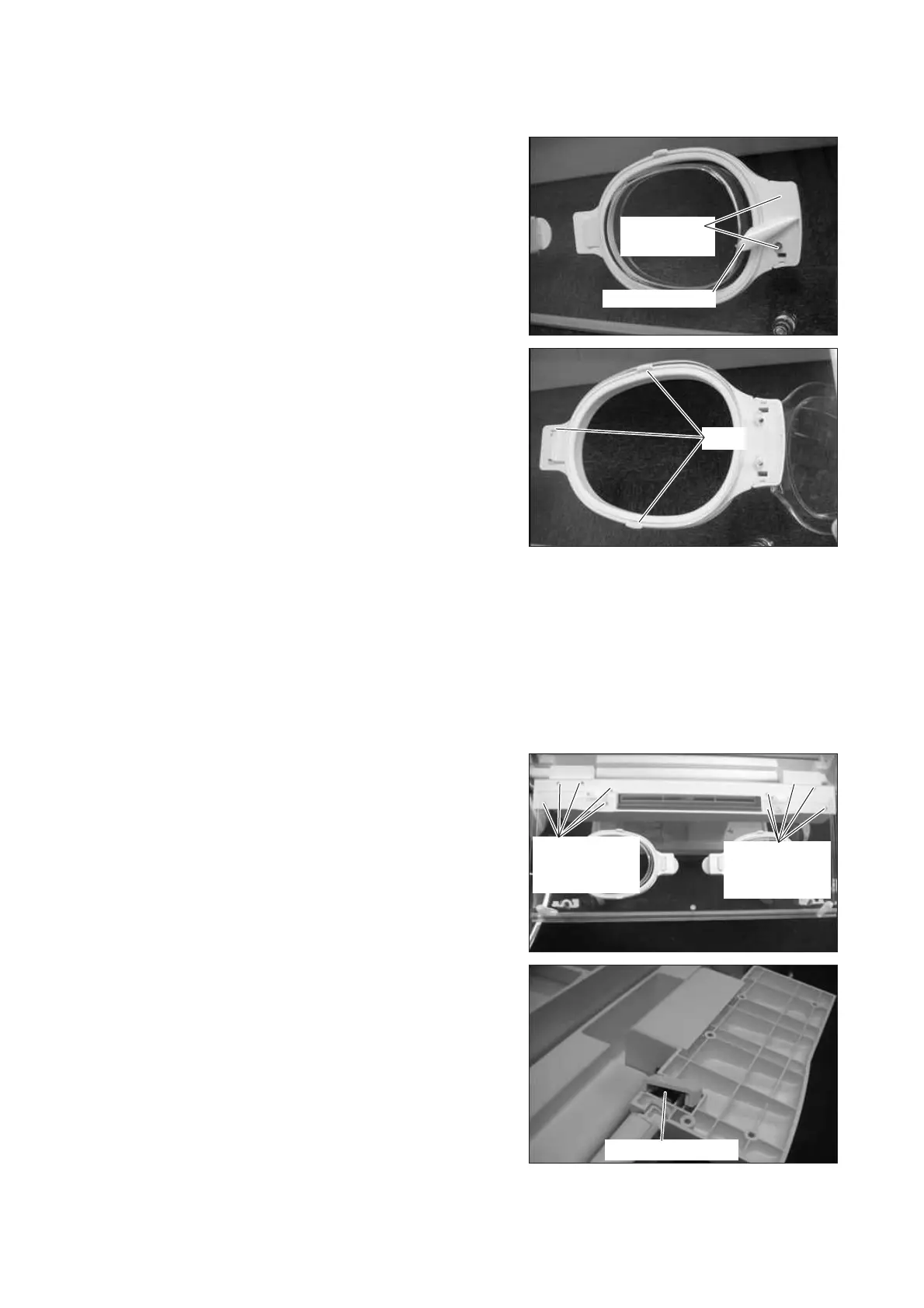

6-2-4. Replacing the Snap-open Access Port S/W
(1) Remove the snap-open access port S/W. Remove the
protective sticker and then remove the two flat head
screws (M4 x 12) with a Phillips screwdriver.
Flat head
screw (M4x12)
Protective sticker
Claw
With the snap-open access port open, detach it from
the three claws on its base.
(2) Follow the same procedure mentioned above to re-
move the other snap-open access ports.
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-2-5. Replacing the Admittance Panel Assembly
(1) Remove the admittance panel.
Remove the ten protective stickers affixed to the ad-
mittance panel. With the X-ray cassette tray door
open, remove the ten flat head tapping screws (M4
x 12) with a Phillips screwdriver.
Flat head
tapping screw
(M4x12)
Flat head
tapping screw
(M4x12)
Torsion coil spring
Torsion coil springs are housed inside the spring
covers of the admittance panel hinges on both sides.
Be careful not to let the torsion coil springs come
off when assembling the admittance panel.
(2) Follow the same procedure mentioned above to re-
move the other admittance panel.
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
