Disassembly and Replacement Procedures
DISASSEMBL
Y
AND REPLACEMENT
115
6-3-11. Replacing the Humidity Chamber Cover Packing A
(1) Remove the upper section of the main body from
the main body.
See (1) ~ (5) in “6-3-1. “Removing the Upper Sec-
tion of the Main Body from the Main Body.”

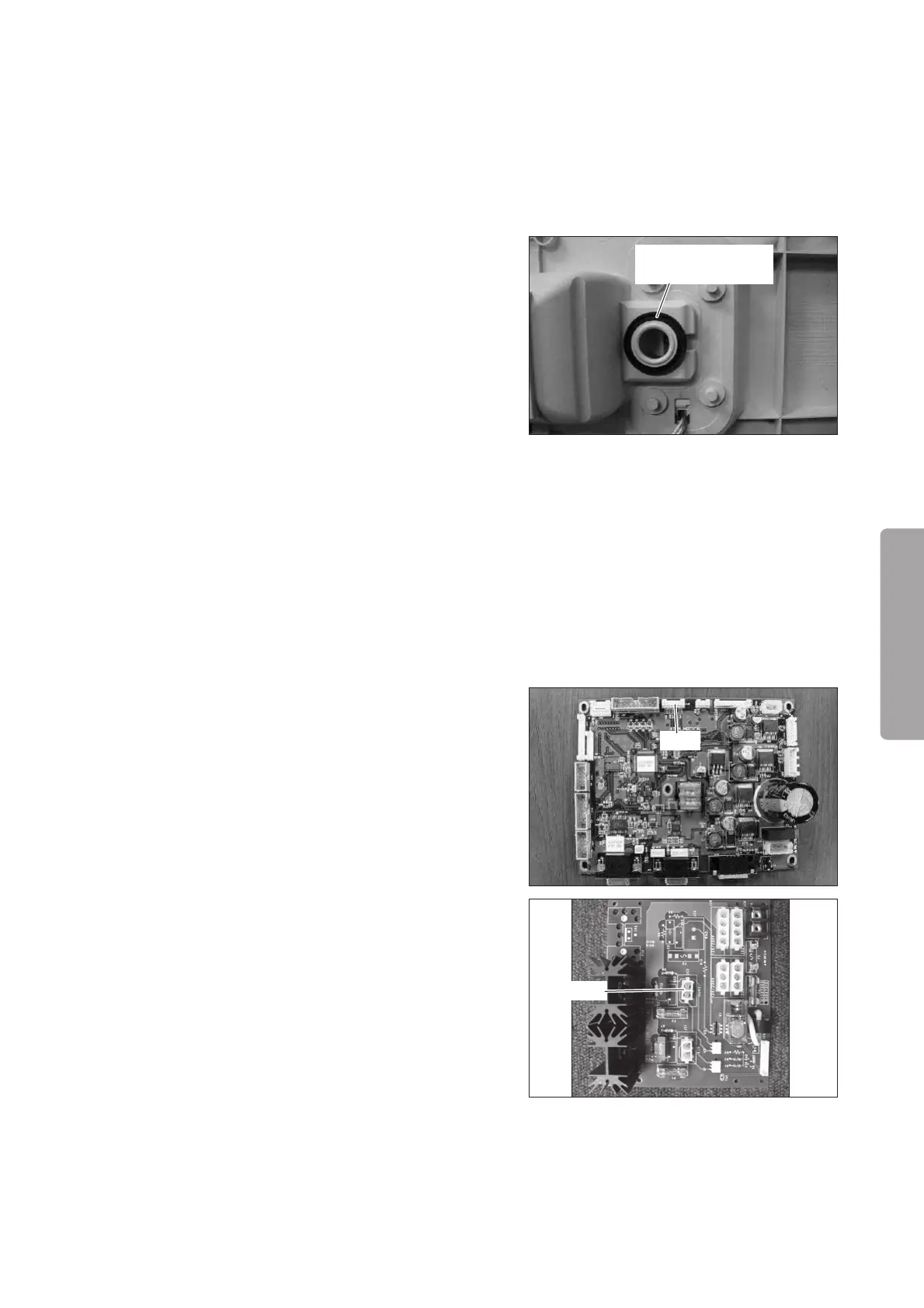

(2) Remove the humidity chamber cover packing A from
the upper section of the main body.
Humidity chamber
cover packing A
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-3-12. Replacing the Humidity Chamber Cradle
(1) Remove the upper section of the main body from
the main body.
See (1) ~ (5) in “6-3-1. “Removing the Upper Sec-
tion of the Main Body from the Main Body.”
(2) Remove the wire.
Remove the connector (JA3) from the control board
(for the Dual Incu i) and the connector (JC2) from
the heater control board (for the Incu i). Remove
the sems screws (M4 x 8) fixing the ground termi-
nal of the humidifying heater. Cut the Tie Wrap fix-
ing the removed wire.
For details, see “[8] Wiring Diagram.”
JA3
JC2
