(4) Reassembly: Reassemble in the reverse order of dis-
assembly.
CAUTION
쎲 Be sure to attach a new packing when replacing
the heater.

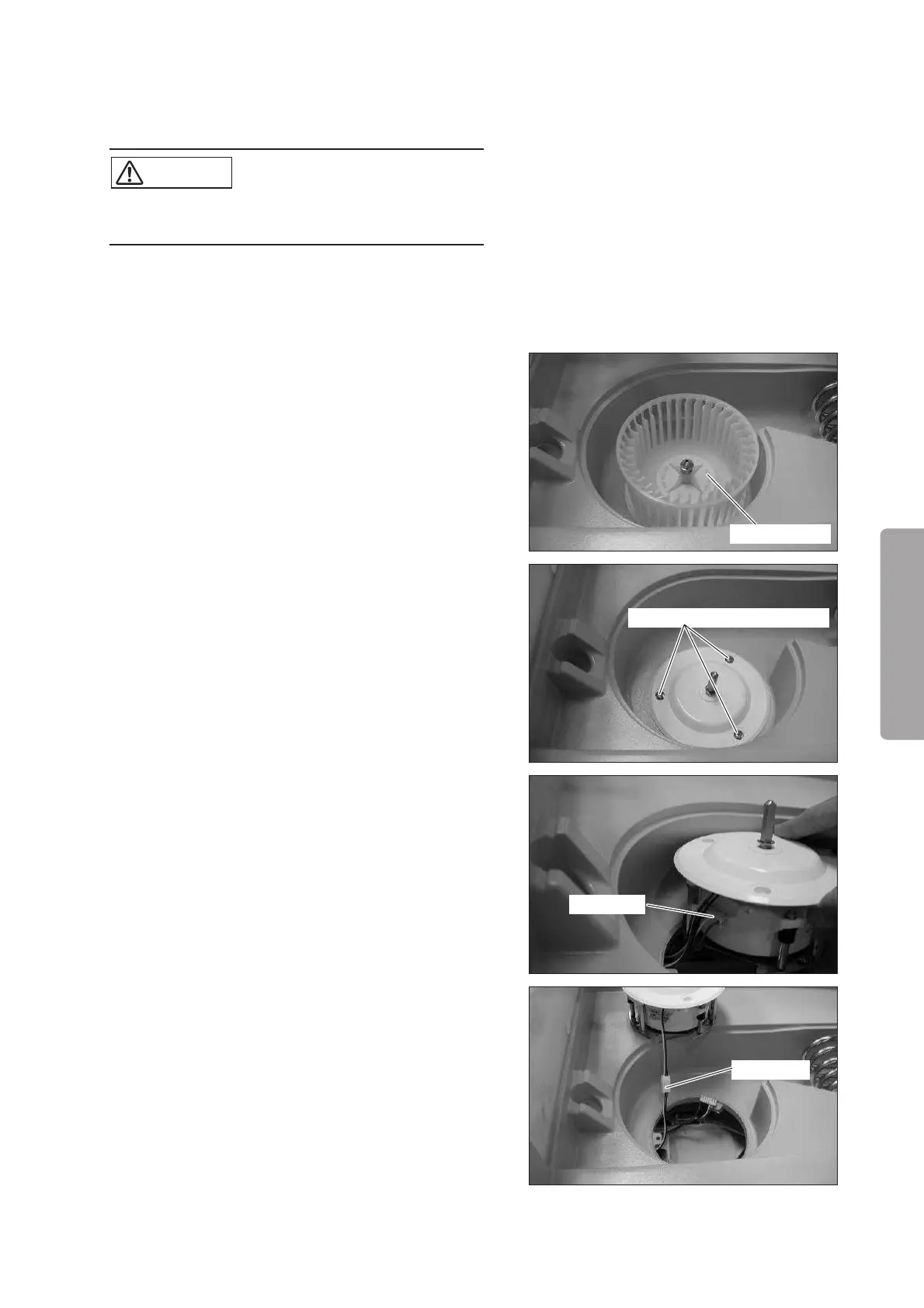

6-3-3. Replacing the Motor
(1) Remove the fan.
Hold the fan with both your hands and pull it out
along the motor shaft.
Fan assembly
Double sems screw (M4x15)
Connector
Connector
(2) Remove the screws fixing the motor.
Remove the three protective stickers and then re-
move the three double sems screws (M4 x 15) with
a Phillips screwdriver.
(3) Pull up the motor toward you while turning it coun-
terclockwise slightly.
Remove the connectors of the motor and the posi-
tion detection board.
Remove the packing from the site where the motor
is attached on the main body.
