Disassembly and Replacement Procedures
106
6-2-11. Replacing the Inner Wall Bearing
(1) Remove the inner wall.
See (1) ~ (2) in “6-2-10. Replacing the Inner Wall
(for the Incu
i
).”
(2) Remove the admittance panel hinge (with X-ray cas-
sette tray door).
See (1) ~ (3) in “6-2-6. Replacing the Admittance
Panel Hinge (with X-ray Cassette Tray Door). “

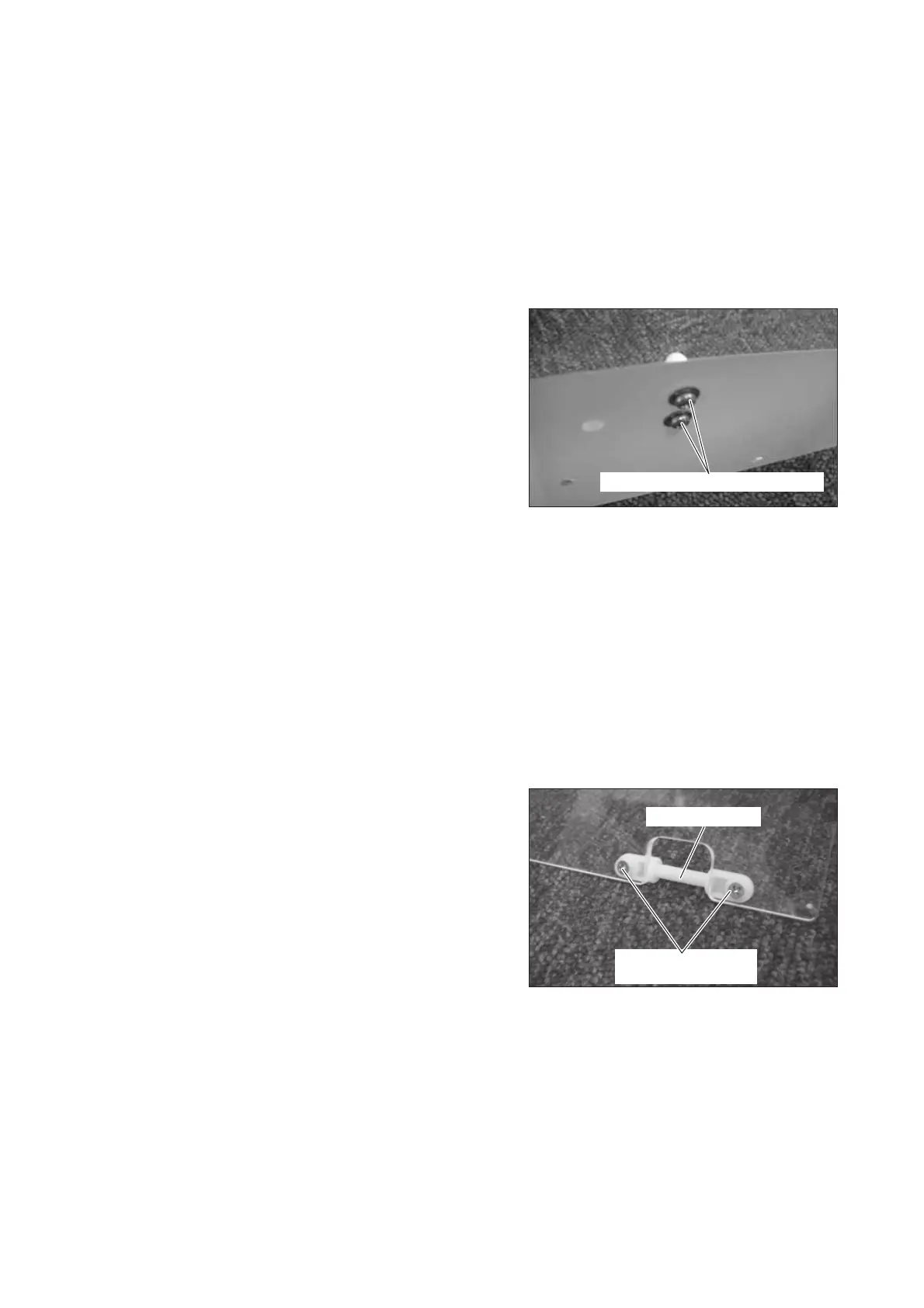

(3) Remove the inner wall bearing.
Remove the two pan head tapping screws (M3 x 8)
with a Phillips screwdriver.
Slide the inner wall bearing and remove it from the
admittance panel.
(Larger plain washers (M3) are attached to the pan
head tapping screws. Be careful not to let the wash-
ers come off when assembling the inner wall bear-
ing.)
(4) Follow the same procedure mentioned above to re-
move the inner wall bearings on the other inner wall.
(5) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-2-12. Replacing the Inner Wall Shaft
(1) Remove the inner wall.
See (1) ~ (2) in “6-2-12. Replacing the Inner Wall
(for the Incu
i
).”
(2) Remove the inner wall shaft.
Remove the two flat head tapping screws (M3 x 8)
with a Phillips screwdriver.
Pan head tapping screw (M3x8)
Flat head tapping
screw (M3x8)
Inner wall shaft
(3) Follow the same procedure mentioned above to re-
move the inner wall shafts on the other inner wall.
(4) Reassembly: Reassemble in the reverse order of dis-
assembly.
